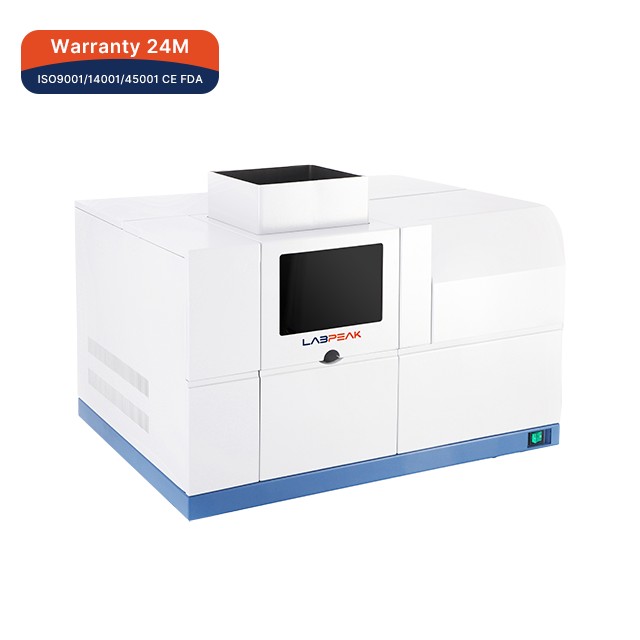

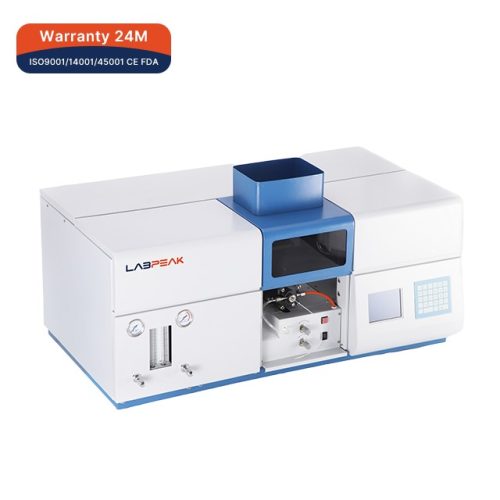

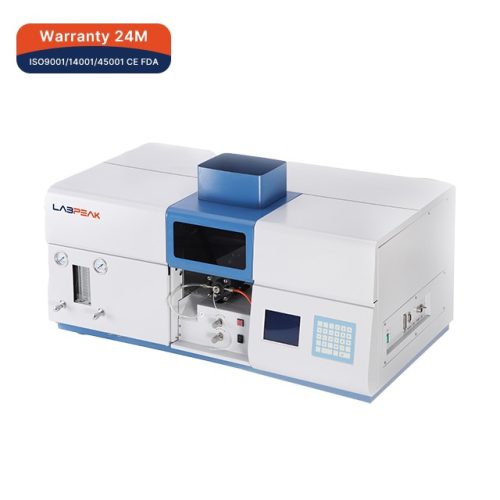

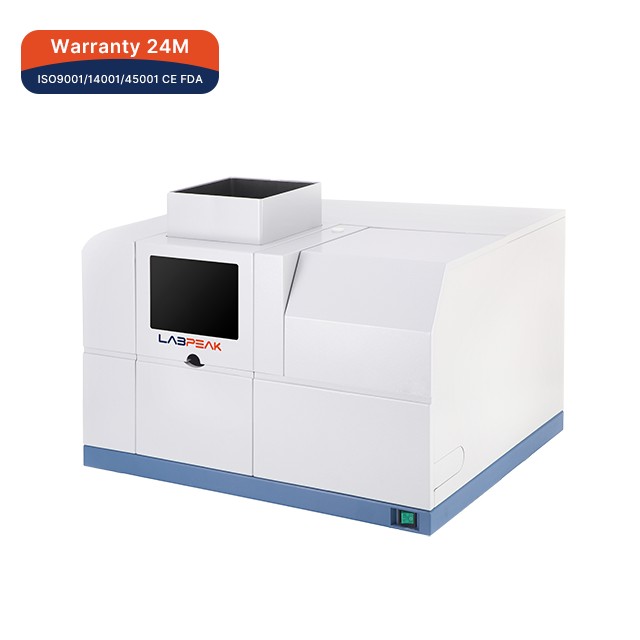

Atomic Absorption Spectrophotometer

Specifications

Model

SPL-PAA4530

Wavelength Range

190-900nm

Size (W×D×H)(mm)

730×625×700

Accuracy of the Wavelength

±0.15nm

Receptivity of the Wavelength

≤0.04nm

Full specification sheet

• Model: SPL-PAA4530
• Wavelength Range: 190-900nm
• Spectral Bandwidth: 0.1/0.2/0.4/1.0/2.0 nm
• Accuracy of the Wavelength: ±0.15nm
• Receptivity of the Wavelength: ≤0.04nm
• Base Line Stability: ≤0.002A/30min (Cu)
• Characteristic Viscosity: 0.02μg/ml/1% (Cu)
• Checking Limit: 0.004μg/ml (Cu)
• Preciseness: 0.005
• Grating: 1800 lines/mm
• Inflamer: All-metal titanium burner
• Atomizer: Effective glass atomizer
• Lamp Stand: 8
• D2 Background Correction Ability: When the background is 1A, the background ability should be deducted not less than 50 times, self absorption background deduction method
• Power Source: 220V±22V AC
• Shipping Size(W×D×H)(mm): 860×705×755(Main instrument)
• Shipping Size(W×D×H)(mm): 1170×645×900(Accessories)
• G.W. (kg): 105 (Main instrument); 100 (Accessories)
• G.W. (kg): Flame System
• Acetylene Air Burner: 100mm
• Lgnition Dynamic Baseline Drift: ≤0.006A/30min
• (Cu) Characteristic Viscosity: ≤0.025μg/ml/1%
• Related Standard Deviation of the Accuracy: ≤0.5% (Cu, absorbance>0.8A) (detection limit Cu≤0.008μg/ml)
• Safety System: Can automatically cut off the gas when the pressure is not enough the power is off flame out and unconformity of the burner
• Safety System: Furnace
• The Highest Temperature: 3000℃
• The Largest Temperature Rising Speed: ≥2000℃/s
• Characteristic Quantity: Cd≤0.5×10-12g Cu≤0.5×10-11g
• Accuracy: Cu≤3% Cd≤3%
• Size (mm) and Weight: 730×625×700; 79.3kg
• Safety System: Over current protection
• Safety System: Low air pressure alarm/protection
• Safety System: Low cooling water flow alarm/protection
• Power Source and Power: 220V±22V AC 7000W
