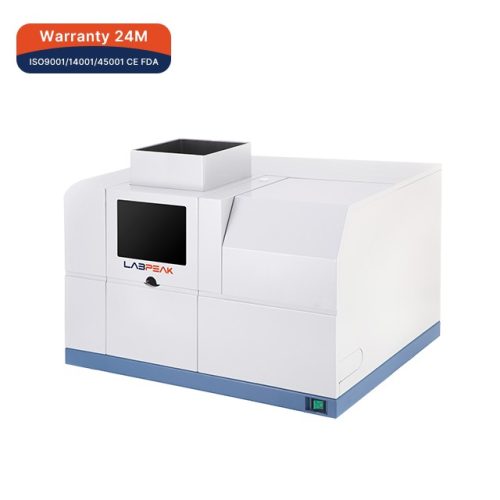

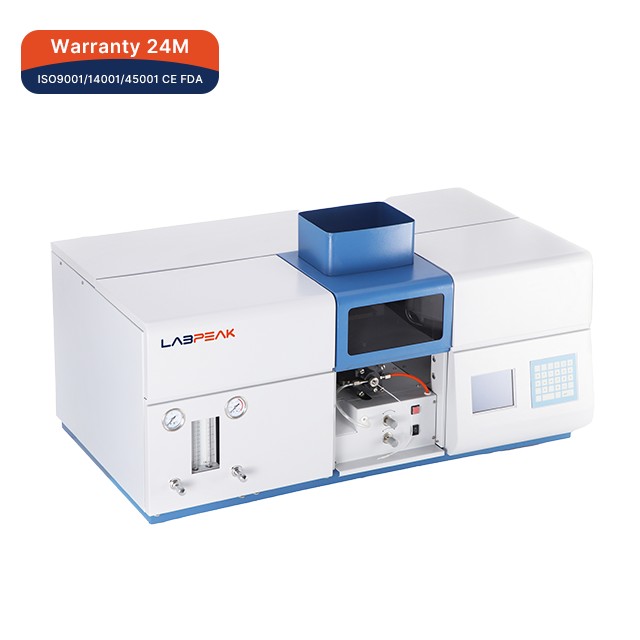

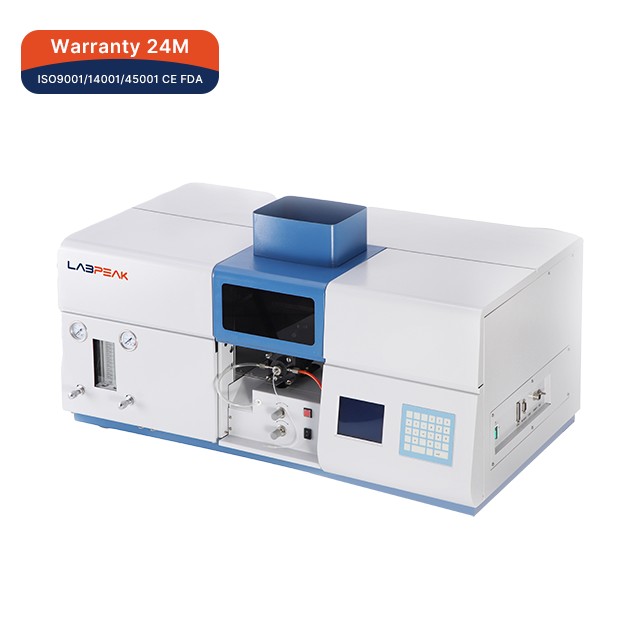

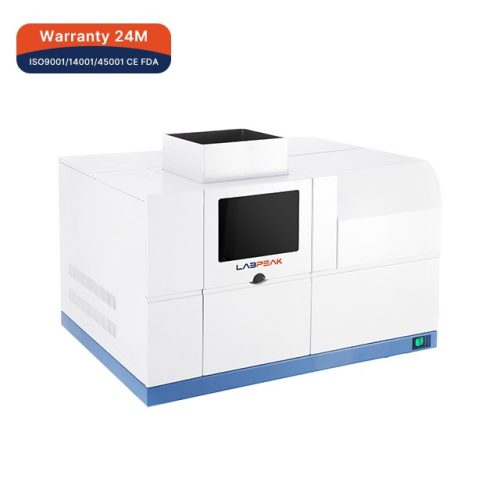

Atomic Absorption Spectrophotometer SPL-PAA320

Specifications

Model

SPL-PAA320

Wavelength Range

190-900nm

Size (W×D×H) (mm)

1250×795×765 (main instrument)

Wavelength Accuracy

≤±0.5nm

Wavelength Receptivity

≤ 0.3 nm (single direction)

Full specification sheet

• Model: SPL-PAA320
• WL Range: 190-900nm
• WL Accuracy: ≤±0.5nm
• WL Repeatability: ≤0.3nm (single direction)
• Spectrum Bandwidth: 0.2nm/0.4nm/0.7nm/1.4nm/2.4nm/5.0nm
• Resolution: ≤40%
• Base Line Stability: ±0.004Abs/30min
• Characteristic Concentration of Cooper: ≤ 0.04μg/ml/1%
• Detection Limit of Copper: ≤0.08μg/ml
• Background Calibration Ability: Greater than 30 times
• RS232: Including
• Printer: Optional
• Electricity: 220V, 3A, 50Hz
• Power: 200W
• Shipping Size(W×D×H)(mm): 1250x795x765 (Main instrument)
• Shipping Size(W×D×H)(mm): 545x445x1385 (Accessories)
• G.W. (kg): 138 (Main instrument), 56 (Accessories)
