Benchtop Freeze Dryer, FDL-P 10 Series

This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.

Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.

Reliability:

Specifications

Model: FDL-P10S; FDL-P10P; FDL-P10T; FDL-10PT
Tray Size (ΦxH)(mm): Φ200×20
Freeze Drying Area (m2): 0.12 / 0.12 / 0.09 / 0.09
Condenser Size (DiameterxH)(mm): Φ215×190
Vacuum Degree (no-loading) (Pa): ≤5

Full specification sheet

Model [FDL-P10S]: FDL-P10S
Model [FDL-P10P]: FDL-P10P
Model [FDL-P10T]: FDL-P10T
Model [FDL-P10PT]: FDL-P10PT

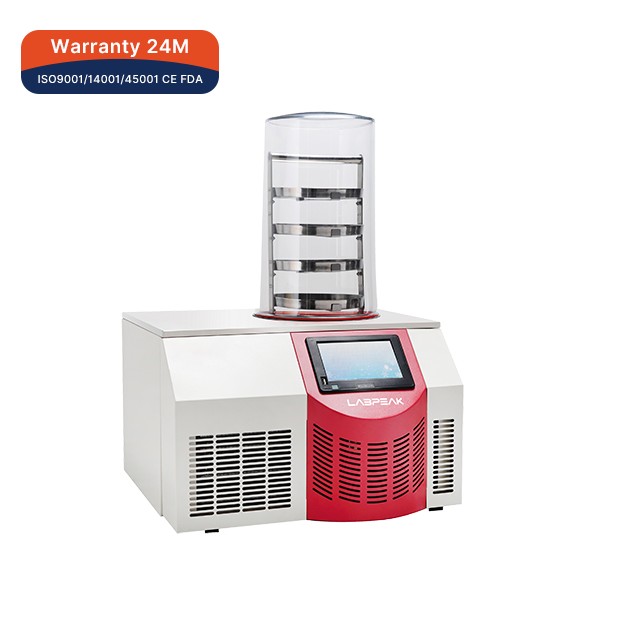

Type [FDL-P10S]: Standard chamber

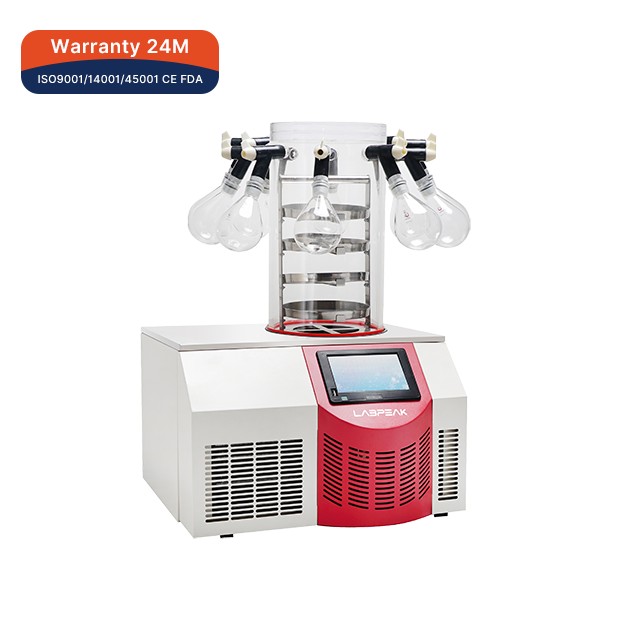

Type [FDL-P10P]: Standard chamber with 8 port manifold

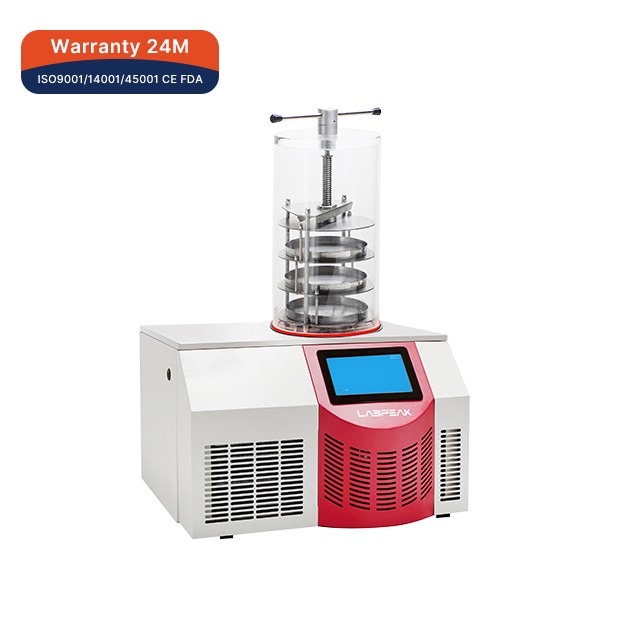

Type [FDL-P10T]: Stoppering chamber

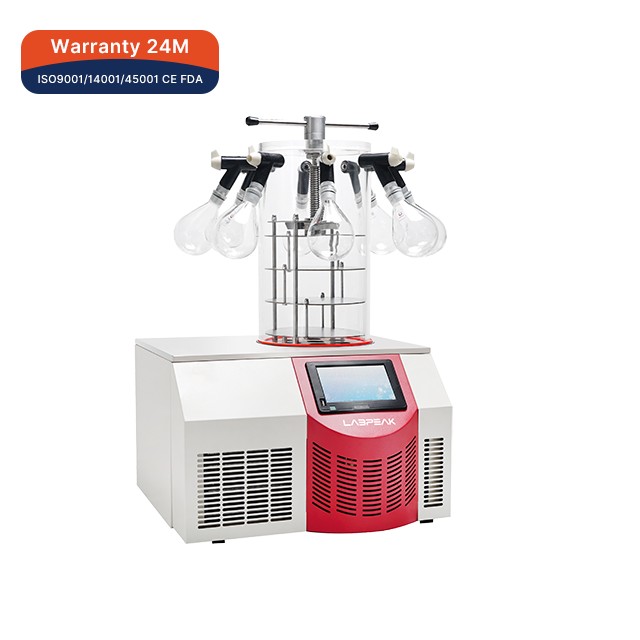

Type [FDL-P10PT]: Stoppering chamber with 8 port manifold
Freeze Drying Area (m2) [UNVERIFIED — 2 values, 4 models, check manually]: 0.12 | 0.09
Tray (Qty) [UNVERIFIED — 2 values, 4 models, check manually]: 4/6 (optional) pcs | 3pcs
Tray Size (ΦxH)(mm) [UNVERIFIED — 2 values, 4 models, check manually]: Φ200×20 | Φ200×20
Height Between Trays (mm) [UNVERIFIED — 2 values, 4 models, check manually]: 76/50 | 70(average)
Condenser Temperature (℃) [FDL-P10S]: -60
Condenser Temperature (℃) [FDL-P10P]: -60
Condenser Temperature (℃) [FDL-P10T]: -60
Condenser Temperature (℃) [FDL-P10PT]: -60
Condenser Capacity (L) [FDL-P10S]: 6.5
Condenser Capacity (L) [FDL-P10P]: 6.5
Condenser Capacity (L) [FDL-P10T]: 6.5
Condenser Capacity (L) [FDL-P10PT]: 6.5
Condenser Size (D x H) (mm) [FDL-P10S]: Φ215×190
Condenser Size (D x H) (mm) [FDL-P10P]: Φ215×190
Condenser Size (D x H) (mm) [FDL-P10T]: Φ215×190
Condenser Size (D x H) (mm) [FDL-P10PT]: Φ215×190
Vacuum Degree (No-loading) (Pa) [FDL-P10S]: ≤5
Vacuum Degree (No-loading) (Pa) [FDL-P10P]: ≤5
Vacuum Degree (No-loading) (Pa) [FDL-P10T]: ≤5
Vacuum Degree (No-loading) (Pa) [FDL-P10PT]: ≤5
Ice Condensing Capacity (kg/24h) [FDL-P10S]: 3
Ice Condensing Capacity (kg/24h) [FDL-P10P]: 3
Ice Condensing Capacity (kg/24h) [FDL-P10T]: 3
Ice Condensing Capacity (kg/24h) [FDL-P10PT]: 3
Loading Capacity/Shelf (mL) [FDL-P10S]: 300
Loading Capacity/Shelf (mL) [FDL-P10P]: 300
Loading Capacity/Shelf (mL) [FDL-P10T]: 300
Loading Capacity/Shelf (mL) [FDL-P10PT]: 300
Total Loading Capacity (mL) [FDL-P10S]: 1200
Total Loading Capacity (mL) [FDL-P10P]: 1200
Total Loading Capacity (mL) [FDL-P10T]: 900
Total Loading Capacity (mL) [FDL-P10PT]: 900
Drying Chamber Size (Standard): Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
Total Qty. of Vial Φ22 [UNVERIFIED — 2 values, 4 models, check manually]: 260 | 195
Total Qty. of Vial Φ16 [UNVERIFIED — 2 values, 4 models, check manually]: 480 | 360
Total Qty. of Vial Φ12 [UNVERIFIED — 2 values, 4 models, check manually]: 920 | 690
Refrigerant Type: CFC-free
Standard Accessories: Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes)
Standard Accessories: Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs (only for model 1P/PT)
Optional Function & Accessories: Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
Optional Function & Accessories: 800mL wide-mouth flask (only for model 1P/PT)
Consumption: 0.85kW
Electricity: AC220V, 50Hz(standard), other electricity type can be customized
External Size (WxDxH)(mm) [UNVERIFIED — 2 values, 4 models, check manually]: 600x540x374/820 | 600x540x374/880
Shipping Size (WxDxH)(mm) Main Body: 670x700x560
Drying Chamber: 410x410x640
Vacuum Pump: 220x580x370
Gross Weight: 110kg
Stopper chamber [UNVERIFIED — 2 values, 4 models, check manually]: Standard stopper with 8 port manifolds | Standard chamber with 8 manifolds
Standard chamber [UNVERIFIED — 2 values, 4 models, check manually]: Stainless steel with 8 port manifolds | Valve and freeze drying bottle
Lsolation valve [UNVERIFIED — 2 values, 4 models, check manually]: 24 EA drying shelf | Stainless steel drying chamber
