LABPEAKBiological Safety Cabinets & Laminar Flow

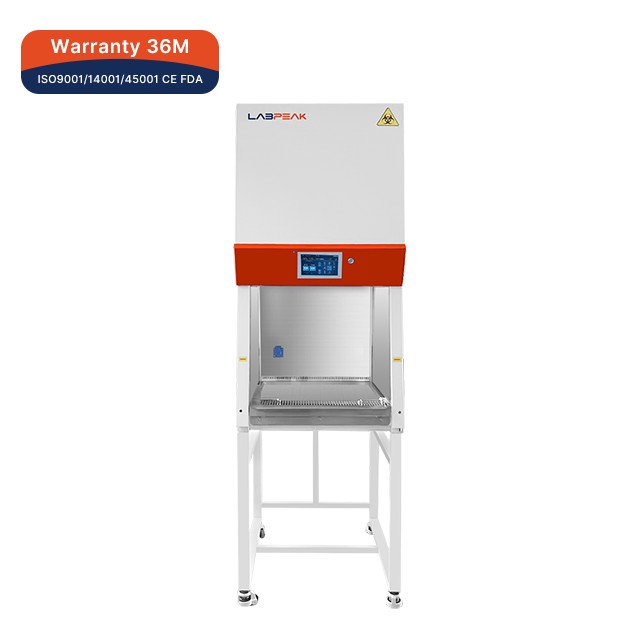

Biological Safety Cabinet Class II A2
The biological safety cabinet class II A2 operates efficiently and safely in everyday applications. It features outstanding design and advanced technology, including patented airflow design for superior protection, ergonomic design for a safe and comfortable environment, and excellent energy efficie
Specifications
- Model
- BSC-IIA2-LP710
- Inflow Velocity
- 0.52 m/s±0.025m/s
- Downflow Velocity
- 0.35 m/s ± 0.025 m/s
- Work Surface Height
- 750mm
Full specification sheet
- Model: BSC-IIA2-LP710
- Internal Size (W×D×H)(mm): 610×550×600
- External Size (W×D×H)(mm): 710x760x1430 (Without base stand), 710x760x2050 (With base stand)
- Max.Opening: 370mm
- Work Surface Height: 750mm
- Control System Display: 7″ LCD touch screen
- Airflow System Alarm: Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height

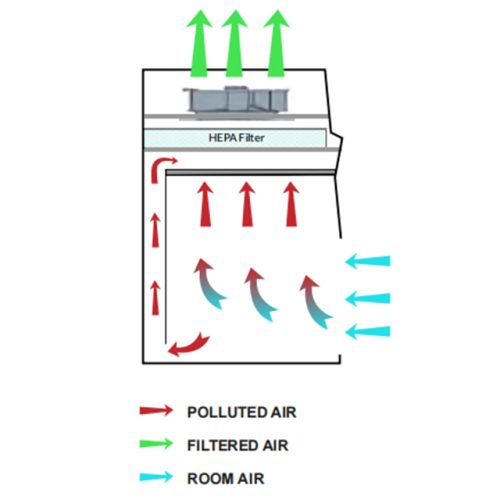

- Airflow Mode: 70% air recirculation, 30% air exhaust
- Downflow Velocity: 0.35m/s±0.025m/s
- Inflow Velocity: 0.52 m/s±0.025m/s
- Inflow Air Volume: 240m³/h (141CFM)
- Downflow Air Volume: 560m³/h (330CFM)
- Exhaust Air Volume: 240m³/h (141CFM)
- Air filtration System HEPA Filter: 2pcs H14 HEPA filter, ≥99.995% efficiency at 0.3μm
- Cleanliness Grade: Class 100 (ISO14644.1 Class 5)
- Cabinet Construction Main Body: Electro-galvanized steel with antimicrobial powder coating
- Work Surface: 304 stainless steel
- Front Window: Motorized, toughened glass
- Electrical System UV Lamp: 15W×1 (Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer)
- LED Lamp: 10W×2
- Max.Consumption: 350W (not including socket consumption)
- Power Supply: AC220V±10%, 50/60Hz; 110V±10%, 60Hz
- Illumination: ≥900Lux
- Sound Emission: ≤65dB(A)
- Vibration of Work Surface: ≤2μm
- Standard Accessory: 1. Air Velocity Sensor;
- Standard Accessory: 2. LCD Touch Screen;
- Standard Accessory: 3. LED Lamp×2;
- Standard Accessory: 4. UV Lamp×1;
- Standard Accessory: 5. Explosion-Proof/Waterproof Socket × 1;
- Standard Accessory: 6. Motorized Front Window;
- Standard Accessory: 7. Footmaster Caster;
- Standard Accessory: 8. Foot Switch;
- Standard Accessory: 9. Removable shallow-plate stainless steel work surface;
- Optional Accessory: 1. Base Stand;
- Optional Accessory: 2. Gas tap;
- Optional Accessory: 3. Water tap;
- Optional Accessory: 4. Pressure Sensor;
- Optional Accessory: 5. IV Bar With Hooks;
- Optional Accessory: 6. ULPA filter;
- Optional Accessory: 7. Upgraded LED Lamp;
- Net Weight: 130kg (Without base stand), 140kg (With base stand)
- Gross Weight: 165kg (Without base stand), 175kg (With base stand)
- Shipping Size (W×D×H)(mm): 850×990×1640
- Shipping Volume: 1.4 m³
