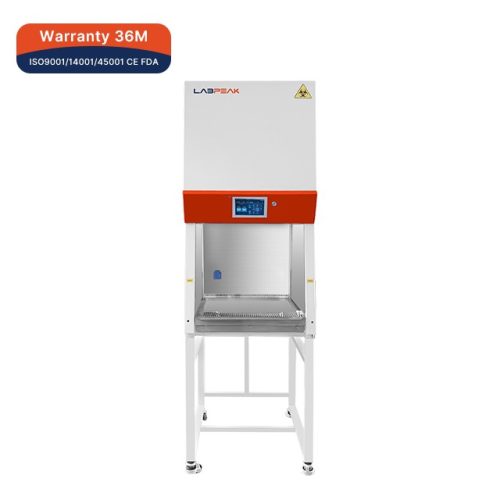

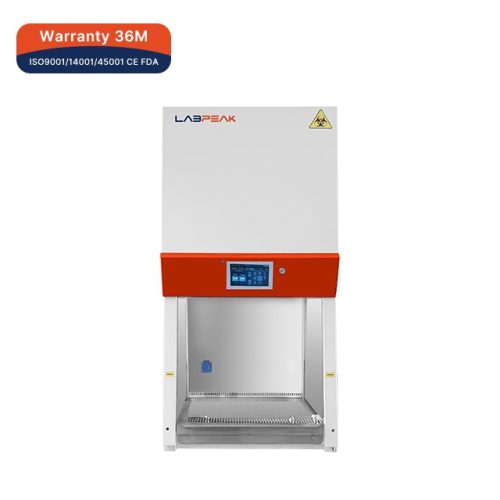

Class I Biological Safety Cabinet H-Series
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
A Class I biological safety cabinet is designed for use in biosafety and general laboratories. It is typically used for handling low-risk biological materials where product protection is not required. The cabinet provides protection for the operator and the surrounding environment.
Specifications
- Model
- BSC-I-LP800H; BSC-I-LP1100H; BSC-I-LP1300H; BSC-I-LP1500H; BSC-I-LP1800H
- Interlock
- Audio and visual alarm (abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height)
- Max Opening
- 350 mm
- Work Surface Height
- 730 mm
- Control System Display
- 7” LCD touch screen
Full specification sheet
- Model [BSC-I-LP800H]: BSC-I-LP800H
- Model [BSC-I-LP1100H]: BSC-I-LP1100H
- Model [BSC-I-LP1300H]: BSC-I-LP1300H
- Model [BSC-I-LP1500H]: BSC-I-LP1500H
- Model [BSC-I-LP1800H]: BSC-I-LP1800H
- External Size (W×D×H)(mm) [BSC-I-LP800H]: 800×760×1880
- External Size (W×D×H)(mm) [BSC-I-LP1100H]: 1100×760×1880
- External Size (W×D×H)(mm) [BSC-I-LP1300H]: 1300×760×1880
- External Size (W×D×H)(mm) [BSC-I-LP1500H]: 1500×760×1880
- External Size (W×D×H)(mm) [BSC-I-LP1800H]: 1800×760×1880
- Internal Size (W×D×H)(mm) [BSC-I-LP800H]: 700×630×550
- Internal Size (W×D×H)(mm) [BSC-I-LP1100H]: 1000×630×550
- Internal Size (W×D×H)(mm) [BSC-I-LP1300H]: 1200×630×550
- Internal Size (W×D×H)(mm) [BSC-I-LP1500H]: 1400×630×550
- Internal Size (W×D×H)(mm) [BSC-I-LP1800H]: 1700×630×550
- Work Surface Height: 730 mm
- Max Opening: 350 mm
- Control System Display: 7”LCD touch screen
- Interlock: Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height)
- Airflow System Airflow Velocity: 0.3–0.5m/s, speed adjustable
- Air Volume [BSC-I-LP800H]: 832 m³/h (490CFM)
- Air Volume [BSC-I-LP1100H]: 1188 m³/h (699CFM)
- Air Volume [BSC-I-LP1300H]: 1426 m³/h (839CFM)
- Air Volume [BSC-I-LP1500H]: 1663 m³/h (979CFM)
- Air Volume [BSC-I-LP1800H]: 2020 m³/h (1189CFM)
- Air filtration System Pre-Filter: 1pcs, polyester fiber, washable, filtration efficiency: G3
- HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3 μm
- Cleanliness Grade: Class 100 (ISO14644.1 Class 5)

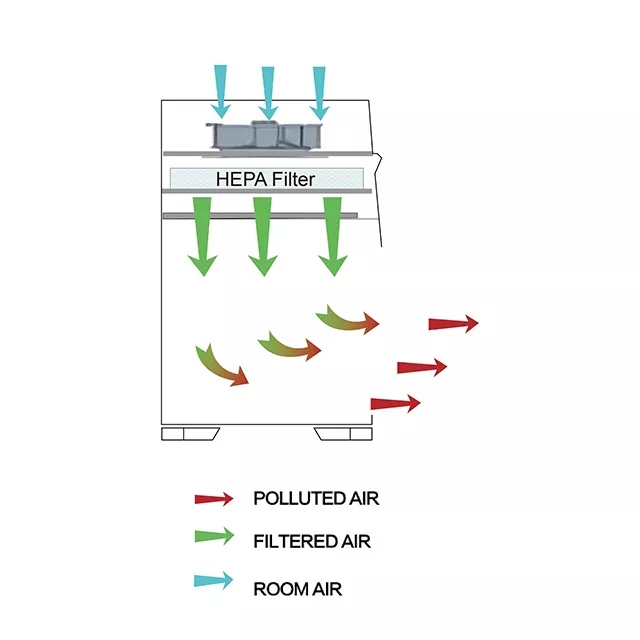

- Partial air circulation: Perforations at the back wall of the work zone and negative pressure channel, which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
- Cabinet Construction Main Body: Electro-Galvanized steel with antimicrobial powder coating
- Work Surface: 304 Stainless Steel
- Front Window: Automatic motorized door, tempered glass, Thickness: 5mm
- Side Window: 5 mm UV resistant tempered glass
- Electrical System [UNVERIFIED — 4 values, 5 models, check manually]: UV Lamp | 8 W×1 | 30 W×1 | 40 W×1
- Electrical System: Emission of 253.7 nanometers for best sterilization effect
- LED Lamp [UNVERIFIED — 3 values, 5 models, check manually]: 8 W×1 | 10 W×1 | 20 W×1
- Max.Consumption [UNVERIFIED — 3 values, 5 models, check manually]: 350 W | 360 W | 370 W
- Max.Consumption: Not include socket loading power consumption
- Power Supply: AC 220 V±10%, 50/60 HZ; 110 V±10%, 60 Hz
- Illumination: ≥600 Lux
- Sound Emission: ≤64 dB(A)
- Standard Accessory: 1. Air Velocity Sensor×1;
- Standard Accessory: 2. Pre-Filter×1;
- Standard Accessory: 3. HEPA Filter×1;
- Standard Accessory: 4. Waterproof Socket×2;
- Standard Accessory: 5. LED Lamp×1;
- Standard Accessory: 6. UV Lamp×1;
- Standard Accessory: 7. Base Stand.
- Optional Accessory: 1. Foot Switch;
- Optional Accessory: 2. Water Tap;
- Optional Accessory: 3. Gas Tap;
- Optional Accessory: 4. Differential Pressure Sensor;
- Optional Accessory: 5. Manually Adjustable Base Stand;
- Optional Accessory: 6. Upgraded LED Lamp;
- Optional Accessory: 7. IV Bar with Hooks.
- G.W.t (kg) [BSC-I-LP800H]: 190
- G.W.t (kg) [BSC-I-LP1100H]: 220
- G.W.t (kg) [BSC-I-LP1300H]: 250
- G.W.t (kg) [BSC-I-LP1500H]: 280
- G.W.t (kg) [BSC-I-LP1800H]: 330
- Shipping Size (W×D×H)(mm) [BSC-I-LP800H]: 950×1060×1630
- Shipping Size (W×D×H)(mm) [BSC-I-LP1100H]: 1250×1060×1630
- Shipping Size (W×D×H)(mm) [BSC-I-LP1300H]: 1450×1060×1630
- Shipping Size (W×D×H)(mm) [BSC-I-LP1500H]: 1650×1060×1630
- Shipping Size (W×D×H)(mm) [BSC-I-LP1800H]: 1950×1060×1630
- Shipping Volume (m³) [BSC-I-LP800H]: 1.7
- Shipping Volume (m³) [BSC-I-LP1100H]: 2.2
- Shipping Volume (m³) [BSC-I-LP1300H]: 2.5
- Shipping Volume (m³) [BSC-I-LP1500H]: 2.9
- Shipping Volume (m³) [BSC-I-LP1800H]: 3.4
