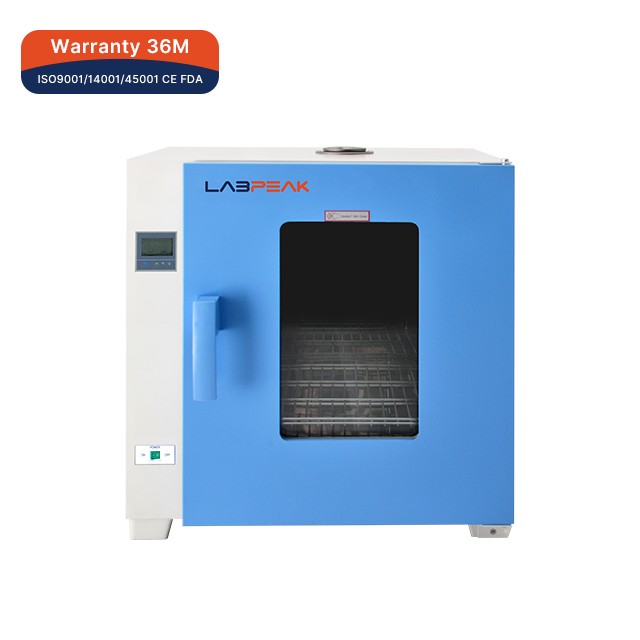

Constant Temperature Drying Oven N Series
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- TDOL-PN45D; TDOL-PN45; TDOL-PN70D; TDOL-PN70; TDOL-PN140D; TDOL-PN140; TDOL-PN220D; TDOL-PN270;
- Timer
- 0~9999 min
- Capacity
- 42 / 70 / 135 / 137 / 224 270
- Circulation Mode
- Natural convection
- Temperature Range
- 50~200 ℃
Full specification sheet
- Model [TDOL-PN45D]: TDOL-PN45D
- Model [TDOL-PN45]: TDOL-PN45
- Model [TDOL-PN70D TDOL-PN70]: TDOL-PN70D TDOL-PN70
- Model [TDOL-PN140D TDOL-PN140]: TDOL-PN140D TDOL-PN140
- Model [TDOL-PN220D TDOL-PN270]: TDOL-PN220D TDOL-PN270
- Capacity(L) [TDOL-PN45D]: 42
- Capacity(L) [TDOL-PN45]: 42
- Capacity(L) [TDOL-PN70D TDOL-PN70]: 70
- Capacity(L) [TDOL-PN140D TDOL-PN140]: 135/137
- Capacity(L) [TDOL-PN220D TDOL-PN270]: 224/270
- Internal circulation method: Natural convection
- Size(WxDxH) [UNVERIFIED — 6 values, 5 models, check manually]: Internal (mm) | 350×348×350 | 350×350×350 | 450×348×450 400×390×450 | 550×448×550 500×500×550 | 600×498×750 600×600×750
- External (mm) [TDOL-PN45D]: 620×40×650
- External (mm) [TDOL-PN45]: 635×615×552
- External (mm) [TDOL-PN70D TDOL-PN70]: 680×653×631
- External (mm) [TDOL-PN140D TDOL-PN140]: 830×665×772
- External (mm) [TDOL-PN220D TDOL-PN270]: 930×765×972
- Temperature Range: 50~200 ℃
- Fluctuation: ±1 ℃
- Resolution: 0.1 ℃
- Uniformity: ≤ Max operating temperature ±3.5%
- Security alarm: Over temperature alarm, temperature probe damage alarm
- Timer: 0~9999 min
- Shelves (Standard) [TDOL-PN45D]: 2
- Shelves (Standard) [TDOL-PN45]: 2
- Shelves (Standard) [TDOL-PN70D TDOL-PN70]: 2
- Shelves (Standard) [TDOL-PN140D TDOL-PN140]: 3
- Shelves (Standard) [TDOL-PN220D TDOL-PN270]: 3
- Safety Device: Over temperature alarm, temperature probe damage alarm
- Electricity Voltage/Frequency: 220/110 V, 50/60 HZ
- Consumption (W) [TDOL-PN45D]: 1200
- Consumption (W) [TDOL-PN45]: 850
- Consumption (W) [TDOL-PN70D TDOL-PN70]: 1600/1000
- Consumption (W) [TDOL-PN140D TDOL-PN140]: 2000
- Consumption (W) [TDOL-PN220D TDOL-PN270]: 3000
- G.W. (kg) [TDOL-PN45D]: 54
- G.W. (kg) [TDOL-PN45]: 54
- G.W. (kg) [TDOL-PN70D TDOL-PN70]: 72/72
- G.W. (kg) [TDOL-PN140D TDOL-PN140]: 95/86
- G.W. (kg) [TDOL-PN220D TDOL-PN270]: 136/125
- Shipping Size (W×DxH) (mm) [TDOL-PN45D]: 710×570×780
- Shipping Size (W×DxH) (mm) [TDOL-PN45]: 710×570×780
- Shipping Size (W×DxH) (mm) [TDOL-PN70D TDOL-PN70]: 810×670×860 810×670×860
- Shipping Size (W×DxH) (mm) [TDOL-PN140D TDOL-PN140]: 920×740×970 920×750×700
- Shipping Size (W×DxH) (mm) [TDOL-PN220D TDOL-PN270]: 1020×870×1180 1020×850×1110
- Type: TDO-ND: Glass inner door, outer door without observation window;
- Type: TDO-N: Without glass inner door, outer door observation window.
- Optional: TDO-N: LCD screen temperature controller, LCD screen temperature controller+ micro dot matrix printer or RS485 communication serial port.
