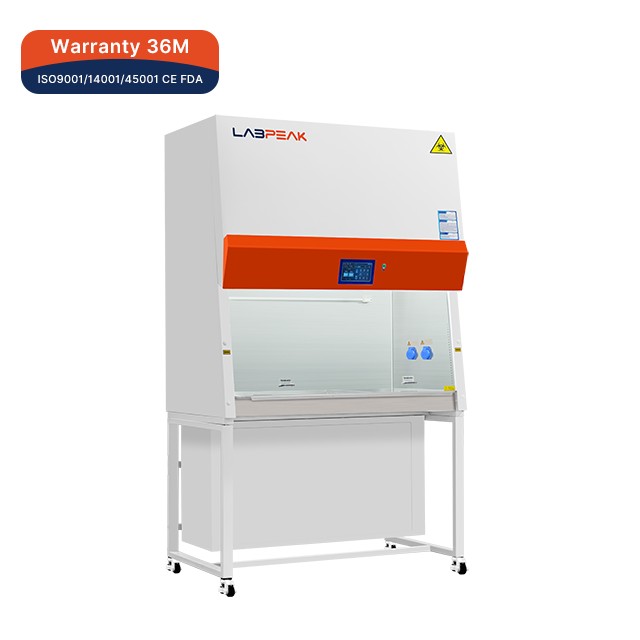

Cytotoxic Safety Cabinet

Specifications

Model

BSC-II-LP1800C

Display

LCD display

Full specification sheet

• Model: BSC-II-LP1800C
• External Size (W×D×H)(mm): 1880×760×2100
• Internal Size (W×D×H)(mm): 1700×600×630
• Tested Opening: Safety height 200 mm (8″)
• Max Opening: 440 mm
• Work Surface Height: 800 mm
• Control System Display: 7 inch LCD Touch Screen, Microprocessor;
• Control System: Humidity and temperature can be displayed on the control panel.
• Alarm: Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm
• Airflow System Downflow Velocity: 0.33m/s±0.025m/s
• Inflow Velocity: 0.53m/s±0.025m/s
• Exhaust Air Volume: 648 m³/h
• Air filtration System Supply Filter: ULPA filter, efficiency>99.9995% for particle size at 0.1–0.3 μm
• Exhaust Filter: ULPA filter: first exhaust filter: 0.1–0.3 μm efficiency 99.9995%;
• Exhaust Filter: HEPA filter: secondary exhaust filter: 0.3 μm efficiency 99.995%
• Cabinet Construction Main Body: Cold-rolled steel with anti-bacteria powder coating
• Work Surface: 304 stainless steel
• Front Window: Motorized, tempered glass ≥6 mm, anti-UV
• Electrical System UV Lamp: 40W×1
• Electrical System: Emission of 253.7 nanometers for most efficient decontamination UV life indicator, UV timer
• LED Lamp: 16W×2
• Waterproof Socket: Two, total load of two sockets: ≤500W
• Consumption: 1300 W
• Consumption: Not include socket loading power consumption
• Power Supply: AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz
• Illumination: ≥1000 Lux
• Sound Emission: ≤67 dB
• Standard Accessory: 1. Base Stand
• Standard Accessory: 2. Drain Valve;
• Standard Accessory: 3. Waterproof Sockets×2;
• Standard Accessory: 4. LED Lamp×2;
• Standard Accessory: 5. UV Lamp×1;
• Standard Accessory: 6. Water Tap×1;
• Standard Accessory: 7. Gas Tap×1;
• Standard Accessory: 8. Footmaster Caster;
• Standard Accessory: 9. Air Velocity Sensor
• Gross Weight (kg): 470
• Shipping Size (W×D×H)(mm): 2060×910×2310
• Shipping Volume (m³): 4.4
