LABPEAKWater Purification

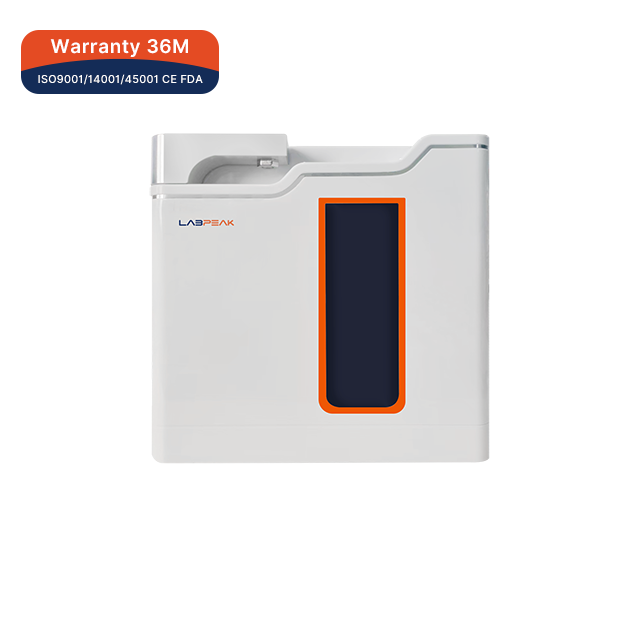

Deionized Water Purifier
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Pre-treatment unit of ultra-pure water system: supply water for biochemical analyzers, electroplating, painting, battery charging, chip washing, microbial culture media, chemical & biochemical reagent preparation, buffer making, photographic film processing, stability test chambers, meteorological t
Specifications
- Model
- WPL-PD10E; WPL-PD20E; WPL-PD30E
- Flow Rate
- 1.5–2 L/min (with pressure barrel)
- Water pressure
- 0.1–0.4 Mpa, Water temperature: 5–45 ℃
- Feed Water Request Tap water
- TDS < 200 ppm
- Water Production Capacity (L/H)
- 10, 20, 30
Full specification sheet
- Model [WPL-PD10E]: WPL-PD10E
- Model [WPL-PD20E]: WPL-PD20E
- Model [WPL-PD30E]: WPL-PD30E
- Water Production Capacity (L/H) [WPL-PD10E]: 10
- Water Production Capacity (L/H) [WPL-PD20E]: 20
- Water Production Capacity (L/H) [WPL-PD30E]: 30
- Feed Water Request: Tap water: TDS < 200 ppm, Water pressure: 0.1–0.4 Mpa, Water temperature: 5–45 ℃
- Flow Rate: 1.5–2 L/min (with pressure barrel)
- RO Water Parameter: The desalination rate reaches up to 95-99% (when using new RO membranes)
- RO Water Parameter: DI Water Parameter (ASTM Type I Grade Water)
- Resistivity (25℃): 10–16 MΩ·cm @ 25 ℃
- Conductivity: <0.1 μS/cm
- Heavy Metal Ion: <0.1 ppb
- Power Supply: 110–240 V, 50–60 Hz, 48–72 W
- External Size (W×D×H): 180×370×380 mm
- Shipping Size (W×D×H): 450×450×930 mm
- N.W/G.W: 10/27 kg
