Dispensing Booth
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.

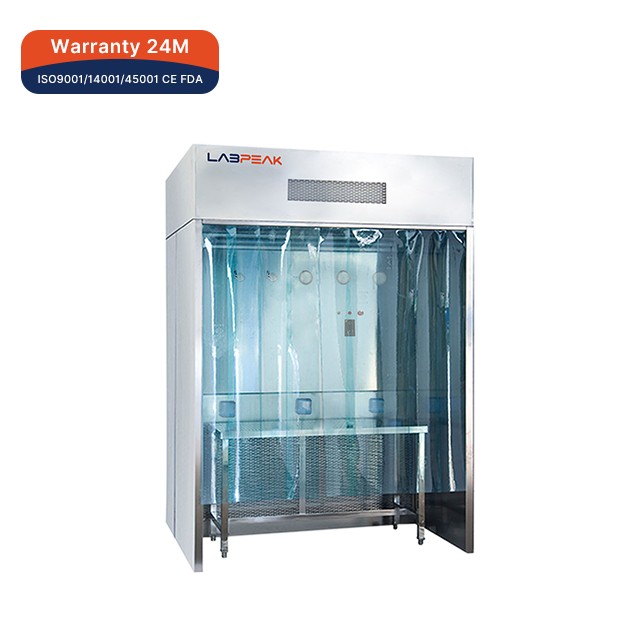

The dispensing booth is a local purification unit for pharmaceuticals, microbiology, and scientific experiments. It provides vertical, unidirectional airflow, creating negative pressure to prevent cross-contamination and maintain high cleanliness by circulating some clean air while venting the rest.
Specifications
- Model
- DB-LP1000; DB-LP1300; DB-LP1500
- Air Velocity
- 0.38-0.58 m/s
- Supply Air Volume
- 1800m³/h; 2600m³/h; 3000m³/h
- Exhaust Air Volume
- 10%~15%
- External Size(WxDxH)(mm)
- 1000x1350x2400; 1300x1350x2400; 1500x1350x2400
Full specification sheet
- Model [DB-LP1000]: DB-LP1000
- Model [DB-LP1300]: DB-LP1300
- Model [DB-LP1500]: DB-LP1500
- External Size (WxDxH)(mm) [DB-LP1000]: 1000x1350x2400
- External Size (WxDxH)(mm) [DB-LP1300]: 1300x1350x2400
- External Size (WxDxH)(mm) [DB-LP1500]: 1500x1350x2400
- Internal Size (WxDxH)(mm) [DB-LP1000]: 900x850x1950
- Internal Size (WxDxH)(mm) [DB-LP1300]: 1200x850x1950
- Internal Size (WxDxH)(mm) [DB-LP1500]: 1400x850x1950
- Air Velocity: 0.38-0.58m/s
- Supply Air Volume [DB-LP1000]: 1800m³/h
- Supply Air Volume [DB-LP1300]: 2600m³/h
- Supply Air Volume [DB-LP1500]: 3000m³/h
- Exhaust Air Volume: 10%~15%
- HEPA Filter Size (WxDxH)(mm) [DB-LP1000]: 720x590x90
- HEPA Filter Size (WxDxH)(mm) [DB-LP1300]: 1020x590x90
- HEPA Filter Size (WxDxH)(mm) [DB-LP1500]: 1220x590x90
- Clean Level: ISO 5 (Class 100)
- Illumination: ≥300 lux
- Sound Emission: ≤75dB
- Consumption [DB-LP1000]: 0.35KW
- Consumption [DB-LP1300]: 0.55KW
- Consumption [DB-LP1500]: 0.75KW
- Power Supply: AC three-phase 380V/50Hz
- Power Supply: (Optional: AC single-phase 220/110V, 50Hz)
- N.W./G.W. (kg) [DB-LP1000]: 290/320
- N.W./G.W. (kg) [DB-LP1300]: 380/420
- N.W./G.W. (kg) [DB-LP1500]: 470/520
- Shipping Size (WxDxH)(mm) [DB-LP1000]: 1200x1550x2700
- Shipping Size (WxDxH)(mm) [DB-LP1300]: 1500x1550x2700
- Shipping Size (WxDxH)(mm) [DB-LP1500]: 1700x1550x2700
- Shipping Volume (m³) [DB-LP1000]: 5.1
- Shipping Volume (m³) [DB-LP1300]: 6.3
- Shipping Volume (m³) [DB-LP1500]: 7.1
