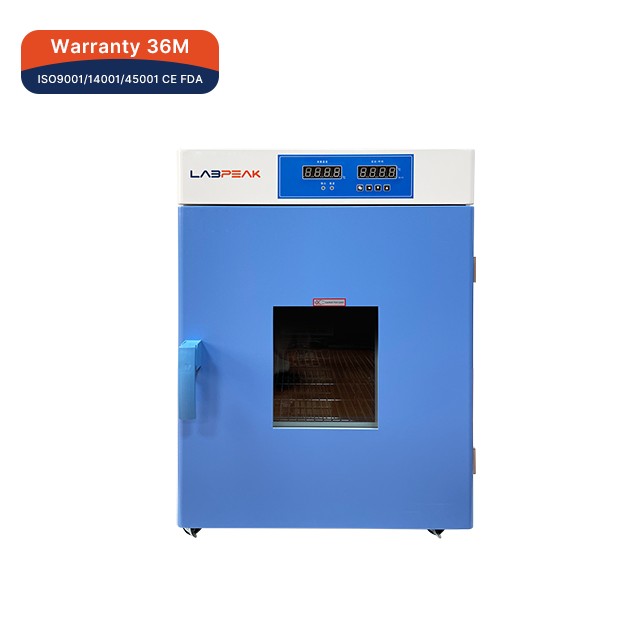

Drying Oven/Incubator (Dual-use)
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- DOIL-P50E; DOIL-P80E; DOIL-P150E; DOIL-P250E
- Incubator
- RT +5°C -80°C;
- Drying Oven
- 80-200°C
- Fluctuation
- ±0.5 ℃
- Uniformity Incubator
- ≤ ±1 ℃;
- Internal Circulation Method
- Forced convection
Full specification sheet
- Model [DOIL-P50E]: DOIL-P50E
- Model [DOIL-P80E]: DOIL-P80E
- Model [DOIL-P150E]: DOIL-P150E
- Model [DOIL-P250E]: DOIL-P250E
- Capacity (L) [DOIL-P50E]: 50
- Capacity (L) [DOIL-P80E]: 80
- Capacity (L) [DOIL-P150E]: 150
- Capacity (L) [DOIL-P250E]: 250
- Temperature Range: Incubator: RT +5℃ -80℃;
- Temperature Range: Drying oven: 80-200℃
- Size (W×D×H) [UNVERIFIED — 5 values, 4 models, check manually]: Internal(mm) | 357×356×419 | 420×416×499 | 498×500×600 | 598×582×713
- E×ternal(mm) [DOIL-P50E]: 540×615×750
- E×ternal(mm) [DOIL-P80E]: 604×674×830
- E×ternal(mm) [DOIL-P150E]: 680×771×935
- E×ternal(mm) [DOIL-P250E]: 782×855×1045
- Temperature Fluctuation: ±0.5 ℃
- Uniformity: Incubator: ≤ ±1 ℃;
- Uniformity: Drying oven: ≤ ±2.5% of the maximum working temperature
- Internal Circulation Method: Forced convection
- Security Alarm: Over-temperature alarm, temperature probe damage alarm
- Number of Shelves (pcs): 2
- Timer (min): 0-9999
- Safety Device: Leakage protector/Over-temperature alarm
- Electricity Voltage/Frequency: 220/110 V, 50/60 Hz
- Power (W) [DOIL-P50E]: 700
- Power (W) [DOIL-P80E]: 1200
- Power (W) [DOIL-P150E]: 1500
- Power (W) [DOIL-P250E]: 2000
- G.W. (kg) [DOIL-P50E]: 56
- G.W. (kg) [DOIL-P80E]: 71
- G.W. (kg) [DOIL-P150E]: 92
- G.W. (kg) [DOIL-P250E]: 116
- Shipping Size (W×D×H)(mm) [DOIL-P50E]: 600×720×900
- Shipping Size (W×D×H)(mm) [DOIL-P80E]: 670×740×990
- Shipping Size (W×D×H)(mm) [DOIL-P150E]: 740×840×1080
- Shipping Size (W×D×H)(mm) [DOIL-P250E]: 860×940×1210
- Optional: Independent external temperature protection device.
