Ducted Fume Hood
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.

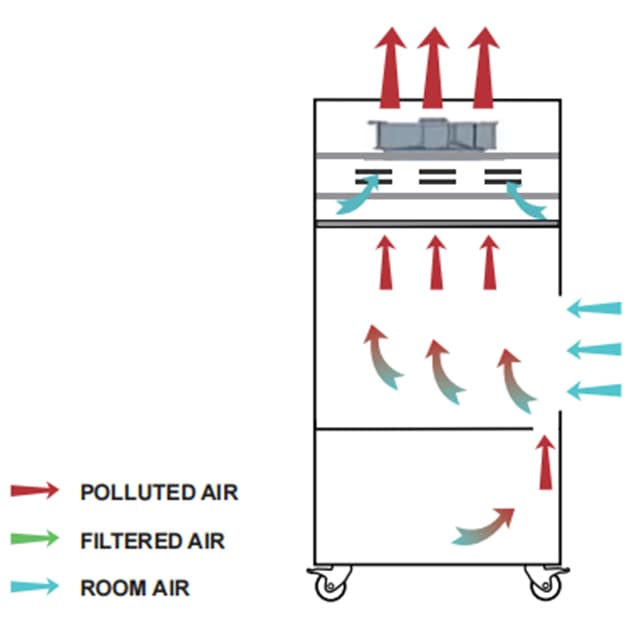

The FMH series ducted fume hood is built to keep lab workers and the environment safe. It works by pulling room air through the front opening and using a fan to continuously vent it out. This system stops harmful fumes, vapors, toxic gases, aerosols, and corrosive substances from spreading during ex
Specifications
- Model
- FMH-DA-LP1000; FMH-DA-LP1200; FMH-DA-LP1500; FMH-DA-LP1800; FMH-DA-LP1000(II); FMH-DA-LP1200(II); FMH-DA-LP1500(II); FMH-DA-LP1800(II)
- Max Opening
- 520mm
- Air Velocity
- 0.3~0.8m/s, speed adjustable
- Work Surface Height
- 850mm
Full specification sheet
- Model [FMH-DA-LP1000]: FMH-DA-LP1000
- Model [FMH-DA-LP1200]: FMH-DA-LP1200
- Model [FMH-DA-LP1500]: FMH-DA-LP1500
- Model [FMH-DA-LP1800]: FMH-DA-LP1800
- External Size (W×D×H)(mm) [FMH-DA-LP1000]: 1040×800×2200
- External Size (W×D×H)(mm) [FMH-DA-LP1200]: 1240×800×2200
- External Size (W×D×H)(mm) [FMH-DA-LP1500]: 1540×800×2200
- External Size (W×D×H)(mm) [FMH-DA-LP1800]: 1840×800×2200
- Internal Size (W×D×H)(mm) [FMH-DA-LP1000]: 820×670×730
- Internal Size (W×D×H)(mm) [FMH-DA-LP1200]: 1020×670×730
- Internal Size (W×D×H)(mm) [FMH-DA-LP1500]: 1320×670×730
- Internal Size (W×D×H)(mm) [FMH-DA-LP1800]: 1620×670×730
- Max.Opening: 520 mm
- Work Surface Height: 850 mm
- Control System Display: Microprocessor controller with LCD display, display the operating status of each function
- Airflow System Airflow Velocity: 0.3–0.8 m/s, speed adjustable
- Cabinet Construction Exterior: Electro-Galvanized steel with antimicrobial powder coating
- Interior: Compact laminate board with good acid and alkali resistance function
- Work Surface: Chemical resistant phenolic resin
- Front Window: Manual (FMH-DA series), Motorized (FMH-DA(II) series)
- Front Window: 5mm toughened glass; Height adjustable.
- Electrical System [UNVERIFIED — 5 values, 4 models, check manually]: UV Lamp | 20W×1 | 20W×1 | 30W×1 | 30W×1
- Electrical System: With timing function, interlock with front sliding sash.
- Electrical System: Emission of 253.7 nanometers for best sterilization effect.
- LED Lamp [FMH-DA-LP1000]: 6.5W×1
- LED Lamp [FMH-DA-LP1200]: 9.6W×1
- LED Lamp [FMH-DA-LP1500]: 9.6W×1
- LED Lamp [FMH-DA-LP1800]: 6.5W×2
- Blower: Built-in centrifugal blower; Speed adjustable.
- Consumption [FMH-DA-LP1000]: 400W
- Consumption [FMH-DA-LP1200]: 400W
- Consumption [FMH-DA-LP1500]: 500W
- Consumption [FMH-DA-LP1800]: 500W
- Consumption: Not include socket loading power consumption
- Power Supply: AC 220±10% V, 50/60 HZ; 110±10% V, 60Hz
- Illumination: ≥900 Lux
- Sound Emission: ≤68 dB(A)
- Standard Accessory: 1. Base Cabinet 2. UV Lamp×1; 3. LED Lamp×1; 4. Waterproof Socket×2; 5. Water Sink; 6. Water Tap; 7. Gas Tap; 8. Gas & Water Remote Control Valve; 9. 10m PVC aluminum foil composite exhaust duct, Pipe strap x2 (duct is retractable and can be cut freely)
- Optional Accessory: 1. Active carbon filter/HEPA filter; 2. Air velocity sensor;
- Gross Weight (kg) [FMH-DA-LP1000]: 286
- Gross Weight (kg) [FMH-DA-LP1200]: 317
- Gross Weight (kg) [FMH-DA-LP1500]: 350
- Gross Weight (kg) [FMH-DA-LP1800]: 400
- Shipping Size (W×D×H)(mm) [UNVERIFIED — 5 values, 4 models, check manually]: Main Body | 1190×990×1690 | 1390×990×1690 | 1690×990×1690 | 1990×990×1690
- Base Cabinet [FMH-DA-LP1000]: 1190×990×900
- Base Cabinet [FMH-DA-LP1200]: 1390×990×900
- Base Cabinet [FMH-DA-LP1500]: 1690×990×900
- Base Cabinet [FMH-DA-LP1800]: 1990×990×900
- Shipping Volume (m³) [FMH-DA-LP1000]: 3.1
- Shipping Volume (m³) [FMH-DA-LP1200]: 3.6
- Shipping Volume (m³) [FMH-DA-LP1500]: 4.3
- Shipping Volume (m³) [FMH-DA-LP1800]: 5.1
