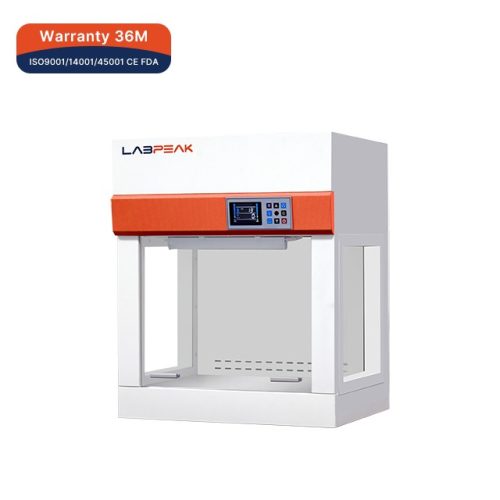

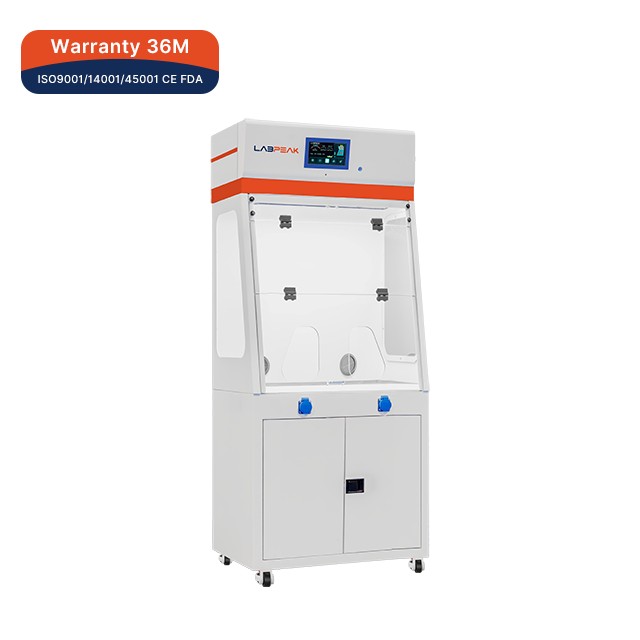

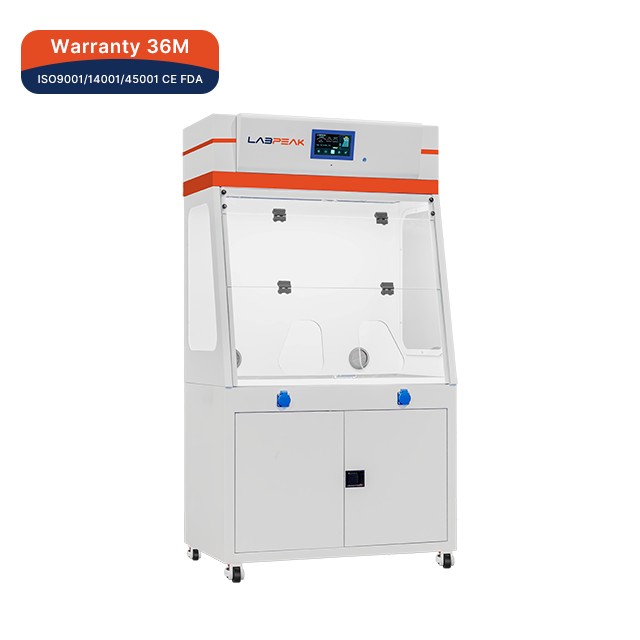

Ductless Fume Hood, Touch Screen
LABPEAKBiological Safety Cabinets & Laminar Flow

Ductless Fume Hood, Touch Screen

This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.

The FMH-DL Series ductless fume hood is specifically designed to ensure the safety of laboratory personnel during experiments. It effectively prevents operators from inhaling toxic, harmful, or potentially disease-causing chemicals, as well as unknown substances. This fume hood efficiently purifies

Specifications

Model
FMH-DL-LP800(II); FMH-DL-LP1000(II); FMH-DL-LP1200(II); FMH-DL-LP1600(II);
Display
7-inch LCD touch screen
Sound Emission
≤52 dB(A)
Airflow Velocity
0.4~0.6m/s

Full specification sheet

  • Model [FMH-DL-LP800(II)]: FMH-DL-LP800(II)
  • Model [FMH-DL-LP1000(II)]: FMH-DL-LP1000(II)
  • Model [FMH-DL-LP1200(II)]: FMH-DL-LP1200(II)
  • Model [FMH-DL-LP1600(II)]: FMH-DL-LP1600(II)
  • External Size(W×D×H)(mm)(Main Unit) [FMH-DL-LP800(II)]: 800×620×1100
  • External Size(W×D×H)(mm)(Main Unit) [FMH-DL-LP1000(II)]: 1000×620×1100
  • External Size(W×D×H)(mm)(Main Unit) [FMH-DL-LP1200(II)]: 1200×620×1100
  • External Size(W×D×H)(mm)(Main Unit) [FMH-DL-LP1600(II)]: 1600×620×1100
  • External Size(W×D×H)(mm)(Base Cabinet) [FMH-DL-LP800(II)]: 800×600×690
  • External Size(W×D×H)(mm)(Base Cabinet) [FMH-DL-LP1000(II)]: 1000×600×690
  • External Size(W×D×H)(mm)(Base Cabinet) [FMH-DL-LP1200(II)]: 1200×600×690
  • External Size(W×D×H)(mm)(Base Cabinet) [FMH-DL-LP1600(II)]: 1600×600×690
  • Internal Size(W×D×H)(mm) [FMH-DL-LP800(II)]: 780×570×775
  • Internal Size(W×D×H)(mm) [FMH-DL-LP1000(II)]: 980×570×775
  • Internal Size(W×D×H)(mm) [FMH-DL-LP1200(II)]: 1180×570×775
  • Internal Size(W×D×H)(mm) [FMH-DL-LP1600(II)]: 1580×570×775
  • Control System Display: 7-inch LCD touch screen
  • Alarm: Fiter saturation alarm; VOC alarm; Fan system failure alarm
  • Airflow System Airflow Velocity: 0.4~0.6m/s
  • Airflow Volume [UNVERIFIED — 2 values, 4 models, check manually]: 130 m³h | 260m³/h
  • Air Filtration System [UNVERIFIED — 3 values, 4 models, check manually]: Pre-Filter | 1pc | 2pcs
  • Active Carbon Filter [UNVERIFIED — 2 values, 4 models, check manually]: 1group(1pc) | 1group(2pcs)
  • Cabinet Main Body: Galvanized steel sheet, diameter ≥1.5mm, epoxy resin electrostatic spraying, corrosion resistance.
  • Construction Work Surface: Epoxy resin, corrosion resistance, high temperature resistance
  • Electrical System [UNVERIFIED — 5 values, 4 models, check manually]: LED Lamp | 16W×1 | 16W×2 | 16W×2 | 10W×4
  • PSC Blower [UNVERIFIED — 2 values, 4 models, check manually]: 1pc | 2pcs
  • Max.Consumption [UNVERIFIED — 2 values, 4 models, check manually]: 60W | 120W
  • Power Supply: AC220V±10%, 50/60HZ; 110V±10%, 60Hz
  • Sound Emission: ≤52 dB(A)
  • Standard Accessory: Base Cabinet, Active Carbon Filter, Pre-filter, LED Lamp, LCD Touch Screen, PSC Blower, Real-time Temperature Environmental Monitoring System, Air Velocity Sensor
  • Optional Filters Filter Type: OG: Organic filter, AG: Inorganic filter, AM: Ammonia gas filter, FO: Formaldehyde filter, HEPAH14: HEPA filter (Customer can choose any two type filters according to the type of chemicals to operate.)
  • Max.Groups of Filter [UNVERIFIED — 2 values, 4 models, check manually]: 2 groups (2 pcs) | 2 groups (4 pcs)
  • Max.Groups of Filter: (Note: Each group filter needs to be same, customer can only choose up to two types of filters.
  • N.W/G.W(Main Unit) [FMH-DL-LP800(II)]: 102/122 kg
  • N.W/G.W(Main Unit) [FMH-DL-LP1000(II)]: 114/144 kg
  • N.W/G.W(Main Unit) [FMH-DL-LP1200(II)]: 132/167 kg
  • N.W/G.W(Main Unit) [FMH-DL-LP1600(II)]: 174/216 kg
  • N.W/G.W(Base Cabinet) [FMH-DL-LP800(II)]: 54/69 kg
  • N.W/G.W(Base Cabinet) [FMH-DL-LP1000(II)]: 62/82 kg
  • N.W/G.W(Base Cabinet) [FMH-DL-LP1200(II)]: 90/115 kg
  • N.W/G.W(Base Cabinet) [FMH-DL-LP1600(II)]: 114/142 kg
  • Shipping Size (W×D×H)(Main Unit) [FMH-DL-LP800(II)]: 860×680×1450
  • Shipping Size (W×D×H)(Main Unit) [FMH-DL-LP1000(II)]: 1060×680×1450
  • Shipping Size (W×D×H)(Main Unit) [FMH-DL-LP1200(II)]: 1360×680×1450
  • Shipping Size (W×D×H)(Main Unit) [FMH-DL-LP1600(II)]: 1690×680×1450
  • Shipping Size (W×D×H)(Base Cabinet) [FMH-DL-LP800(II)]: 860×620×900
  • Shipping Size (W×D×H)(Base Cabinet) [FMH-DL-LP1000(II)]: 1060×620×900
  • Shipping Size (W×D×H)(Base Cabinet) [FMH-DL-LP1200(II)]: 1300×620×900
  • Shipping Size (W×D×H)(Base Cabinet) [FMH-DL-LP1600(II)]: 1660×620×900
  • Shipping Volume [FMH-DL-LP800(II)]: 1.4m³
  • Shipping Volume [FMH-DL-LP1000(II)]: 1.7m³
  • Shipping Volume [FMH-DL-LP1200(II)]: 2.1m³
  • Shipping Volume [FMH-DL-LP1600(II)]: 2.6m³
