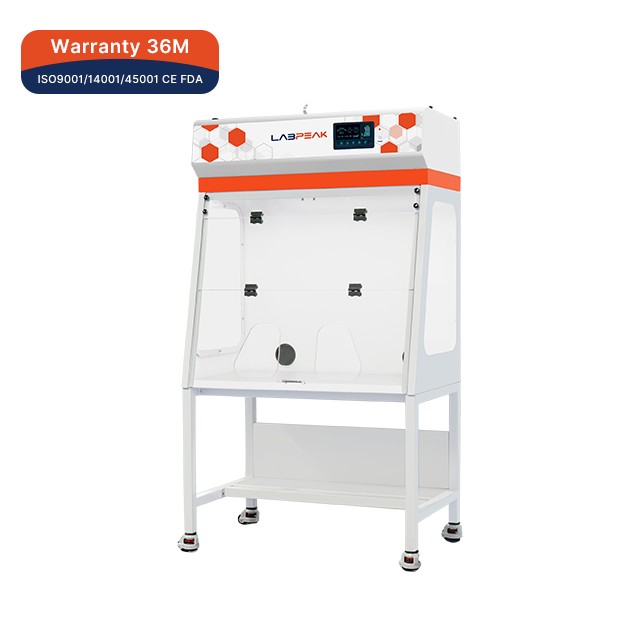

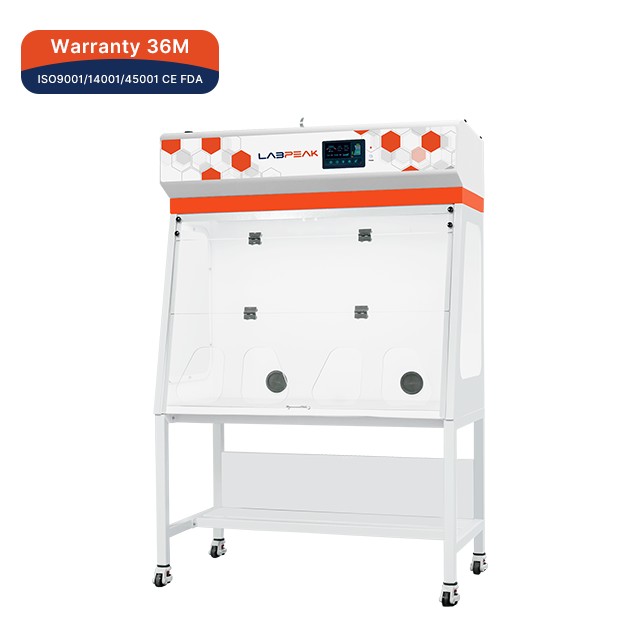

Ductless Fume Hood, TouchScreen
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- FMH-DL-LP1000; FMH-DL-LP1200
- Main Body
- Electro-galvanized steel with antimicrobial powder coating
- Max. Opening
- 650 mm
- Work Surface
- 304 Stainless Steel, Max.loading of worksurface: 70 kg
- Airflow Velocity
- 0.4-0.6m/s, speed adjustable
- Operation Surface Height
- 690 mm
Full specification sheet
- Model [FMH-DL-LP1000]: FMH-DL-LP1000
- Model [FMH-DL-LP1200]: FMH-DL-LP1200
- External Size (WxDxH)(mm) [FMH-DL-LP1000]: 1000×620×1800
- External Size (WxDxH)(mm) [FMH-DL-LP1200]: 1200×620×1800
- Internal Size (WxDxH)(mm) [FMH-DL-LP1000]: 980×540×775
- Internal Size (WxDxH)(mm) [FMH-DL-LP1200]: 1180×540×775
- Max.Opening: 650 mm
- Operation Surface Height: 690 mm
- Control System: 7-inch color touch screen, real-time display air velocity, VOC concentration, temperature and humidity, and filter lifetime, etc
- Airflow System [FMH-DL-LP1000]: Airflow Velocity
- Airflow System [FMH-DL-LP1200]: 0.4-0.6m/s, speed adjustable
- Air filtration System [UNVERIFIED — 3 values, 2 models, check manually]: Filter | 1pcs Pre-filter, polyester fiber, washable | 2pcs Pre-filter, polyester fiber, washable
- 1pcs Active Carbon filter: 2pcs Active Carbon filter
- Cabinet Construction [FMH-DL-LP1000]: Main Body
- Cabinet Construction [FMH-DL-LP1200]: Electro-galvanized steel with antimicrobial powder coating
- Work Surface: 304 Stainless Steel, Max. loading of surface: 70 kg
- Front Window: Manual acrylic window
- Electrical System [FMH-DL-LP1000]: LED Lamp
- Electrical System [FMH-DL-LP1200]: 16 W×2
- Blower: DC Centrifugal blower, adjustable speed, low noise
- Consumption [FMH-DL-LP1000]: 60 W
- Consumption [FMH-DL-LP1200]: 120 W
- Power Supply: 220V±10%, 50/60Hz; 110V±10%, 60Hz
- Sound Emission: ≤50dB(A)
- Standard Accessory: 1. Base Stand; 2. Active Carbon Filter; 3. Pre-Filter; 4. LED Lamp×2
- Optional Accessory: 1. Base cabinet; 2. HEPA filter; 3. Chemical filter; 4. Upgraded LED Lamp; 5. Solid Physicochemical Board Work Surface
- Net Weight (kg) [FMH-DL-LP1000]: 96
- Net Weight (kg) [FMH-DL-LP1200]: 113
- Gross Weight (kg) [FMH-DL-LP1000]: 138
- Gross Weight (kg) [FMH-DL-LP1200]: 160
- Shipping Size (WxDxH)(mm) [FMH-DL-LP1000]: 1160×840×1320
- Shipping Size (WxDxH)(mm) [FMH-DL-LP1200]: 1360×840×1320
- Shipping Volume (m³) [FMH-DL-LP1000]: 1.3
- Shipping Volume (m³) [FMH-DL-LP1200]: 1.5
