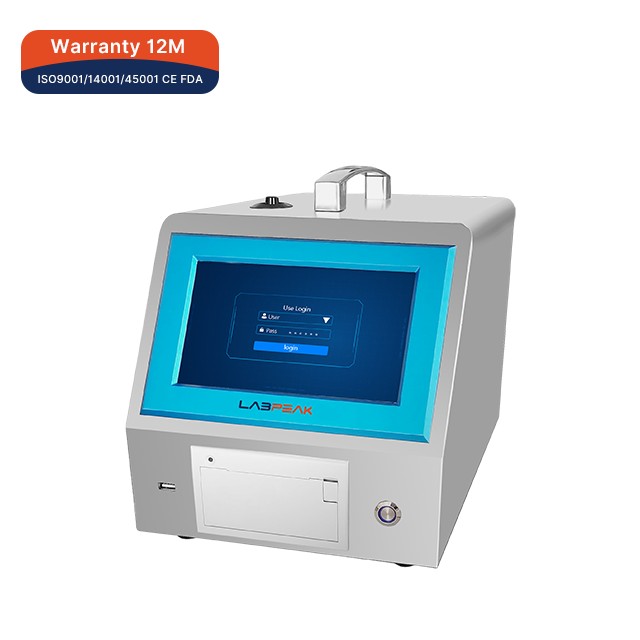

Dust Particle Counter

Specifications

Model: DPC-LP330
Detection Range: Grade 100–300,000 (GMP A, B, C, D)
Channel: 8 channel, 0.3/ 0.5/ 0.7/ 1.0/ 2.0/ 3.0/ 5.0/ 10.0 μm
Flow Rate: 28.3 L/min
Sampling Period: 1s–99 min 59 s
Self-Purification Time: ≤10 min
Flow Rate Error: ≤2%
Particle Size Distribution Error: ≤15%
Particle Size Concentration Error: ≤15%
Repeatability: ±5%
Maximum Allowable: 35000 pcs/L
Maximum Allowable: Sampling Concentration
Light Source and Life: Semiconductor laser＞30000 h
Vacuum Source: Built-in air pump, flow control
Working Environment: Temperature: 10–35℃, relative humidity ≤ 75%
Consumption: 145 W
Power Supply: 220±10% V, 50±2 Hz, Built-in lithium battery
Standard Accessory: Built-in printer; printer paper; sampling rack; built-in air pump; USB disk;
Standard Accessory: WIFI interface; aluminum alloy case; zero-count filter
Optional Accessory: External temperature and humidity module; audit trail software
External Size (W×D×H): 220×285×260 mm
Shipping Size (W×D×H): 570×360×400 mm
N.W./G.W.: 8.5/15.4 kg
