LABPEAKIncubators & Ovens

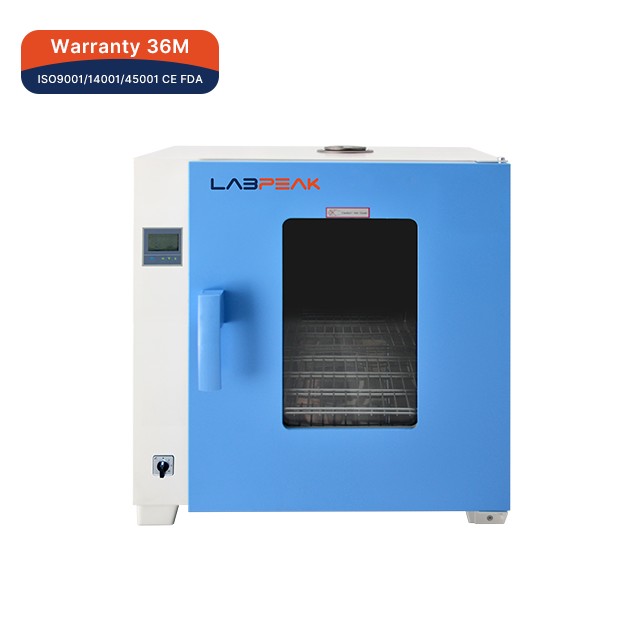

Far Infrared Fast Drying Oven
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Specifications
- Model
- IDOL-P70H; IDOL-P140H; IDOL-P270H
- Temperature range
- 50°C~250°C
- Temperature uniformity
- ≤ Max operating temperature ±3.5%
- Temperature fluctuation
- ±1°C
Full specification sheet
- Model [IDOL-P70H]: IDOL-P70H
- Model [IDOL-P140H]: IDOL-P140H
- Model [IDOL-P270H]: IDOL-P270H
- Temperature range: 50°C~250°C
- Temperature uniformity: ≤ Max operating temperature±3.5%
- Temperature fluctuation: ±1°C
- Internal circulation method: Natural convection
- Security alarm: Overtemperature alarm, temperature probe damage alarm
- Internal Size (W×D×H)(mm) [IDOL-P70H]: 400×400×450
- Internal Size (W×D×H)(mm) [IDOL-P140H]: 500×500×550
- Internal Size (W×D×H)(mm) [IDOL-P270H]: 600×600×750
- Internal volume (L) [IDOL-P70H]: 70
- Internal volume (L) [IDOL-P140H]: 140
- Internal volume (L) [IDOL-P270H]: 270
- External Size (W×D×H)(mm) [IDOL-P70H]: 730×565×702
- External Size (W×D×H)(mm) [IDOL-P140H]: 830×665×772
- External Size (W×D×H)(mm) [IDOL-P270H]: 930×765×972
- Number of shelves (pcs) [IDOL-P70H]: 2
- Number of shelves (pcs) [IDOL-P140H]: 3
- Number of shelves (pcs) [IDOL-P270H]: 3
- Timer(min): 0-9999
- Power (W) [IDOL-P70H]: 1200
- Power (W) [IDOL-P140H]: 1600
- Power (W) [IDOL-P270H]: 1900
- Power supply: 220V/110V 50Hz/60Hz
- Shipping Size (WxDxH)(mm) [IDOL-P70H]: 810×610×830
- Shipping Size (WxDxH)(mm) [IDOL-P140H]: 920×740×890
- Shipping Size (WxDxH)(mm) [IDOL-P270H]: 1030×850×1100
- G.W.(kg) [IDOL-P70H]: 66
- G.W.(kg) [IDOL-P140H]: 87
- G.W.(kg) [IDOL-P270H]: 130
- Optional: LCD screen temperature controller.
- Optional: LCD screen temperature controller + RS485 communication serial port.
- Optional: LCD screen temperature controller + micro dot matrix printer
