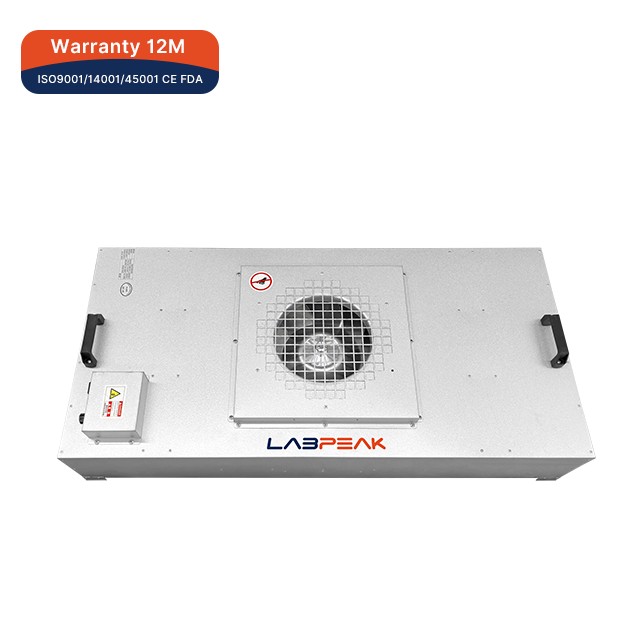

FFU (Fan Filter Unit)
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- FFU-LP600; FFU-LP1200; FFU-LP1200Pro
- Filter
- 1pcs Pre-filter, 1pc H14 HEPA filter
- Efficiency
- ≥99.995% efficiency at 0.3 μm
- Air Velocity
- 0.45 m/s ± 20%
Full specification sheet
- Model [FFU-LP600]: FFU-LP600
- Model [FFU-LP1200]: FFU-LP1200
- Model [FFU-LP1200Pro]: FFU-LP1200Pro
- External Size(W×D×H) (mm) [FFU-LP600]: 575×575×250
- External Size(W×D×H) (mm) [FFU-LP1200]: 1175×575×250
- External Size(W×D×H) (mm) [FFU-LP1200Pro]: 1175×1175×250
- Air Velocity: 0.45m/s±20%
- Air Volume (m³/h) [FFU-LP600]: 600~800
- Air Volume (m³/h) [FFU-LP1200]: 800~120
- Air Volume (m³/h) [FFU-LP1200Pro]: 1800~2200
- Filter and Efficiency: 1 pc pre-filter, 1 pc H14 HEPA filter, ≥99.995% efficiency at 0.3μm
- HEPA Filter Size (W×D×H)(mm) [FFU-LP600]: 570×570×70
- HEPA Filter Size (W×D×H)(mm) [FFU-LP1200]: 1170×570×70
- HEPA Filter Size (W×D×H)(mm) [FFU-LP1200Pro]: 1170×1170×70
- Cleanliness Grade: Class 100 (ISO14644.1 Class 5)
- Sound Emission [UNVERIFIED — 2 values, 3 models, check manually]: ≤60 dB | ≤65 dB
- Shell Material: Aluminium coated zinc plate, anti-corrosion and light weight
- Consumption (W) [FFU-LP600]: 100
- Consumption (W) [FFU-LP1200]: 120
- Consumption (W) [FFU-LP1200Pro]: 245
- Power Supply: AC 220 V±10%, 50/60 Hz; 110 V±10%, 60 Hz
- Standard Accessory: Pre-filter×1, HEPA filter×1, blower.
- N.W. (kg) [FFU-LP600]: 16
- N.W. (kg) [FFU-LP1200]: 25
- N.W. (kg) [FFU-LP1200Pro]: 35
- G.W. (kg) [FFU-LP600]: 25
- G.W. (kg) [FFU-LP1200]: 35
- G.W. (kg) [FFU-LP1200Pro]: 55
- Shipping Size (W×D×H) (mm) [FFU-LP600]: 800×800×500
- Shipping Size (W×D×H) (mm) [FFU-LP1200]: 1335×800×500
- Shipping Size (W×D×H) (mm) [FFU-LP1200Pro]: 1335×1335×540
- Shipping Volume (m³) [FFU-LP600]: 0.32
- Shipping Volume (m³) [FFU-LP1200]: 0.54
- Shipping Volume (m³) [FFU-LP1200Pro]: 0.96
