LABPEAKPCR & Molecular Biology

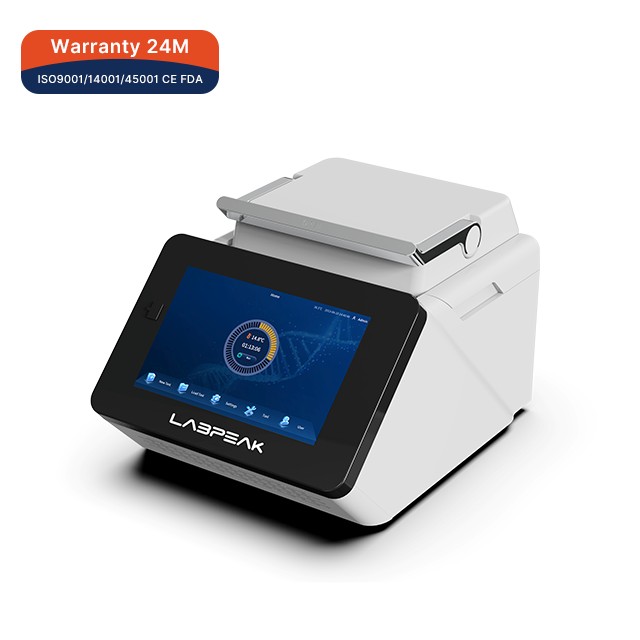

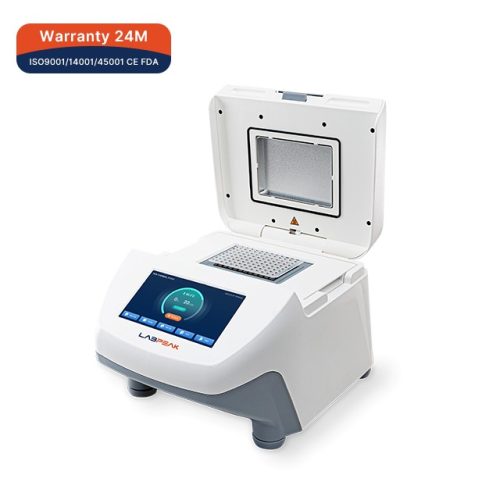

Gradient Thermal Cycler
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- LPCR-G96P; LPCR-G48P; LPCR-G32P
- Uniformity
- ±0.2 ℃
- Temperature Range
- 0–105℃
- Thermal Cycle Mode
- Peltier
- Max.Temperature Change Rate
- 5.0 ℃/s
Full specification sheet
- Model [LPCR-G96P]: LPCR-G96P
- Model [LPCR-G48P]: LPCR-G48P
- Model [LPCR-G32P]: LPCR-G32P
- Sample Capacity: 96×0.2 mL PCR tube
- Sample Capacity: 12×PCR 8 strips
- 1×0.2 mL 96-well PCR plate: /
- Block [LPCR-G96P]: 1×96

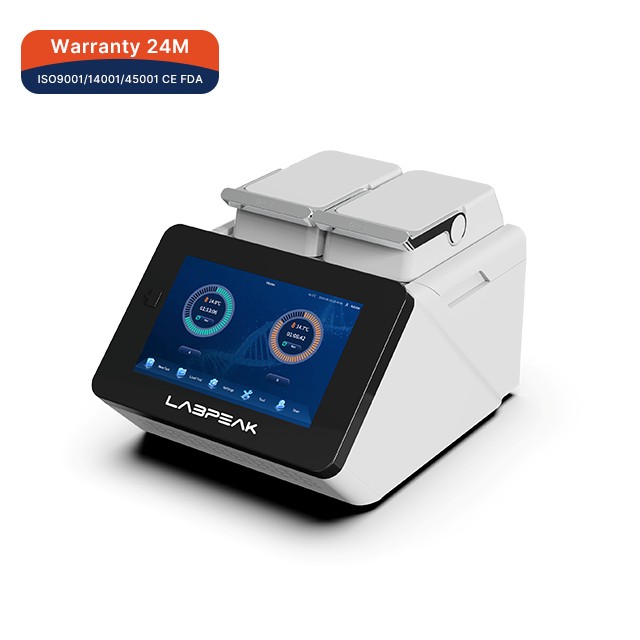

- Block [LPCR-G48P]: 2×48

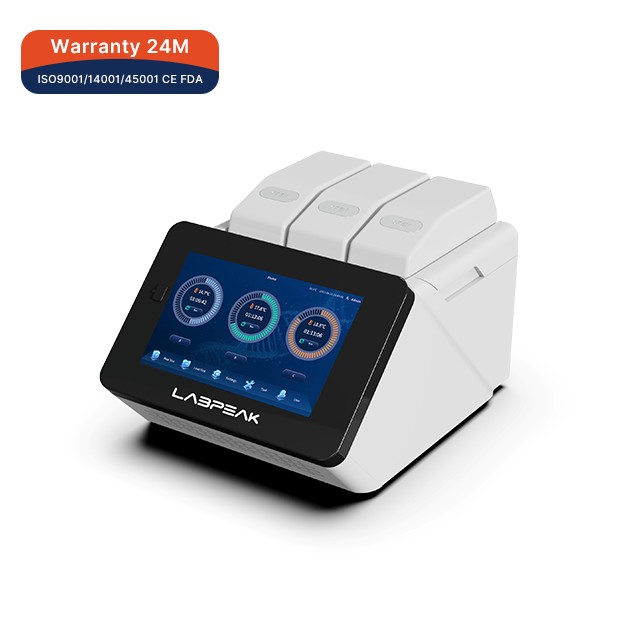

- Block [LPCR-G32P]: 3×32
- Temperature Range: 0–105℃
- Thermal Cycle Mode: Peltier
- Max.Temperature Change Rate: 5.0 ℃/s
- Uniformity: ±0.2 ℃
- Accuracy: ±0.1 ℃
- Resolution: ±0.1 ℃
- Temperature Control: Block\Tube
- Gradient Temp. Control Range: 30–105 ℃
- Lid Temperature Range: 30–115℃
- Gradient Span [UNVERIFIED — 2 values, 3 models, check manually]: 1–42 °C, enter 0 to turn off the gradient | 1–25 °C, enter 0 to turn off the gradient
- Number of Program Storage: 20000+ (USB Flash)
- Communication Interface: USB, WIFI
- User-Defined File System: Up to 30 steps and 199 cycles in a single program
- Power Supply: AC 220/110 V, 50/60 Hz
- Consumption (W) [LPCR-G96P]: 600
- Consumption (W) [LPCR-G48P]: 1000
- Consumption (W) [LPCR-G32P]: 1500
- External Size (W×D×H): 264×422×310 mm
- Shipping Size (W×D×H): 370×580×410 mm
- N.W/G.W.: 11/15 kg
