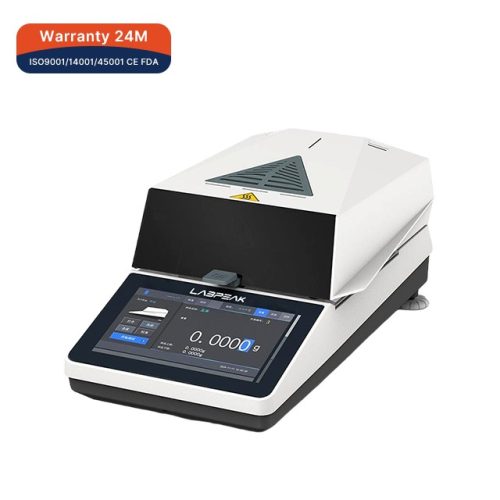

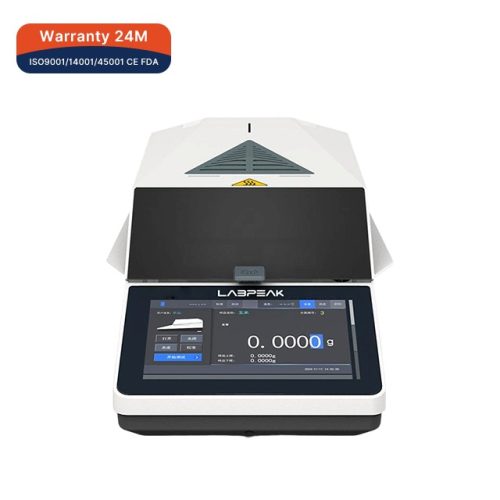

Halogen Moisture Analyzer PHM Series
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Classic halogen moisture analyzer for the rapid and precise determination of material moisture content. With stable and reliable performance, user-friendly operation, and high cost-effectiveness, it has become the preferred solution for routine moisture testing across various industries. meeting rap
Specifications
- Model
- BAL-PHM110; BAL-PHM105; BAL-PHM102; BAL-PHM1104;
- Sensor
- PT100 and HBM sensor
- Pan Size
- Φ90 mm
- Max. Capacity
- 110 g
- Heating Source
- Halogen Lamp×1; Infrared lamp×1
- Readability (g)
- 0.01; 0.005; 0.002; 0.001
Full specification sheet
- Model [BAL-PHM110]: BAL-PHM110
- Model [BAL-PHM105]: BAL-PHM105
- Model [BAL-PHM102]: BAL-PHM102
- Model [BAL-PHM1104]: BAL-PHM1104
- Max. Capacity: 110 g
- Readability (g) [BAL-PHM110]: 0.01
- Readability (g) [BAL-PHM105]: 0.005
- Readability (g) [BAL-PHM102]: 0.002
- Readability (g) [BAL-PHM1104]: 0.001
- Drying Temperature [UNVERIFIED — 2 values, 4 models, check manually]: 40–199 ℃ (1 ℃ temperature increments) | 40–160 ℃ (1 ℃ temperature increments)
- Display Backlit LCD: High Definition Backlit LCD
- Sensor: PT100 and HBM sensor
- Pan Size: Φ90 mm
- Heating Source [UNVERIFIED — 2 values, 4 models, check manually]: Halogen Lamp×1 | Infrared lamp×1
- Moisture Readability [BAL-PHM110]: 0.20%
- Moisture Readability [BAL-PHM105]: 0.10%
- Moisture Readability [BAL-PHM102]: 0.04%
- Moisture Readability [BAL-PHM1104]: 0.01%
- Dry Readability [BAL-PHM110]: 0.20%
- Dry Readability [BAL-PHM105]: 0.10%
- Dry Readability [BAL-PHM102]: 0.04%
- Dry Readability [BAL-PHM1104]: 0.01%
- Time Setting: 1 min 40 s–99 min (10 s Steps)
- Memory Storage: 15 groups
- History Record [BAL-PHM110]: –
- History Record [BAL-PHM105]: –
- History Record [BAL-PHM102]: –
- History Record [BAL-PHM1104]: 5 groups
- Ambient Temperature [UNVERIFIED — 2 values, 4 models, check manually]: 5–35 ℃ | 15–30 ℃
- Heater Power Supply [UNVERIFIED — 2 values, 4 models, check manually]: 220/110±15%V, 50/60 Hz; 400 W | 110 V, 50/60 HZ
- Balance Power Supply [UNVERIFIED — 2 values, 4 models, check manually]: Input: 220/110 V, 50/60 Hz; Output: 9V | 110 V, 50/60 HZ
- Calibration: External Calibration
- Interface: RS232 (Standard)

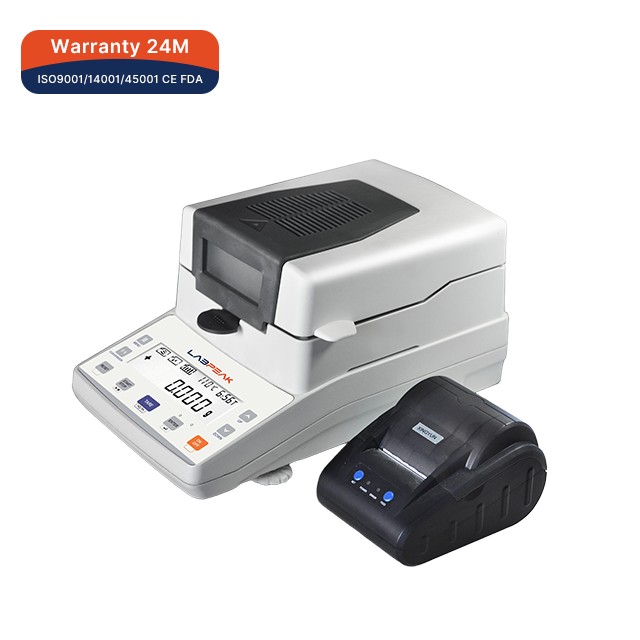

- Optional Accessory: Aluminum box/Printer
- External Size(W×D×H): 280×250×180 mm
- Package Size(W×D×H): 490×350×340 mm
- N.W./ G.W.: 6/7.5 kg
