LABPEAKBiological Safety Cabinets & Laminar Flow
Horizontal Laminar Flow Cabinet
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.

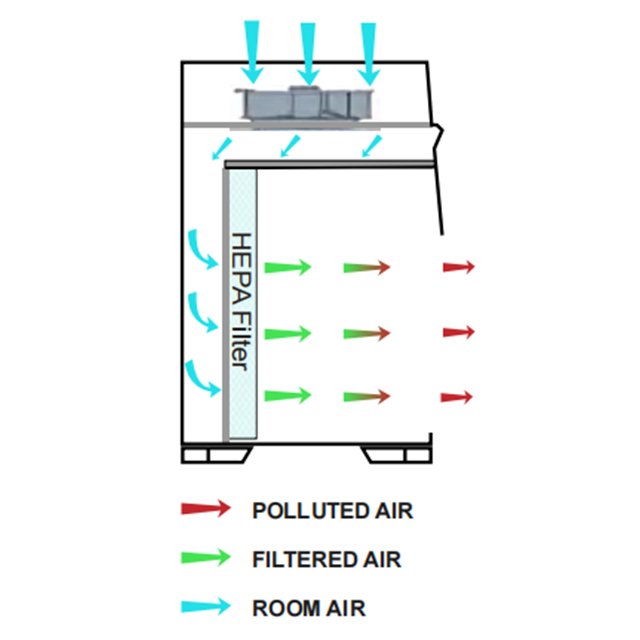

The horizontal laminar flow cabinet creates a sterile work environment by directing purified air in a horizontal, unidirectional flow across the work zone, exiting uniformly across the entire open front of the cabinet. This popular product is widely used in laboratories, pharmaceutical manufacturing
Specifications
- Model
- LCB-H-LP1100; LCB-H-LP1300; LCB-H-LP1600; LCB-H-LP1900
- Airflow Velocity
- 0.2~0.5 m/s, speed adjustable
- Work Surface Height
- 750mm
- HEPA Filter Efficiency
- 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Full specification sheet
- Model [LCB-H-LP1100]: LCB-H-LP1100
- Model [LCB-H-LP1300]: LCB-H-LP1300
- Model [LCB-H-LP1600]: LCB-H-LP1600
- Model [LCB-H-LP1900]: LCB-H-LP1900
- External Size (WxDxH)(mm) [LCB-H-LP1100]: 1050x805x1950
- External Size (WxDxH)(mm) [LCB-H-LP1300]: 1320x805x1950
- External Size (WxDxH)(mm) [LCB-H-LP1600]: 1625x805x1950
- External Size (WxDxH)(mm) [LCB-H-LP1900]: 1930x805x1950
- Internal Size (WxDxH)(mm) [LCB-H-LP1100]: 950x490x574
- Internal Size (WxDxH)(mm) [LCB-H-LP1300]: 1220x490x574
- Internal Size (WxDxH)(mm) [LCB-H-LP1600]: 1525x490x574
- Internal Size (WxDxH)(mm) [LCB-H-LP1900]: 1830x490x574
- Work Surface Height: 750mm
- Control System Display: Microprocessor controller with LCD display, display the operating status of each function
- Interlock: Front sliding sash interlock with fan and UV lamp
- Life Indicator: HEPA filter and UV life indicators facilitate a timely replacement plan
- Airflow System Airflow Velocity: 0.2~0.5 m/s, speed adjustable
- Air filtration System Pre-Filter: 1pcs, Polyester fiber,washable
- HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Cleanliness Grade: ISO Class 5 (formerly Class 100)
- Cabinet Construction Main Body: Electro-Galvanized steel with antimicrobial powder coating
- Work Surface: 304 Stainless Steel
- Front Window: Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
- Side window: 5 mm UV resistant tempered glass
- Electrical System [UNVERIFIED — 5 values, 4 models, check manually]: UV Lamp | 20W×2 | 30W×1 | 30W×1 | 18W×2
- Electrical System: With timing function from 0 to 999 minutes, Interlock with front sliding sash.
- Electrical System: Emission of 253.7 nanometers for best sterilization effect.
- LED Lamp [LCB-H-LP1100]: 6.5W×1
- LED Lamp [LCB-H-LP1300]: 9.6W×1
- LED Lamp [LCB-H-LP1600]: 9.6W×1
- LED Lamp [LCB-H-LP1900]: 6.5W×2
- Consumption [LCB-H-LP1100]: 160W
- Consumption [LCB-H-LP1300]: 170W
- Consumption [LCB-H-LP1600]: 300W
- Consumption [LCB-H-LP1900]: 310W
- Consumption: Not include socket loading power consumption
- Power Supply: AC220V±10%, 50/60 Hz; 110V±10%, 60Hz
- Illumination: ≥900 Lux
- Sound Emission: ≤65dB(A)
- Standard Accessory: 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket × 2; 5. Air Velocity Sensor.
- Optional Accessory: 1. Gas Tap; 2. IV Bar with Hooks
- Gross Weight (kg) [LCB-H-LP1100]: 220
- Gross Weight (kg) [LCB-H-LP1300]: 260
- Gross Weight (kg) [LCB-H-LP1600]: 300
- Gross Weight (kg) [LCB-H-LP1900]: 340
- Shipping Size (W×D×H)(mm) [LCB-H-LP1100]: 1190x1010x1425
- Shipping Size (W×D×H)(mm) [LCB-H-LP1300]: 1460x1010x1425
- Shipping Size (W×D×H)(mm) [LCB-H-LP1600]: 1765x1010x1425
- Shipping Size (W×D×H)(mm) [LCB-H-LP1900]: 2070x1010x1425
- Shipping Volume (m³) [LCB-H-LP1100]: 1.7
- Shipping Volume (m³) [LCB-H-LP1300]: 2.3
- Shipping Volume (m³) [LCB-H-LP1600]: 2.55
- Shipping Volume (m³) [LCB-H-LP1900]: 3
