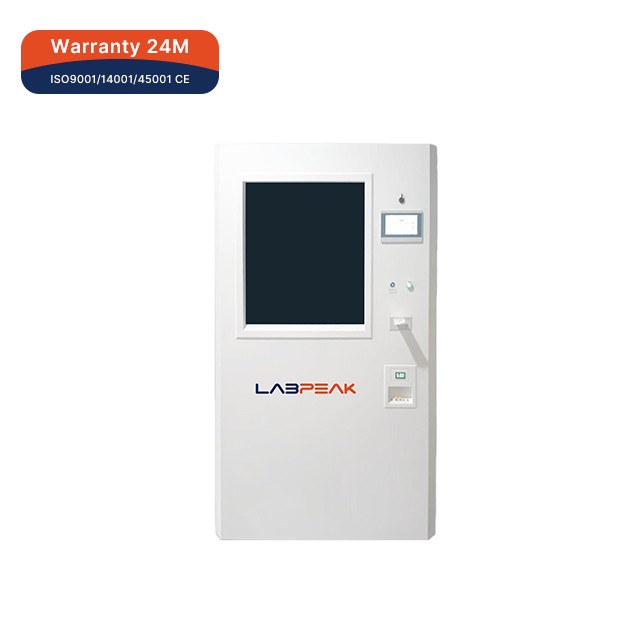

Hydrogen Peroxide Low Temperature Plasma Sterilizer
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Combining hydrogen peroxide gas with low-temperature plasma, this solution provides a low-temperature, rapid, and efficient sterilization solution for heat and moisture-sensitive precision medical devices. Ideal for sterilizing complex instruments such as rigid/flexible endoscopes, electronic instru
Specifications
- Model
- STL-PHT60P; STL-PHT110P; STL-PHT130P; STL-PHT160P; STL-PHT180P; STL-PHT200P; STL-PHT300P; STL-PHT400P;
- Door Type
- Automatic door vertical
- Electric Heating
- Electric heating
- Working Temperature
- 50±3 ℃
Full specification sheet
- Model [STL-PHT60P]: STL-PHT60P
- Model [STL-PHT110P]: STL-PHT110P
- Model [STL-PHT130P]: STL-PHT130P
- Model [STL-PHT160P]: STL-PHT160P
- Model [STL-PHT180P]: STL-PHT180P
- Model [STL-PHT200P]: STL-PHT200P
- Model [STL-PHT300P]: STL-PHT300P
- Model [STL-PHT400P]: STL-PHT400P
- Capacity (L) [STL-PHT60P]: 60
- Capacity (L) [STL-PHT110P]: 110
- Capacity (L) [STL-PHT130P]: 130
- Capacity (L) [STL-PHT160P]: 160
- Capacity (L) [STL-PHT180P]: 180
- Capacity (L) [STL-PHT200P]: 200
- Capacity (L) [STL-PHT300P]: 300
- Capacity (L) [STL-PHT400P]: 400
- Door Type: Automatic door vertical
- Electric Heating: Electric heating
- Working Temperature: 50±3°C
- Hydrogen Peroxide Concentration: 58% (Standard);
- Hydrogen Peroxide Concentration: Hydrogen peroxide purification technology, 95%±5% (optional);
- Hydrogen Peroxide Cartridge: Each cartridge contains 12 individual capsules. Single H₂O₂ dosage error: ≤ ±1%; pH value: ≤ 2.6 (acidic)
- Total Cycle Time: Rapid sterilization time ≤ 45 min;
- Total Cycle Time: Standard sterilization time ≤ 65 min;
- Total Cycle Time: Enhanced sterilization time ≤ 85 min.
- Power Supply [UNVERIFIED — 2 values, 8 models, check manually]: AC 220/110 V, 50/60 Hz | AC 380/220 V, 50/60 Hz (three-phase)
- Consumption (kW) [STL-PHT60P]: 2.2
- Consumption (kW) [STL-PHT110P]: 2.8
- Consumption (kW) [STL-PHT130P]: 3.8
- Consumption (kW) [STL-PHT160P]: 4
- Consumption (kW) [STL-PHT180P]: 4.2
- Consumption (kW) [STL-PHT200P]: 4.6
- Consumption (kW) [STL-PHT300P]: 4.8
- Consumption (kW) [STL-PHT400P]: 5
- Chamber Size (W×D×H)(mm) [STL-PHT60P]: 620×350×280
- Chamber Size (W×D×H)(mm) [STL-PHT110P]: 610×480×380
- Chamber Size (W×D×H)(mm) [STL-PHT130P]: 710×480×380
- Chamber Size (W×D×H)(mm) [STL-PHT160P]: 770×460×460
- Chamber Size (W×D×H)(mm) [STL-PHT180P]: 860×460×460
- Chamber Size (W×D×H)(mm) [STL-PHT200P]: 960×460×460
- Chamber Size (W×D×H)(mm) [STL-PHT300P]: 960×560×560
- Chamber Size (W×D×H)(mm) [STL-PHT400P]: 1010×660×600
- External Size (W×D×H)(mm) [STL-PHT60P]: 770×660×1400
- External Size (W×D×H)(mm) [STL-PHT110P]: 760×790×1600
- External Size (W×D×H)(mm) [STL-PHT130P]: 860×790×1600
- External Size (W×D×H)(mm) [STL-PHT160P]: 920×770×1760
- External Size (W×D×H)(mm) [STL-PHT180P]: 1010×770×1760
- External Size (W×D×H)(mm) [STL-PHT200P]: 1110×770×1760
- External Size (W×D×H)(mm) [STL-PHT300P]: 1110×870×1960
- External Size (W×D×H)(mm) [STL-PHT400P]: 1160×1165×1950
- Shipping Size (W×D×H)(mm) [STL-PHT60P]: 970×830×1720
- Shipping Size (W×D×H)(mm) [STL-PHT110P]: 960×890×1800
- Shipping Size (W×D×H)(mm) [STL-PHT130P]: 970×890×1800
- Shipping Size (W×D×H)(mm) [STL-PHT160P]: 1140×990×1960
- Shipping Size (W×D×H)(mm) [STL-PHT180P]: 1230×990×1960
- Shipping Size (W×D×H)(mm) [STL-PHT200P]: 1230×990×1960
- Shipping Size (W×D×H)(mm) [STL-PHT300P]: 1300×1070×2260
- Shipping Size (W×D×H)(mm) [STL-PHT400P]: 1380×1385×2150
- N.W./G.W. (kg) [STL-PHT60P]: 233/263
- N.W./G.W. (kg) [STL-PHT110P]: 295/335
- N.W./G.W. (kg) [STL-PHT130P]: 300/340
- N.W./G.W. (kg) [STL-PHT160P]: 320/365
- N.W./G.W. (kg) [STL-PHT180P]: 340/385
- N.W./G.W. (kg) [STL-PHT200P]: 360/400
- N.W./G.W. (kg) [STL-PHT300P]: 396/456
- N.W./G.W. (kg) [STL-PHT400P]: 500/560
