LABPEAKWater Purification

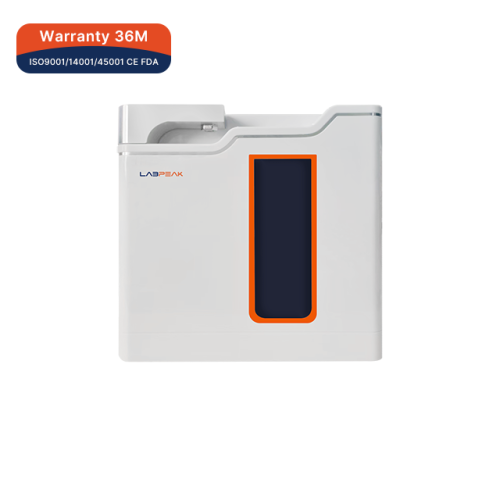

Intelligent Ultra Water Purifier
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Intelligent Ultra Water Purifier is equipped with an intelligent control system and can be operated via a touchscreen interface. It is primarily used in laboratories with extremely high water quality requirements. Its applications include atomic absorption/emission spectroscopy, mass spectrometry, t
Specifications
- Model
- WPL-PU10H; WPL-PU15H; WPL-PU20H; WPL-PU30H; WPL-PU45H; WPL-PU60H
- Flow Rate
- 1.5–2 L/min (with pressure barrel)
- Feed Water Request
- Tap water: conductivity < 400 μs, 5–45 ℃, 0.02–0.25 MPa, pH 3–10
- Water Production Capacity (L/H)
- 10, 15, 20, 30, 45, 60
Full specification sheet
- Model [WPL-PU10H]: WPL-PU10H
- Model [WPL-PU15H]: WPL-PU15H
- Model [WPL-PU20H]: WPL-PU20H
- Model [WPL-PU30H]: WPL-PU30H
- Model [WPL-PU45H]: WPL-PU45H
- Model [WPL-PU60H]: WPL-PU60H
- Water Production Capacity (L/H) [WPL-PU10H]: 10
- Water Production Capacity (L/H) [WPL-PU15H]: 15
- Water Production Capacity (L/H) [WPL-PU20H]: 20
- Water Production Capacity (L/H) [WPL-PU30H]: 30
- Water Production Capacity (L/H) [WPL-PU45H]: 45
- Water Production Capacity (L/H) [WPL-PU60H]: 60
- Feed Water Request: Tap water: conductivity < 400 μs, 5–45 ℃, 0.02–0.25 Mpa, pH 3–10
- Flow Rate: 1.5–2 L/min (with pressure barrel)
- Flow Rate: RO Water Parameter
- TDS: RO water TDS (total solid solubility, ppm) ≤ influent TDS×1% (desalination rate ≥ 99%)
- Soluble Organic Matter Retention Rate: >99%(MW>300 Dalton)
- Ion Rejection Rate: >99% (when using a new RO membrane)
- Organic Matter Rejection Rate: >99%, when MW>200 Dalton
- Inorganic ion Rejection Rate: 98–99% (when using a new RO membrane)
- Particles and Bacterial Rejection: >99%, when MW>200 Dalton
- Particles and Bacterial Rejection: UP Water Parameter (ASTM Type I Grade Water)
- Conductivity: 0.055 μs/cm @ 25℃ (< 0.1 μs/cm)
- Resistivity: >18.25MΩ.cm (25℃)
- Heavy Metal Ion: <0.01 ppb
- Total Organic Carbon (TOC): <5 ppb
- Bacteria: <0.1 CFU/mL
- Particulate Matter (> 0.1 microns): <1/mL
- Pyrogen (endotoxin): N/A
- DNases: N/A
- RNases: N/A
- RNases: Other Parameter
- Maximum Water Production of Reverse Osmosis: 2.0 liters per minute (open pressure tank)
- Work Stress Monitoring: 0–1 Mpa, 0–150 PSI
- Digital Water Quality Monitoring: Online monitoring of resistivity, conductivity, and water temperature
- Power Supply: 100–240 V, 50–60 Hz, 120 W
- External Size (W×D×H): 420×595×550 mm
- Shipping Size (W×D×H): 655×540×690 mm
- N.W./G.W.: 25/40 kg
