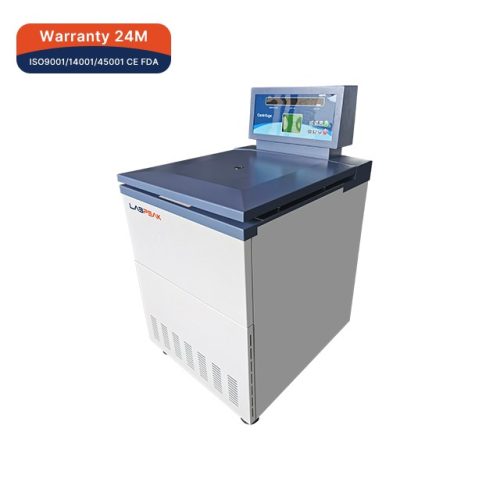

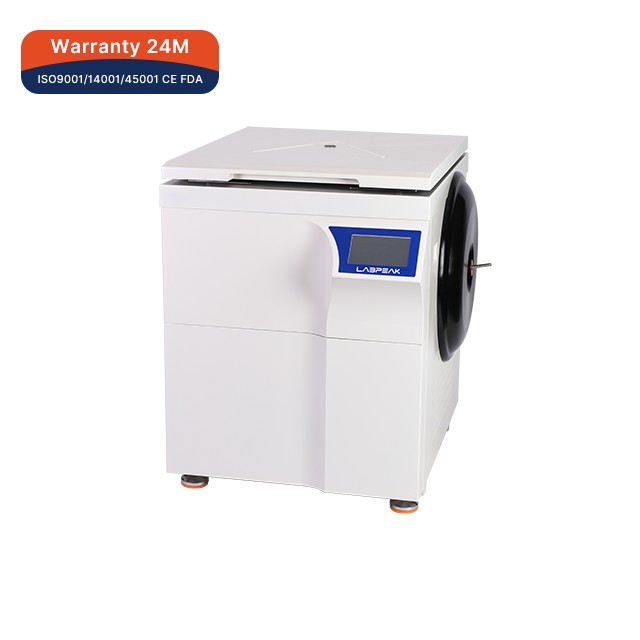

Low Speed Large Capacity Refrigerated Centrifuge

Specifications

Model

CFGL-P6LLR

Max RCF

6680×g

Max Speed

6000r/min

Max Capacity

6×1000ml

External Size (W×D×H)(mm)

725×940×970

Full specification sheet

• Model: CFGL-P6LLR
• Max Speed: 6000r/min
• Max RCF: 6680×g
• Max Capacity: 6×1000ml
• No.38 Angle Rotor: 6×500ml (6000r/min) RFC: 6680×g
• No.70 Swinging Rotor: 6×1000ml (4200r/min) RFC: 5030×g (Circular cup)
• No.70 Swinging Rotor: 6×1000ml (4200r/min) RFC: 5030×g (Square cup)
• Speed Accuracy: ±20r/min
• Timer Range: 0~99h59min59s
• Temp. Range: -20℃~40℃
• Temp. Accuracy: ±1℃
• Compressor: High-performance compressor with CFC-free refrigerant
• Noise: ≤58dB
• Motor: Brushless AC frequency motor and microcomputer controlled
• Power Supply: AC 220V 50Hz, 35A
• External Size (W×D×H)(mm): 725×940×970
• Shipping Size (W×D×H)(mm): 810×1040×1440
• N.W/G.W: 268kg/330kg
