LABPEAKCold Storage & Freezers

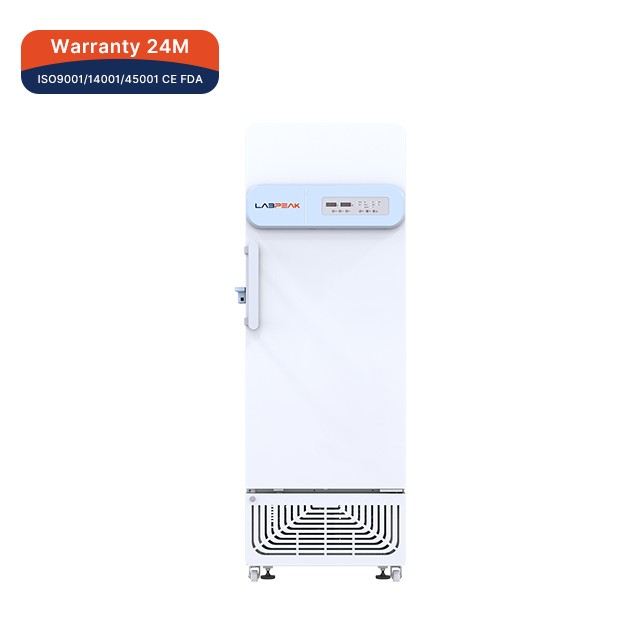

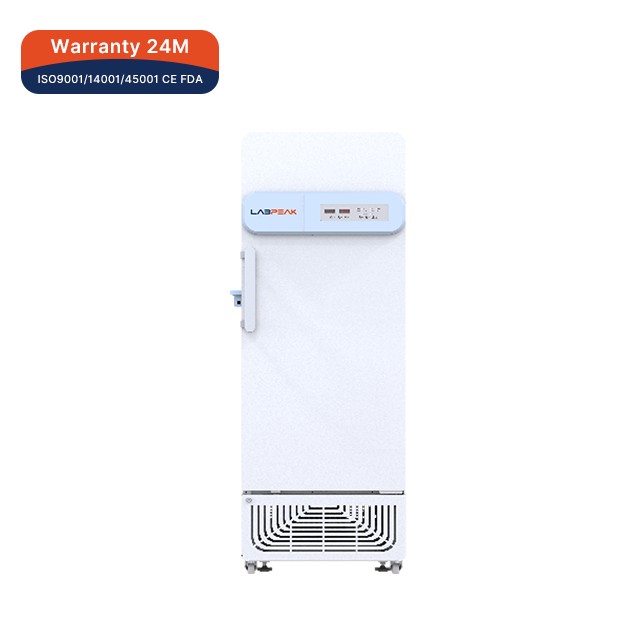

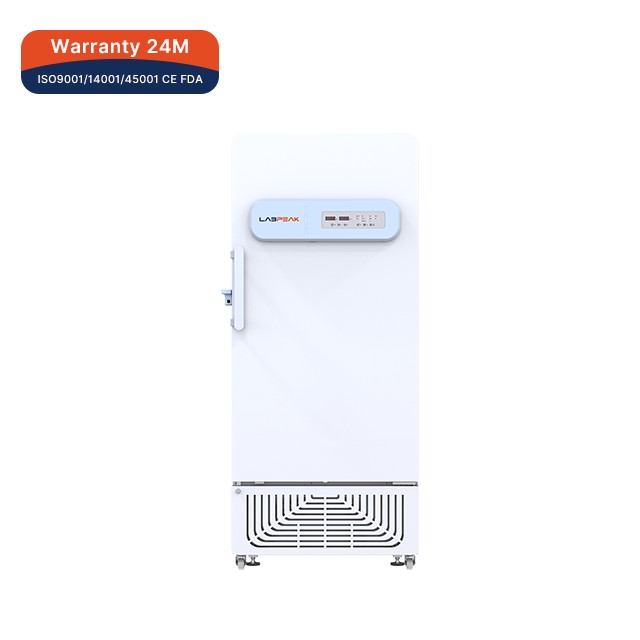

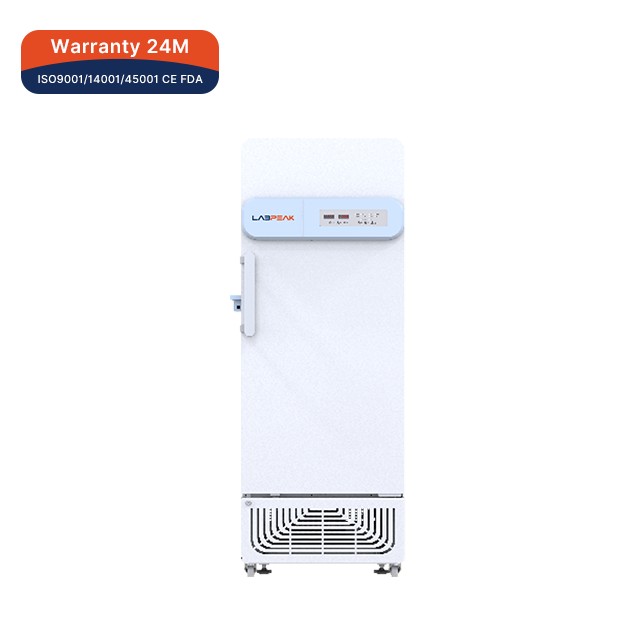

Low Temperature Freezer, Pharmacy Refrigerator
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
A low-temperature freezer designed for the low-temperature preservation of biological products such as bacteria, viruses, plasma, vaccines, red blood cells and white blood cells. It is suitable for hospitals, pharmaceutical factories, pharmacies, centers for disease control and prevention, health se
Specifications
- Model
- FZL-P30V300; FZL-P30V500; FZL-P40V440; FZL-P40V590
- Sensor
- NTC
- Cooling Mode
- Direct Cooling
- Defrost Mode
- Manual
- Temperature Range
- -10 to -30 °C, -20 to -40 °C
- Temperature Controller
- Microcomputer Control
Full specification sheet
- Model [FZL-P30V300]: FZL-P30V300
- Model [FZL-P30V500]: FZL-P30V500
- Model [FZL-P40V440]: FZL-P40V440
- Model [FZL-P40V590]: FZL-P40V590
- Capacity (L) [FZL-P30V300]: 300
- Capacity (L) [FZL-P30V500]: 500
- Capacity (L) [FZL-P40V440]: 435
- Capacity (L) [FZL-P40V590]: 590
- Temperature Range [UNVERIFIED — 2 values, 4 models, check manually]: -10 to -30 °C | -20 to -40 °C
- Sensor: NTC
- Temperature Controller: Microcomputer Control
- Cooling Mode: Direct Cooling
- Cooling Liquid [FZL-P30V300]: R290/75g
- Cooling Liquid [FZL-P30V500]: R290/110g
- Cooling Liquid [FZL-P40V440]: R290/120g
- Cooling Liquid [FZL-P40V590]: R290/135g
- Defrost Mode: Manual
- Compressor Qty: Inverter compressor/1
- Shelf/Drawer Qty: 3
- Rack [FZL-P30V300]: /
- Rack [FZL-P30V500]: 12(5×5)
- Rack [FZL-P40V440]: 12(5×5)
- Rack [FZL-P40V590]: 16(5×5)
- Storage Capacity (2 Inches Boxe) [FZL-P30V300]: /
- Storage Capacity (2 Inches Boxe) [FZL-P30V500]: 300
- Storage Capacity (2 Inches Boxe) [FZL-P40V440]: 300
- Storage Capacity (2 Inches Boxe) [FZL-P40V590]: 400
- Samples (2 mL) [FZL-P30V300]: /
- Samples (2 mL) [FZL-P30V500]: 30000
- Samples (2 mL) [FZL-P40V440]: 30000
- Samples (2 mL) [FZL-P40V590]: 40000
- Comsuption (W) [FZL-P30V300]: 145
- Comsuption (W) [FZL-P30V500]: 175
- Comsuption (W) [FZL-P40V440]: 180
- Comsuption (W) [FZL-P40V590]: 200
- Daily Power Consumption (W) [FZL-P30V300]: 2.34
- Daily Power Consumption (W) [FZL-P30V500]: 2.75
- Daily Power Consumption (W) [FZL-P40V440]: 2.6
- Daily Power Consumption (W) [FZL-P40V590]: 2.75
- Noise (dB) [UNVERIFIED — 2 values, 4 models, check manually]: 40 | 42
- Power Supply: 220/110 V, 50/60 Hz
- Display: Digital Display
- Inside Material: SUS304
- Outside Material [UNVERIFIED — 2 values, 4 models, check manually]: Powder-coated Cold-rolled Steel Plate | Cold Plate Spray Coating
- Alarm [UNVERIFIED — 2 values, 4 models, check manually]: High/low temperature, Power failure, Sensor error, Thermostat failure, Low battery, High ambient temperature, Door ajar, Power failure alarm (for controller) | High/low temperature, Power failure, Abnormal voltage, Sensor error, Thermostat failure, Low battery, High ambient temperature, Door ajar, Power failure alarm (for controller)
- Exterior Size (W×D×H)(mm) [FZL-P30V300]: 695×708×1880
- Exterior Size (W×D×H)(mm) [FZL-P30V500]: 695×993×1880
- Exterior Size (W×D×H)(mm) [FZL-P40V440]: 695×1013×1880
- Exterior Size (W×D×H)(mm) [FZL-P40V590]: 845×1013×1880
- Package Size (W×D×H)(mm) [FZL-P30V300]: 762×765×2048
- Package Size (W×D×H)(mm) [FZL-P30V500]: 780×1065×1983
- Package Size (W×D×H)(mm) [FZL-P40V440]: 795×1085×1994
- Package Size (W×D×H)(mm) [FZL-P40V590]: 945×1085×1994
- Accessory [UNVERIFIED — 2 values, 4 models, check manually]: 4 pcs. Castor; | 4 pcs. Castor;
- 1/Foamed Outer door: 4 Inside door
- 2 pc Test hole, 25 mm diameter;: 2 pc Test hole, 25 mm diameter;
- Door Lock: USB port
- USB port: RS485 port (Optional)
- Data logger: Data logger
- Remote alarm port: Remote alarm port
- N.W./G.W. (kg) [FZL-P30V300]: 115/135
- N.W./G.W. (kg) [FZL-P30V500]: 150/175
- N.W./G.W. (kg) [FZL-P40V440]: 145/170
- N.W./G.W. (kg) [FZL-P40V590]: 180/200
