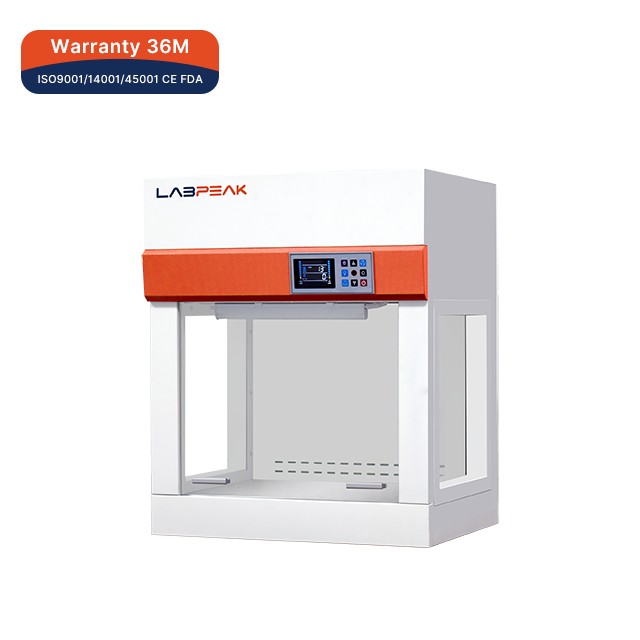

Mini Laminar Flow Cabinet

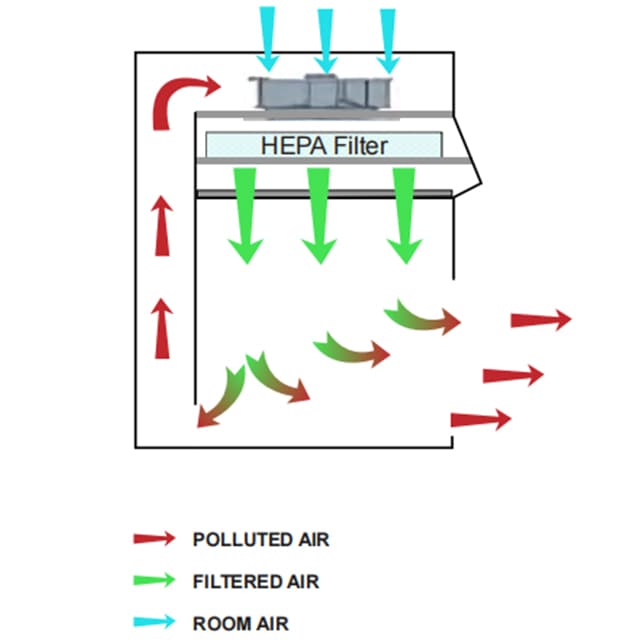

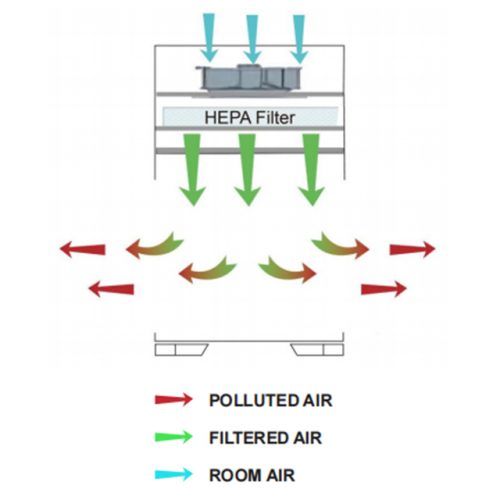

The mini vertical laminar flow cabinet ensures sample protection by directing purified air through the working area in a vertical, unidirectional flow, exiting through the entire open front of the unit. Additionally, the back wall of the work zone is equipped with perforations, which help reduce air
Specifications
- Model
- LCB-LP500II
- Noise
- ≤62db
- HEPA Filter
- 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Airflow Pattern
- Vertical
- Max Door Opening
- 310mm
- Air Speed Adjustable
- 0.2-0.6 (m/s)
- Internal Size (WxDxH)(mm)
- 480x340x370
Full specification sheet
- Model: LCB-LP500II
- External Size (WxDxH)(mm): 580x460x700
- Internal Size (WxDxH)(mm): 480x340x370
- Max Opening: 310mm
- Control System: Microprocessor controller with LCD display, display the operating status of each function
- Airflow System Airflow Velocity: 0.2~0.6m/s, Intelligent multi-level adjustable
- Air filtration System Pre-Filter: 1pcs, Polyester fiber, washable
- HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Cleanliness Grade: ISO Class 5 (formerly Class 100)
- Partial air circulation: Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
- Cabinet Construction Main Body: Electro-galvanized steel with antimicrobial powder coating
- Work Surface: 304 Stainless steel
- Front Window: Manual, 5 mm UV resistant tempered glass
- Electrical System UV Lamp: 8Wx1
- LED Lamp: 8Wx1
- Consumption: 110W
- Power Supply: AC220V±10%, 50/60HZ; 110V±10%, 60Hz
- Sound Emission: ≤62db
- Colony Count: ≤0.5pcs/vessel (petri dish is φ 90mm)
- Vibration: ≤3um
- Work Surface Bearing: 10kg
- Standard Accessory: 1.LED Lampx1; 2.UV Lampx1; 3.Pre-filterx1; 4.HEPA Filterx1
- Net Weight: 36kg
- Gross Weight: 41kg
- Shipping Size (W×D×H)(mm): 710×590×850
- Shipping Volume: 0.36m³
