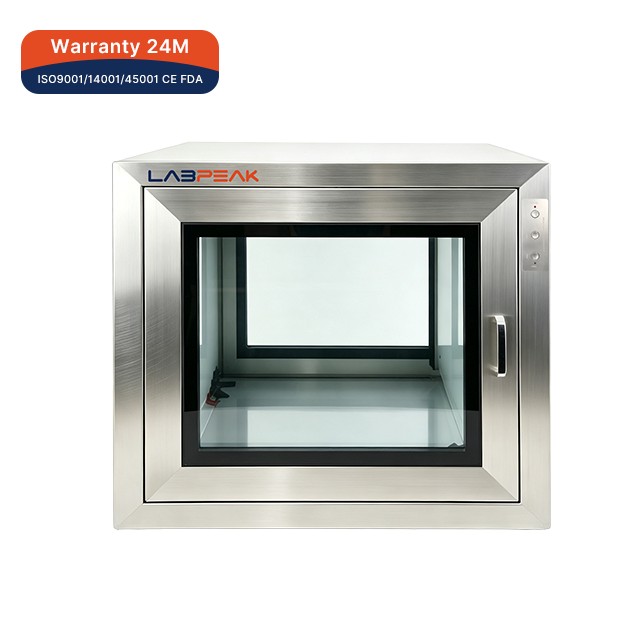

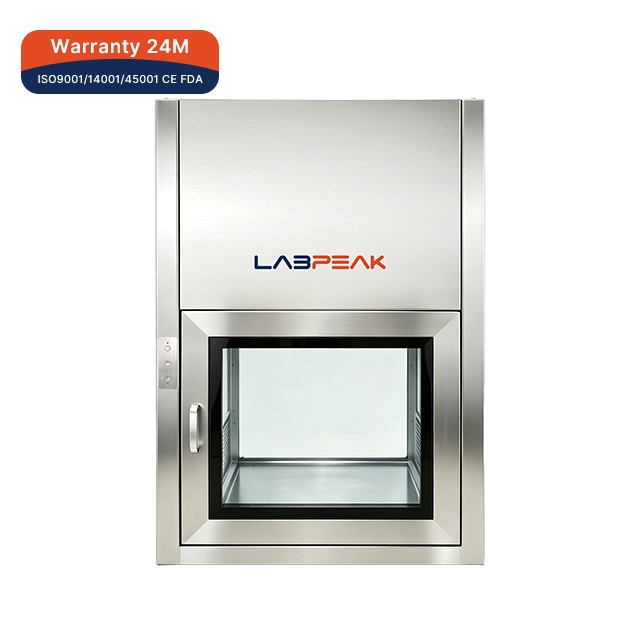

Pass Box ASPB-H/PB-H Series
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Pass box is a critical air purification accessory for cleanrooms, serving as a sealed passage between areas of differing cleanliness levels, designed specifically for the safe, contamination-free transfer of materials. Commonly used in industries with stringent air cleanliness requirements, such as
Specifications
- Models
- ASPB-LP1H; ASPB-LP2H; ASPB-LP3H; PB-LP1H; PB-LP2H; PB-LP3H
- UV Lamp
- 8W×1
- Interlock
- Electronical
- Structure
- Flush door
- HEPA Filter
- Efficiency 99.999% at 0.3 μm
- Clean Air Speed
- 0.36–0.54 m/s
Full specification sheet
- Type [Air Shower Pass Box]: Air Shower Pass Box
- Type [Pass Box]: Pass Box
- Model [UNVERIFIED — 6 values, 2 models, check manually]: ASPB-LP1H | ASPB-LP2H | ASPB-LP3H | PB-LP1H | PB-LP2H | PB-LP3H
- Internal Size (W×D×H)(mm) [UNVERIFIED — 6 values, 2 models, check manually]: 500×500×500 | 600×600×600 | 700×700×700 | 500×500×500 | 600×600×600 | 700×700×700
- External Size (W×D×H)(mm) [UNVERIFIED — 6 values, 2 models, check manually]: 710×580×1040 | 810×680×1140 | 910×780×1240 | 710×580×620 | 810×680×720 | 910×780×820
- Material: 304 Stainless steel
- Interlock: Electronical
- UV Lamp: 8W×1
- HEPA Filter [UNVERIFIED — 4 values, 2 models, check manually]: Efficiency 99.999% at 0.3μm | / | / | /
- Clean Air Speed [UNVERIFIED — 4 values, 2 models, check manually]: 0.36–0.54 m/s | / | / | /
- Gross Weight (kg) [UNVERIFIED — 6 values, 2 models, check manually]: 75 | 95 | 105 | 50 | 70 | 80
- Package Size (W×D×H)(mm) [UNVERIFIED — 6 values, 2 models, check manually]: 800×700×1250 | 900×800×1350 | 1000×900×1450 | 800×700×750 | 900×800×850 | 900×900×950
