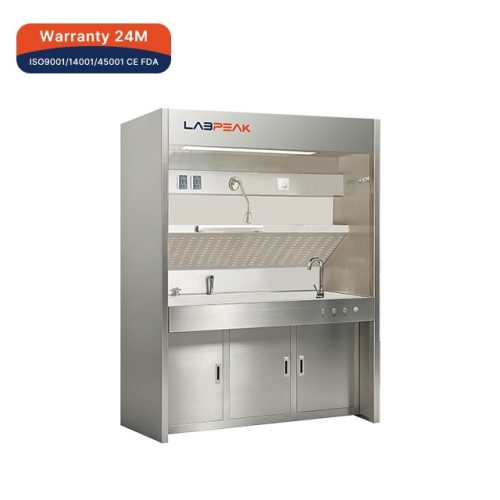

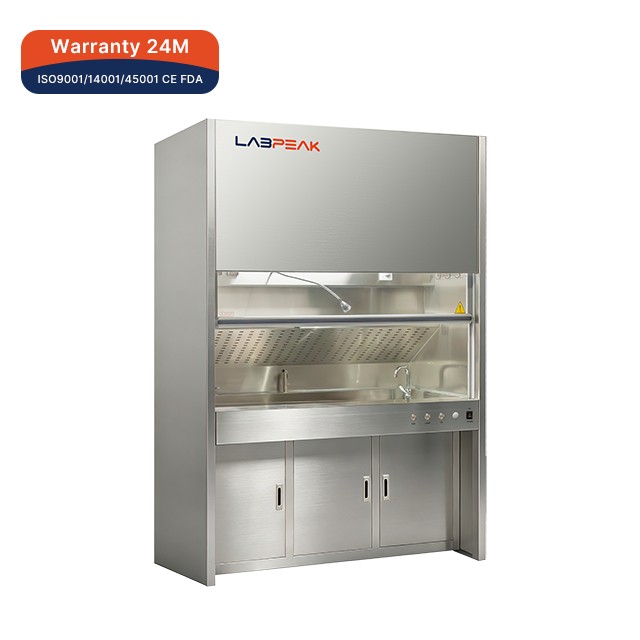

Pathology Workstation/Grossing Station, Closed Type
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Pathology workstation, typically located in pathology labs or anatomy, for receiving, gross examination, sampling, recording, and temporarily storing pathological specimens. Widely used in routine pathological diagnosis, intraoperative rapid pathology, research specimen dissection, and teaching spec
Specifications
- Type
- Closed type, with motorized glass door
- Model
- PW-LP1000F; PW-LP1500F; PW-LP1800F
- Construction
- Stainless steel
- Work Surface Height
- 900 mm
Full specification sheet
- Model [PW-LP1000F]: PW-LP1000F
- Model [PW-LP1500F]: PW-LP1500F
- Model [PW-LP1800F]: PW-LP1800F
- Type: Closed type, with motorized glass door
- External Size (W×D×H)(mm) [PW-LP1000F]: 1000×760×1950
- External Size (W×D×H)(mm) [PW-LP1500F]: 1500×760×1950
- External Size (W×D×H)(mm) [PW-LP1800F]: 1800×760×1950
- Working Area Size (W×D×H)(mm) [PW-LP1000F]: 895×430×50
- Working Area Size (W×D×H)(mm) [PW-LP1500F]: 1395×430×50
- Working Area Size (W×D×H)(mm) [PW-LP1800F]: 1695×430×50
- Work Surface Height: 900 mm
- Exhaust Airflow Volume: 1000–1200 m³/h
- Construction Main Body: 304 stainless steel
- Work Surface: 304 stainless steel
- Electrical System [UNVERIFIED — 4 values, 3 models, check manually]: LED Lamp | 24W×1 | 36W×1 | 36W×1
- UV Lamp [PW-LP1000F]: 15W×1
- UV Lamp [PW-LP1500F]: 15W×1
- UV Lamp [PW-LP1800F]: 20W×1
- Standard Accessory: LED lamp×1
- Standard Accessory: UV lamp×1
- Standard Accessory: Spotlight×1
- Standard Accessory: Water-proof socket×2
- Standard Accessory: Adjustable hot and cold water tap
- Standard Accessory: (need to choose optional electrical water heater, then use hot water)
- Standard Accessory: Telescopic faucet
- Standard Accessory: Stainless steel water sink
- Standard Accessory: Magnetic tool holder
- Standard Accessory: Activated carbon filter
- Standard Accessory: 4 m exhaust PVC duct (Diameter: 300 mm)
- Optional Accessory: 316 SS work surface, thickness: 2 mm
- Optional Accessory: Pulverizer
- Optional Accessory: Camera
- Optional Accessory: 25x magnifier
- Optional Accessory: Electrical water heater
- Optional Accessory: External exhaust blower
- Power Supply: AC 220±10%V, 50/60 Hz; 110±10% V, 60 Hz
- Consumption: 700 W
- Shipping Size (W×D×H)(mm) [PW-LP1000F]: 1180×910×2150
- Shipping Size (W×D×H)(mm) [PW-LP1500F]: 1680×910×2150
- Shipping Size (W×D×H)(mm) [PW-LP1800F]: 1980×910×2150
- G.W. (kg) [PW-LP1000F]: 270
- G.W. (kg) [PW-LP1500F]: 335
- G.W. (kg) [PW-LP1800F]: 380
