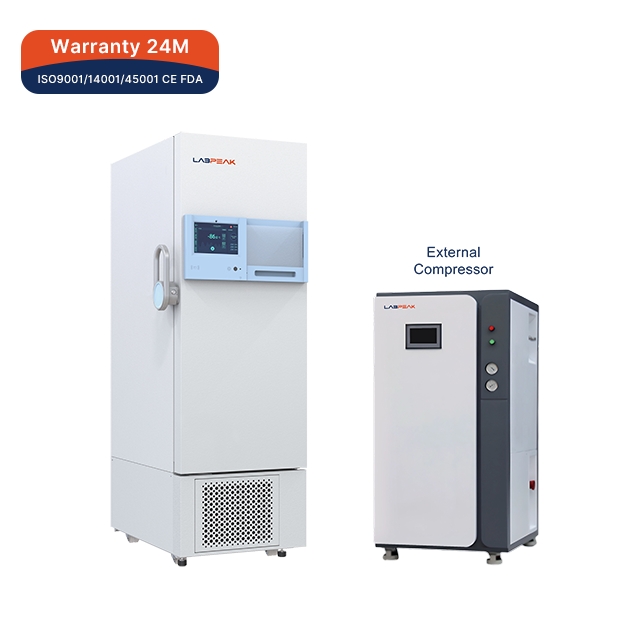

Plasma Blast Freezer
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
The plasma freezer (plasma blast freezer) is an innovative sample preparation device specifically designed for the rapid freezing and preservation of the biological activity of labile substances, such as plasma, vaccines, and other biological samples. Plasma freezers can precisely meet the operation
Specifications
- Model
- PQFL-P420; PQFL-P590; PQFL-P860
- Sensor
- PT1000
- Capacity
- 425, 585, 860
- Cooling Mode
- Forced air
- Temperature Range
- -40 to -86 °C
- Temperature Controller
- Electronic
Full specification sheet
- Model [PQFL-P420]: PQFL-P420
- Model [PQFL-P590]: PQFL-P590
- Model [PQFL-P860]: PQFL-P860
- Capacity [PQFL-P420]: 425
- Capacity [PQFL-P590]: 585
- Capacity [PQFL-P860]: 860
- Temperature Range: -40 to -86°C
- Sensor: PT1000
- Temperature Controller: Electronic
- Cooling Mode: Forced air
- Cooling Liquid: Green cooling liquids (R290/R170)
- Compressor Qty: 2
- Shelf/Drawer Qty: 3
- Refrigerant Weight (g) [PQFL-P420]: 178
- Refrigerant Weight (g) [PQFL-P590]: 196
- Refrigerant Weight (g) [PQFL-P860]: 320
- Consumption (W) [PQFL-P420]: 650
- Consumption (W) [PQFL-P590]: 650
- Consumption (W) [PQFL-P860]: 700
- Daily Power Consumption (W) [PQFL-P420]: 7.85
- Daily Power Consumption (W) [PQFL-P590]: 8.05
- Daily Power Consumption (W) [PQFL-P860]: 9.45
- Noise: 45 dB
- Display: Digital temperature display
- Inside Material: SUS304
- Outside Material: Zinc-iron alloy with spray coating
- Alarm: High/Low Temperature;
- Alarm: Sensor Error;
- Alarm: Door Ajar;
- Power Supply: 220/110 V, 50/60 Hz
- Exterior Size (W×D×H) [PQFL-P420]: 750×988×2187 mm
- Exterior Size (W×D×H) [PQFL-P590]: 900×988×2190
- Exterior Size (W×D×H) [PQFL-P860]: 1172×988×1987
- Package Size (W×D×H) [PQFL-P420]: 840×1120×2280 mm
- Package Size (W×D×H) [PQFL-P590]: 990×1110×2380
- Package Size (W×D×H) [PQFL-P860]: 1254×1110×2400
- Accessory: 4 pcs Caster;
- Accessory: 2 pcs Foot;
- Accessory: Padlock Adapter Kit;
- Accessory: Built-in Key Door Lock;
- N.W./G.W. [PQFL-P420]: 365/405 kg
- N.W./G.W. [PQFL-P590]: 410/455 kg
- N.W./G.W. [PQFL-P860]: 480/536 kg
