LABPEAKBiological Safety Cabinets & Laminar Flow

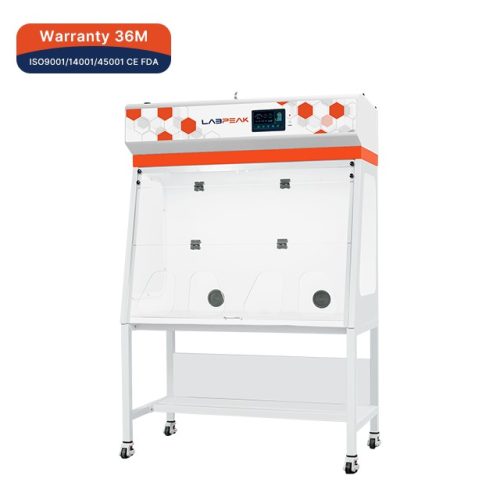

PP Fume Hood
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also
Specifications
- Model
- FMH-DP-LP1000; FMH-DP-LP1200; FMH-DP-LP1500; FMH-DP-LP1800
- Max Opening
- 740mm
- Air Velocity
- 0.3~0.8 m/s, speed adjustable
- Work Surface Height
- 820mm
Full specification sheet
- Model [FMH-DP-LP1000]: FMH-DP-LP1000
- Model [FMH-DP-LP1200]: FMH-DP-LP1200
- Model [FMH-DP-LP1500]: FMH-DP-LP1500
- Model [FMH-1800DP]: FMH-1800DP
- External Size (W×D×H)(mm) [FMH-DP-LP1000]: 1047×800×2450
- External Size (W×D×H)(mm) [FMH-DP-LP1200]: 1247×800×2450
- External Size (W×D×H)(mm) [FMH-DP-LP1500]: 1547×800×2450
- External Size (W×D×H)(mm) [FMH-1800DP]: 1847×800×2450
- Internal Size (W×D×H)(mm) [FMH-DP-LP1000]: 787×560×700
- Internal Size (W×D×H)(mm) [FMH-DP-LP1200]: 987×560×700
- Internal Size (W×D×H)(mm) [FMH-DP-LP1500]: 1287×560×700
- Internal Size (W×D×H)(mm) [FMH-1800DP]: 1587×560×700
- Max.Opening: 740 mm
- Work Surface Height: 820 mm
- Control System Display: Microprocessor controller with LCD display, display the operating status of each function
- Airflow System Airflow Velocity: 0.3–0.8 m/s, speed adjustable
- Cabinet Construction Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
- Work Surface: Chemical resistant phenolic resin
- Front Window: Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali
- Electrical System [UNVERIFIED — 5 values, 4 models, check manually]: LED Lamp | 16W×2 | 16W×2 | 30W×2 | 36W×2
- Blower: Built-in PP centrifugal blower (2 blowers for FMH-1800DP only); Speed adjustable
- Consumption [FMH-DP-LP1000]: 450W
- Consumption [FMH-DP-LP1200]: 450W
- Consumption [FMH-DP-LP1500]: 450W
- Consumption [FMH-1800DP]: 900W
- Consumption: Not include socket loading power consumption
- Power Supply: AC 220±10% V, 50/60 Hz; 110±10% V, 60 Hz
- Illumination: ≥900 Lux
- Sound Emission: ≤68 dB(A)
- Standard Accessory: 1. Base Cabinet;
- Standard Accessory: 2. LED Lamp;
- Standard Accessory: 3. Waterproof Socket×2;
- Standard Accessory: 4. Water Tap (PP);
- Standard Accessory: 5. Gas Tap (PP);
- Standard Accessory: 6. Gas & Water Remote Control Valve;
- Standard Accessory: 7. PP Water Sink;
- Standard Accessory: 8. Work Table: Solid physicochemical board, resistant to acid and alkali;
- Standard Accessory: 9. PP Centrifugal Blower×1(2 for FMH-1800DP only);
- Standard Accessory: 10.10 m PVC aluminum foil composite exhaust duct, Diameter: 250mm;
- Standard Accessory: (2 pcs of 10m exhaust duct for FMH-1800DP only, duct is retractable and can be cut freely.)
- Standard Accessory: Pipe strap ×2 (4 pcs for FMH-1800DP only);
- Optional Accessory: 1. PP Work Table, epoxy resin board
- Optional Accessory: 2. Active Carbon Filter;
- Gross Weight (kg) [UNVERIFIED — 5 values, 4 models, check manually]: Main Body | 137 | 155 | 180 | 206
- Base Cabinet [FMH-DP-LP1000]: 89
- Base Cabinet [FMH-DP-LP1200]: 99
- Base Cabinet [FMH-DP-LP1500]: 114
- Base Cabinet [FMH-1800DP]: 140
- Shipping Size (W×D×H) (mm) [UNVERIFIED — 5 values, 4 models, check manually]: Main Body | 1188×938×1612 | 1388×938×1612 | 1688×938×1612 | 1988×938×1612
- Base Cabinet [FMH-DP-LP1000]: 1188×888×1000
- Base Cabinet [FMH-DP-LP1200]: 1388×888×1000
- Base Cabinet [FMH-DP-LP1500]: 1688×888×1000
- Base Cabinet [FMH-1800DP]: 1988×888×1000
- Shipping Volume (m³) [FMH-DP-LP1000]: 2.9
- Shipping Volume (m³) [FMH-DP-LP1200]: 3.4
- Shipping Volume (m³) [FMH-DP-LP1500]: 4.1
- Shipping Volume (m³) [FMH-1800DP]: 4.8
