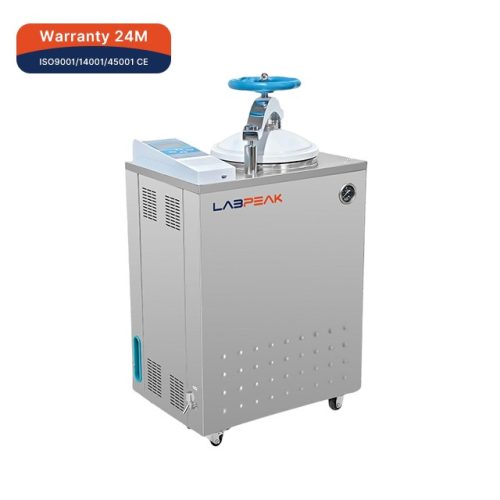

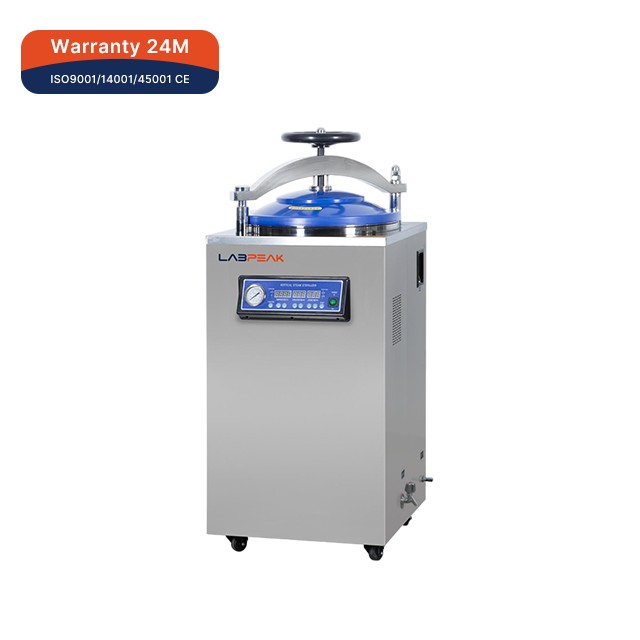

Vertical Pressure Steam Sterilizer, Self-control Drying
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Our self-control drying vertical pressure steam sterilizer leverages mature moist-heat sterilization technology to deliver highly efficient and reliable performance. It is widely adaptable to a diverse range of medical and laboratory applications and establishes a robust foundation for aseptic opera
Specifications
- Model
- STL-PV35G; STL-PV50G; STL-PV75G; STL-PV100G
- Capacity (L)
- 35, 50, 75, 100
- Rated Working Pressure
- 0.22 MPa
- Rated Working Temperature
- 134°C
- Sterilization Time Setting Range
- 4–120 min
- Sterilization Temperature Setting Range
- 116–134 °C
Full specification sheet
- Model [STL-PV35G]: STL-PV35G
- Model [STL-PV50G]: STL-PV50G
- Model [STL-PV75G]: STL-PV75G
- Model [STL-PV100G]: STL-PV100G
- Capacity (L) [STL-PV35G]: 35
- Capacity (L) [STL-PV50G]: 50
- Capacity (L) [STL-PV75G]: 75
- Capacity (L) [STL-PV100G]: 100
- Consumption (kW) [STL-PV35G]: 3.5
- Consumption (kW) [STL-PV50G]: 3.5
- Consumption (kW) [STL-PV75G]: 4.5
- Consumption (kW) [STL-PV100G]: 4.5
- Power Supply: 220/110 V, 50/60 HZ
- Rated Working Pressure: 0.22 MPa
- Rated Working Temperature: 134 ℃
- Sterilization Temperature Setting Range: 116–134 ℃
- Sterilization Time Setting Range: 4–120 min
- Drying Time Setting Range: 0–240 min
- Chamber Size (mm) [STL-PV35G]: Φ300×450
- Chamber Size (mm) [STL-PV50G]: Φ350×525
- Chamber Size (mm) [STL-PV75G]: Φ400×625
- Chamber Size (mm) [STL-PV100G]: Φ450×650
- Bucket Size [STL-PV35G]: Φ275×395
- Bucket Size [STL-PV50G]: Φ325×235×2
- Bucket Size [STL-PV75G]: Φ375×265×2
- Bucket Size [STL-PV100G]: Φ425×275×2
- Basket Size [STL-PV35G]: Φ270×380
- Basket Size [STL-PV50G]: Φ320×220×2
- Basket Size [STL-PV75G]: Φ370×250×2
- Basket Size [STL-PV100G]: Φ420×265×2
- External Size (mm) [STL-PV35G]: 476×473×990
- External Size (mm) [STL-PV50G]: 544×536×1100
- External Size (mm) [STL-PV75G]: 586×576×1210
- External Size (mm) [STL-PV100G]: 620×610×1275
- Shipping Size (W×D×H)(mm) [STL-PV35G]: 580×630×1130
- Shipping Size (W×D×H)(mm) [STL-PV50G]: 580×630×1230
- Shipping Size (W×D×H)(mm) [STL-PV75G]: 630×680×1290
- Shipping Size (W×D×H)(mm) [STL-PV100G]: 690×650×1410
- N.W/G.W (kg) [STL-PV35G]: 58/79
- N.W/G.W (kg) [STL-PV50G]: 80/106
- N.W/G.W (kg) [STL-PV75G]: 90120
- N.W/G.W (kg) [STL-PV100G]: 106/133
