LABPEAKPCR & Molecular Biology

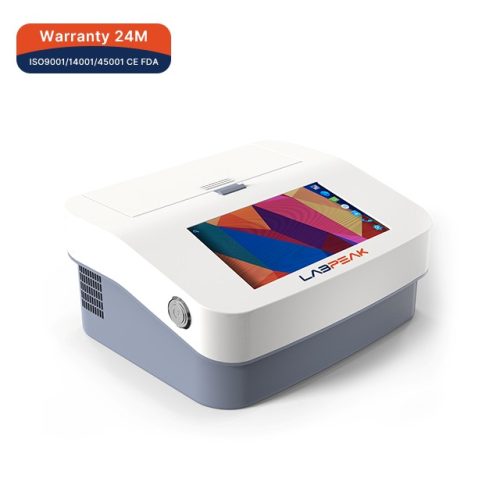

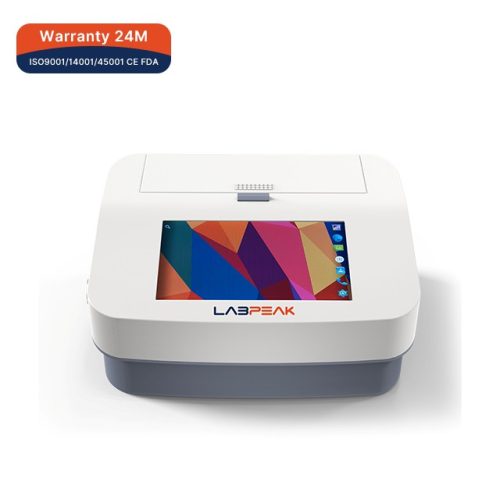

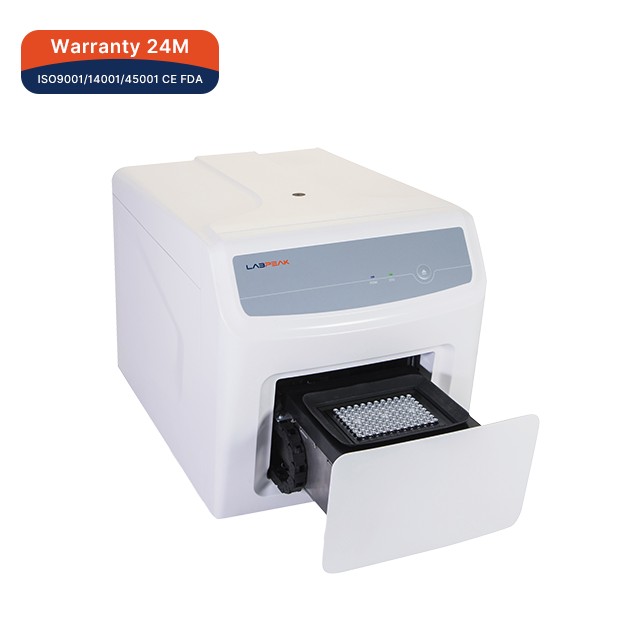

Real-time Fluorescence qPCR Detection System
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
This real-time fluorescence qPCR detection system employs cutting-edge technology and scanning methods. It delivers reliable test results, making it an ideal choice for quantitative analysis, scientific research, and safety testing.
Specifications
- Model
- LQPCR-M964; LQPCR-M966
- MAX. Ramp Rate
- 6 ℃/s
- Reaction Volume
- 10-50 μL
- Sample Capacity
- 0.1/0.2 mL PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Full specification sheet
- Model [LQPCR-M964]: LQPCR-M964
- Model [LQPCR-M966]: LQPCR-M966
- Sample Capacity: 0.1/0.2 mL PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
- Reaction Volume: 10-50 μL
- Thermal Cycle Technology: Peltier
- Thermal Cycle Technology: Temperature Control System
- Max. Heating/Cooling Rate: 6.0°C/s
- Heating Temperature Range: 4-100°C
- Temperature Accuracy: ± 0.2°C
- Temperature Uniformity: ±0.2 ℃ @ 60 ℃, ±0.3 ℃ @95 ℃
- Temperature Gradient Setting Range: 30-100°C
- Temperature Gradient Difference Setting Range: 1-36°C
- Temperature Gradient Difference Setting Range: Detection System
- Excitation Light Source [LQPCR-M964]: 4 monochrome high efficiency LED
- Excitation Light Source [LQPCR-M966]: 6 monochrome high efficiency LED
- Detection Device: PMT
- Detection Mode: Time-resolved signal separating technology
- Excitation/Detection Wavelength Range: 455-680nm/ 510-730nm
- Fluorescent Channel [LQPCR-M964]: 4 channels
- Fluorescent Channel [LQPCR-M966]: 6 channels
- Supported Dye: FAM/SYBR Green, VIC/HEX ROX, Cy5, Cy3 (only for PCR-RFQ96I)
- Sensitivity: Single copy gene
- Resolution: 1.33 folds copy number difference can be distinguished in single-plex qPCR
- Dynamic Range: 10 orders of magnitude copies
- Sizes (W×D×H): 720×560×620 mm
- Shipping Size(W×D×H): 980×680×780 mm
- N.W./G.W.: 36/50 kg
