LABPEAKPCR & Molecular Biology

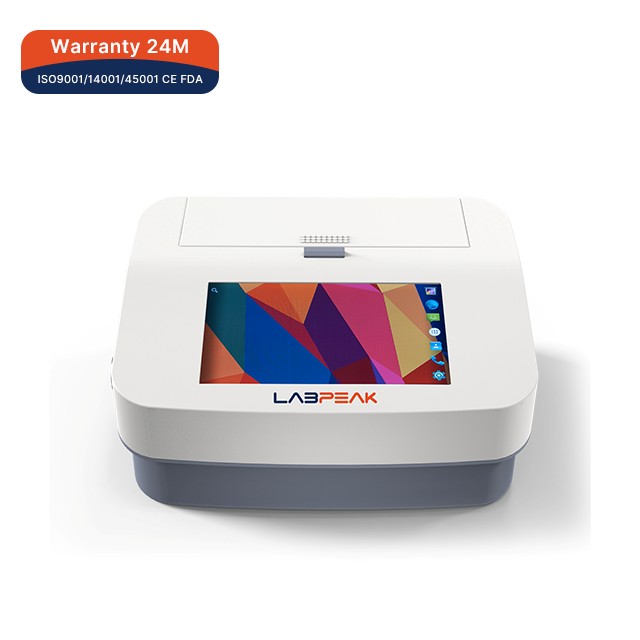

Real-time Fluorescence qPCR Detection System
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
The real-time fluorescence qPCR detection system efficiently completes routine qPCR experiments in 30 to 40 minutes. It helps you overcome the limitations of traditional laboratory environments and perform testing in a wide variety of settings.
Specifications
- Model
- LQPCR-162; LQPCR-164
- Reaction Volume
- 10–50 μL
- Sample Capacity
- 16 wells, compatible with 0.2 mL PCR single tubes or PCR 8-strip tubes
- Thermal Cycle Technology
- Peltier
- Max.Temperature Change Rate
- 6.0°C/s
Full specification sheet
- Model [LQPCR-162]: LQPCR-162
- Model [LQPCR-164]: LQPCR-164
- Channel [LQPCR-162]: Dual channels
- Channel [LQPCR-164]: Four channels
- Sample Capacity: 16 wells, compatible with 0.2 mL PCR single tubes or PCR 8-strip tubes
- Reaction Volume: 10–50 μL
- Thermal Cycle Technology: Peltier
- Max.Temperature Change Rate: 6.0 °C/s
- Heating Temperature Range: 10–100 ℃
- Uniformity: ±0.2 ℃ @60 ℃, ±0.3 ℃ @95 ℃
- Temperature Accuracy: ±0.2 ℃
- Display Resolution: ±0.1 ℃
- Excitation Light Source: High efficiency LED
- Detection Device: PMT
- Detection Mode: Linear fast well-by-well scanning
- Fluorescent Channel [LQPCR-162]: FAM/SYBR, VIC/HEX
- Fluorescent Channel [LQPCR-164]: FAM/SYBR, VIC/HEX, ROX, Cy5
- Sensitivity: Single copy gene
- Dynamic Range: 10 orders of magnitude copies
- Power Supply: AC 220/110 V, 50/60 Hz
- External Size (W×D×H): 225×270×132 mm
- Shipping Size (W×D×H): 360×490×260 mm
- N.W/G.W.: 4/7.5 kg
