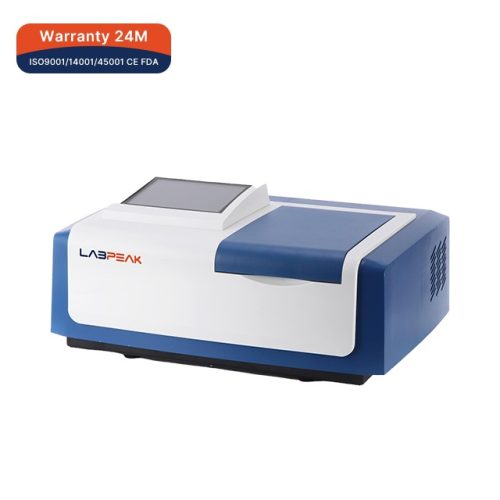

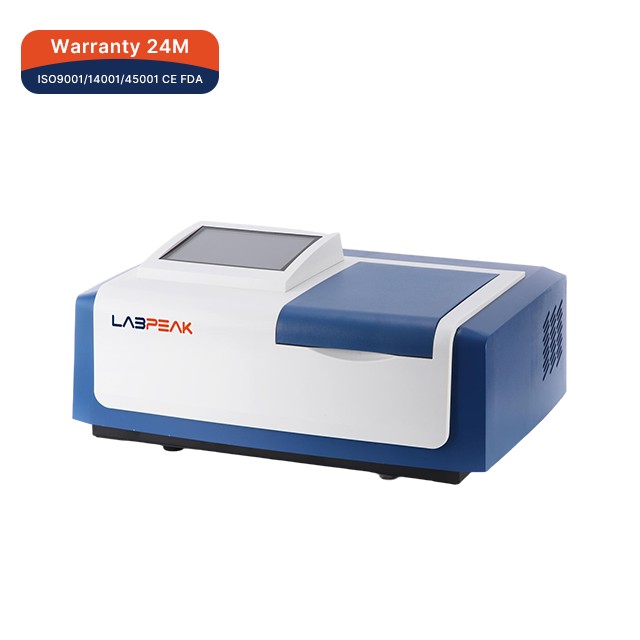

Split Beam UV Vis Spectrophotometer SPL-PVL Series
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
The UV-Vis spectrophotometer features a reliable power protection system and delivers consistent results in both qualitative and quantitative analysis. With large internal storage, it can retain test data, spectra, regression equations, and calibration information. Built for durability and stability
Specifications
- Model
- SPL-PVL3S; SPL-PVL3
- Grating
- 1200 lines/mm
- Detector
- Silicon Photocell
- Photometry
- Split Beam
- Focal Length
- 160 mm
Full specification sheet
- Model [SPL-PVL3S]: SPL-PVL3S
- Model [SPL-PVL3]: SPL-PVL3
- Photometry: Split Beam
- Monochromator Type: Czerny-Turner
- Focal Length: 160 mm
- Grating: 1200 lines/mm
- Detector: Silicon Photocell
- Spectrum Bandwidth: 1.8 nm
- Wavelength Setting: 8-inch color touch-screen
- Wavelength Range: 325-1100 nm
- Wavelength Accuracy: ±0.5 nm
- Wavelength Repeatability: ≤0.2 nm
- Scanning Speed: Fast-Medium-Slow
- Stray Light: ≤0.03%T (at 360 nm NaNo2)
- Photometric Range: 0.0-200.0% T
- Photometric Range: -0.301-4.000 A
- Photometric Range: 0.000-9999 C
- Photometric Accuracy: ±0.5% T
- Photometric Accuracy: ±0.002 Abs (0-0.5A)
- Photometric Accuracy: ±0.004 Abs (0.5-1A)
- Photometric Repeatability: ≤0.2% T
- Photometric Repeatability: 0.001 Abs (0-0.5A)
- Photometric Repeatability: 0.002 Abs (0.5-1A)
- Noise: 100%(T) noise≤0.2%(T) ;
- Noise: 0%（T）noise≤0.1%(T);
- Power: AC 220±22V, 50±1 Hz, 120 W
- Standrad Accessories: Operation manual 1pc;
- Standrad Accessories: Glass cuvette 10mm 4pcs;
- Standrad Accessories: Power cable 1pc;
- Standrad Accessories: Fuse 2pcs;
- Standrad Accessories: Cuvette holder 10mm 1pc
- Optional Accessories: UV WIN8 station pro software;
- Optional Accessories: Cuvette holder 50; 100 mm;
- Optional Accessories: Cuvette 20; 30; 50; 100 mm;
- External Size (W×D×H): 565×395×240 mm
- Shipping Size (W×D×H): 685×590×395 mm
- N.W/G.W.: 17.2 / 21.2 kg
