LABPEAKIncubators & Ovens

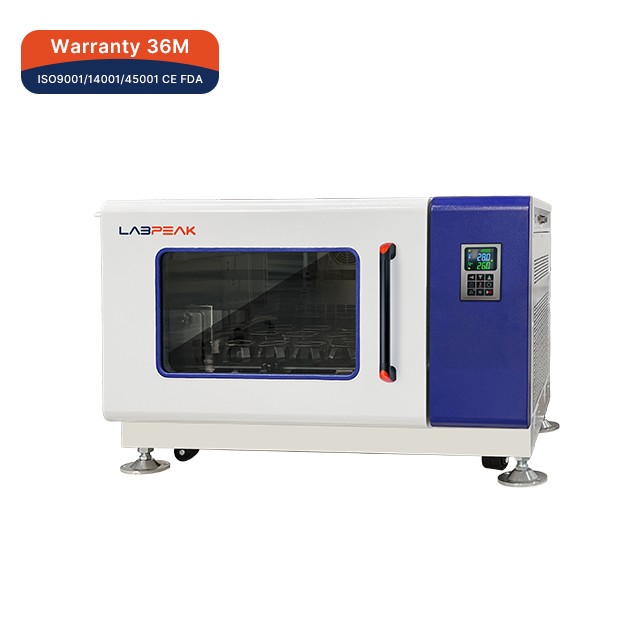

Stackable Incubator Shaker
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Stackable incubator shakers feature a unique modular stacking design with each tier operating independently without increasing the footprint. Applicable across the life sciences, biopharmaceutical, food and environmental monitoring industries. It is particularly well-suited to laboratories with limi
Specifications
- Model
- ICBL-PB160S; ICBL-PB315S; ICBL-PB160ST; ICBL-PB315ST
- Rotation Speed
- 2–300 rpm depending on load and stacking
- Shaking Motion
- Orbital
- Shaking Amplitude
- 26 mm
- Temp.Control Mode
- PID control mode
- Speed Control Accuracy
- 1 rpm
Full specification sheet
- Model [ICBL-PB160S]: ICBL-PB160S
- Model [ICBL-PB315S]: ICBL-PB315S
- Model [ICBL-PB160ST]: ICBL-PB160ST
- Model [ICBL-PB315ST]: ICBL-PB315ST
- Capacity (L) [ICBL-PB160S]: 160
- Capacity (L) [ICBL-PB315S]: 315
- Capacity (L) [ICBL-PB160ST]: 160
- Capacity (L) [ICBL-PB315ST]: 315
- Display [UNVERIFIED — 2 values, 4 models, check manually]: LCD display push-button operation panel | 7.0 inch LED touch operation screen
- Shaking Motion: Orbital
- Rotation Speed: 2–300 rpm depending on load and stacking
- Speed Control Accuracy: 1 rpm
- Shaking Amplitude: 26 mm
- Temp.Control Mode: PID control mode
- Temp.Control Range: 4–60 °C
- Temp.Display Resolution: 0.1 °C
- Temp.Distribution: ±0.5 °C at 37 °C
- Timer: 0–999.9 h
- Illumination: FI tube, 30 W
- Max. Loading (kg) [ICBL-PB160S]: 35
- Max. Loading (kg) [ICBL-PB315S]: 50
- Max. Loading (kg) [ICBL-PB160ST]: 35
- Max. Loading (kg) [ICBL-PB315ST]: 50
- Platform Size (mm) [ICBL-PB160S]: 590×465
- Platform Size (mm) [ICBL-PB315S]: 520×880
- Platform Size (mm) [ICBL-PB160ST]: 590×465
- Platform Size (mm) [ICBL-PB315ST]: 520×880
- Max. Capacity [ICBL-PB160S]: 35×250 mL or 24×500 mL or 15×1000 mL or 8×2000 mL
- Max. Capacity [ICBL-PB315S]: 60×250 mL or 40×500 mL or 24×1000 mL or 15×2000 mL
- Max. Capacity [ICBL-PB160ST]: 35×250 mL or 24×500 mL or 15×1000 mL or 8×2000 mL
- Max. Capacity [ICBL-PB315ST]: 60×250 mL or 40×500 mL or 24×1000 mL or 15×2000 mL
- Maximum Expansion: Stackable up to 3 units
- Optional Acessory: Sliding black window
- Power Supply: 100-240V, 50/60Hz
- Consumption (W) [ICBL-PB160S]: 1300
- Consumption (W) [ICBL-PB315S]: 1400
- Consumption (W) [ICBL-PB160ST]: 1300
- Consumption (W) [ICBL-PB315ST]: 1400
- Internal Size (W×D×H)(mm) [ICBL-PB160S]: 720×632×475
- Internal Size (W×D×H)(mm) [ICBL-PB315S]: 1050×730×475
- Internal Size (W×D×H)(mm) [ICBL-PB160ST]: 720×632×475
- Internal Size (W×D×H)(mm) [ICBL-PB315ST]: 1050×730×475
- External Size (W×D×H)(mm) [ICBL-PB160S]: 1000×725×620
- External Size (W×D×H)(mm) [ICBL-PB315S]: 1330×820×620
- External Size (W×D×H)(mm) [ICBL-PB160ST]: 1000×725×620
- External Size (W×D×H)(mm) [ICBL-PB315ST]: 1330×820×620
- Shipping Size (W×D×H)(mm) [ICBL-PB160S]: 1150×860×755
- Shipping Size (W×D×H)(mm) [ICBL-PB315S]: 1520×970×755
- Shipping Size (W×D×H)(mm) [ICBL-PB160ST]: 1150×860×755
- Shipping Size (W×D×H)(mm) [ICBL-PB315ST]: 1520×970×755
- N.W/G.W.(kg) [ICBL-PB160S]: 155/184
- N.W/G.W.(kg) [ICBL-PB315S]: 212/244
- N.W/G.W.(kg) [ICBL-PB160ST]: 155/185
- N.W/G.W.(kg) [ICBL-PB315ST]: 213/244
- Permissible Ambient Temperature & Humidity: 5–35 °C, 5–40 ℃, 80% RH
