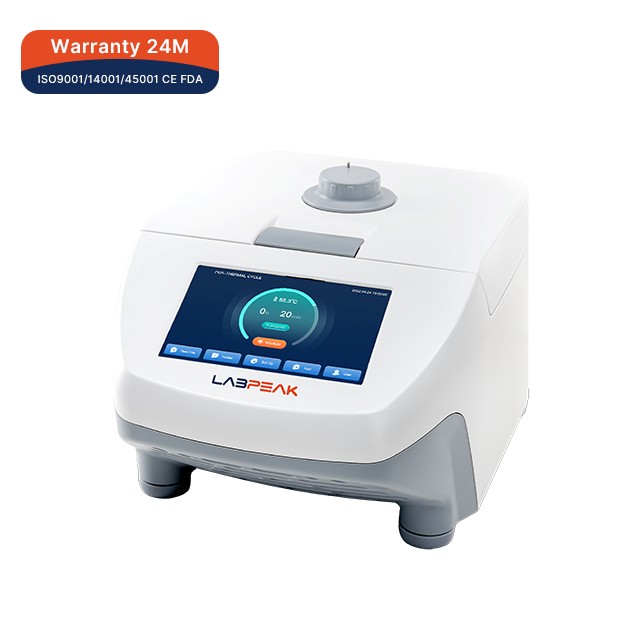

Thermal Cycler, 96-well

Specifications

Model

LPCR-G96

Sample Capacity

96×0.2 mL PCR tube, 8×12 PCR plate or 96 well plate

Lid Temperature Range

30-115 ℃

Heating Temperature Range

0-105℃

Max. Heating/Cooling Rate

5 ℃/Sec

Full specification sheet

• Model: LPCR-G96
• Sample Capacity: 96×0.2 mL PCR tube, 8×12 PCR plate or 96 well plate
• Heating Temperature Range: 0-105 ℃
• Lid Temperature Range: 30-115 ℃
• Temperature Display Accuracy: ±0.1 ℃
• Temperature Control Accuracy: ±0.1 ℃
• Temperature Uniformity (at 55℃): ±0.2 ℃
• Max. Heating/Cooling Rate: 5 ℃/Sec
• Gradient Temperature Setting Range: 30-105 ℃
• Gradient Range: 1-42 ℃
• Adapter Block Material: Aluminum
• Display: 7” LCD 800×480
• Input: Touch panel
• User Defined File System: Max. 30 segments 99 cycles max. 16 folder and 16 files each folder.
• Power off Protection: Yes
• Power Supply: AC100-120/200-240 V, 50/60 Hz
• Size(W×D×H): 280×370×250 mm
• Shipping Size(W×D×H): 610×440×450 mm
• N.W./G.W.: 11.6/15 kg
