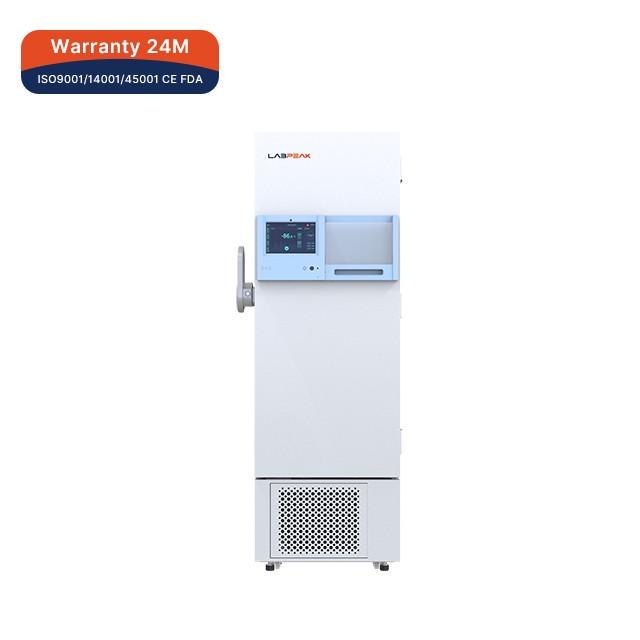

Ultra-Low Temperature Freezer, Touch Screen
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Ultra-low temperature freezer strictly adhering to management guidelines for clinical laboratories and bio-repositories. Designed for the deep cryogenic preservation of biological samples—including viruses, nucleic acids, tissues, cells, blood products, and vaccines. It meets the standardized storag
Specifications
- Model
- UFZL-P86V430E; UFZL-P86V590E; UFZL-P86V860E;
- Sensor
- PT1000
- Cooling Mode
- Direct cooling
- Temperature Range
- -40 to -86 °C
- Temperature Display Accuracy
- 0.1 °C
Full specification sheet
- Model [UFZL-P86V430E]: UFZL-P86V430E
- Model [UFZL-P86V590E]: UFZL-P86V590E
- Model [UFZL-P86V860E]: UFZL-P86V860E
- Capacity (L) [UFZL-P86V430E]: 420
- Capacity (L) [UFZL-P86V590E]: 570
- Capacity (L) [UFZL-P86V860E]: 850
- Temperature Range: -40 to -86 °C
- Temperature Display Accuracy: 0.1 °C
- Sensor: PT1000
- Cooling Mode: Direct cooling
- Cooling Liquid [UFZL-P86V430E]: Green cooling liquids (R290 100g, R170/78g)
- Cooling Liquid [UFZL-P86V590E]: Green cooling liquids (R290 110g, R170/86g)
- Cooling Liquid [UFZL-P86V860E]: Green cooling liquids (R290 120g, R170/100g)
- Defrost Mode: Manual defrost
- Compressor Qty: 2
- Stainless Steel Shelve: 3
- Inner Door: 4
- Rack [UFZL-P86V430E]: 12(5×5)
- Rack [UFZL-P86V590E]: 16(5×5)
- Rack [UFZL-P86V860E]: 24(5×5)
- Storage Capacity (2 Inches Boxe) [UFZL-P86V430E]: 300
- Storage Capacity (2 Inches Boxe) [UFZL-P86V590E]: 400
- Storage Capacity (2 Inches Boxe) [UFZL-P86V860E]: 600
- Samples (2 mL) [UFZL-P86V430E]: 30000
- Samples (2 mL) [UFZL-P86V590E]: 40000
- Samples (2 mL) [UFZL-P86V860E]: 60000
- Consumption (W) [UFZL-P86V430E]: 650
- Consumption (W) [UFZL-P86V590E]: 650
- Consumption (W) [UFZL-P86V860E]: 700
- Daily Power Consumption (W) [UFZL-P86V430E]: 7.85
- Daily Power Consumption (W) [UFZL-P86V590E]: 7.35
- Daily Power Consumption (W) [UFZL-P86V860E]: 8.15
- Noise (dB) [UFZL-P86V430E]: 39
- Noise (dB) [UFZL-P86V590E]: 39
- Noise (dB) [UFZL-P86V860E]: 42
- Power Supply: AC 220/110 V, 50/60 Hz
- Display: LCD touch screen
- Inside Material: SUS304
- Outside Material: Zinc-iron alloy spray coating
- Alarm: High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller)
- Exterior Size (W×D×H)(mm) [UFZL-P86V430E]: 750×955×1987
- Exterior Size (W×D×H)(mm) [UFZL-P86V590E]: 900×955×1987
- Exterior Size (W×D×H)(mm) [UFZL-P86V860E]: 1172×955×1987
- Package Size (W×D×H)(mm) [UFZL-P86V430E]: 832×1110×2150
- Package Size (W×D×H)(mm) [UFZL-P86V590E]: 990×1110×2150
- Package Size (W×D×H)(mm) [UFZL-P86V860E]: 1254×1110×2150
- Accessory: 4 pcs Castor
- Accessory: 2/25mm Test hole QTY/diameter;
- Accessory: USB port
- Accessory: Data logger
- Accessory: Remote alarm port;
- Optional Accessory: RS485 port;
- Optional Accessory: CO₂ backup system
- Optional Accessory: LN2 back up system
- N.W./G.W. (Kg) [UFZL-P86V430E]: 292/332
- N.W./G.W. (Kg) [UFZL-P86V590E]: 325/370
- N.W./G.W. (Kg) [UFZL-P86V860E]: 380/436
