LABPEAKSpectrophotometers & Colorimeters

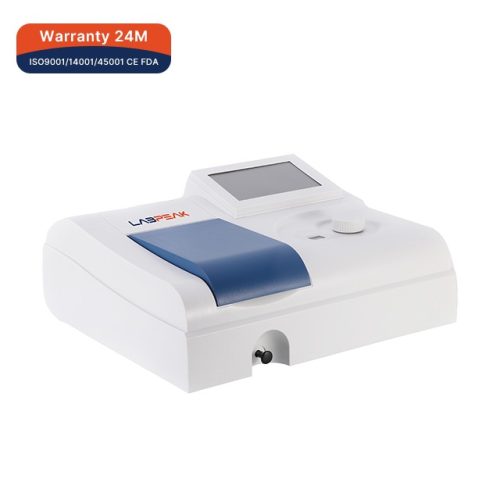

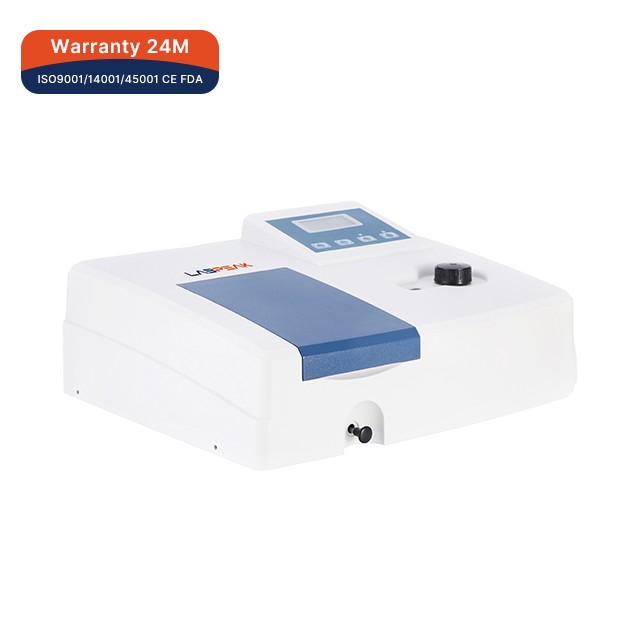

UV VIS Spectrophotometer with Manual Turn Knob
The UV-Vis spectrophotometer features a reliable power protection system and delivers consistent results in both qualitative and quantitative analysis. With large internal storage, it can retain test data, spectra, regression equations, and calibration information. Built for durability and stability
Specifications
- Model
- SPL-PUVG752
- Wavelength Range
- 200-1000nm
- Size(W×D×H)(mm)
- 450x370x210
- Wavelength Accuracy
- ±2nm
- Wavelength Repeatability
- ≤1nm
Full specification sheet
- Model: SPL-PUVG752
- Photometry: Single Beam
- Monochromator Type: Czerny-Turner
- Detector: Silicon Photocell
- Wavelength Setting: Manual Turn Knob
- Wavelength Range: 200-1000nm
- Wavelength Accuracy: ±2nm
- Wavelength Repeatability: ≤1nm
- Spectrum Bandwidth: 4nm
- Stray Light: ≤0.3%T (at 220nm NaI, 360nm NaNo2)
- Photometric Range: 0-100.0%T
- Photometric Range: 0-1.999A
- Photometric Range: 0-1999C
- Photometric Accuracy: ±0.5%T
- Photometric Repeatability: ≤0.2%T
- Noise: 100% (T) noise≤0.3% (T), 0% (T) noise≤0.2%(T)
- Drifting: ±0.5 %T/3min
- Cuvette Holder Size: 50mm
- Power: AC220V±22V, 50Hz±1Hz, 130W
- Size(W×D×H)(mm): 450x370x210
- Shipping Size(W×D×H)(mm): 560×490×285
- N.W./G.W. (kg): 14/18
