Vertical Freeze Dryer -60/-80℃ Condenser Temp
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Reliability:
Specifications
- Model
- FDL-P12S; FDL-P12P; FDL-P12T; FDL-P12PT
- Tray Size (ΦxH)(mm)
- Φ200×20
- Freeze Drying Area (㎡)
- 0.12 / 0.12 / 0.09 / 0.09
- Condenser Size (DiameterxH)(mm)
- Φ215×190
- Vacuum Degree (no-loading) (Pa)
- ≤5
Full specification sheet
- Model [FDL-P12S]: FDL-P12S
- Model [FDL-P12P]: FDL-P12P
- Model [FDL-P12T]: FDL-P12T
- Model [FDL-P12PT]: FDL-P12PT

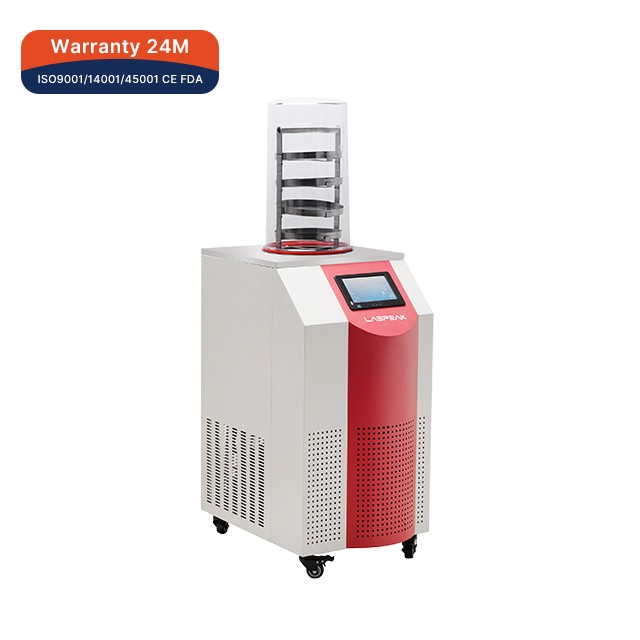

- Type [FDL-P12S]: Standard chamber

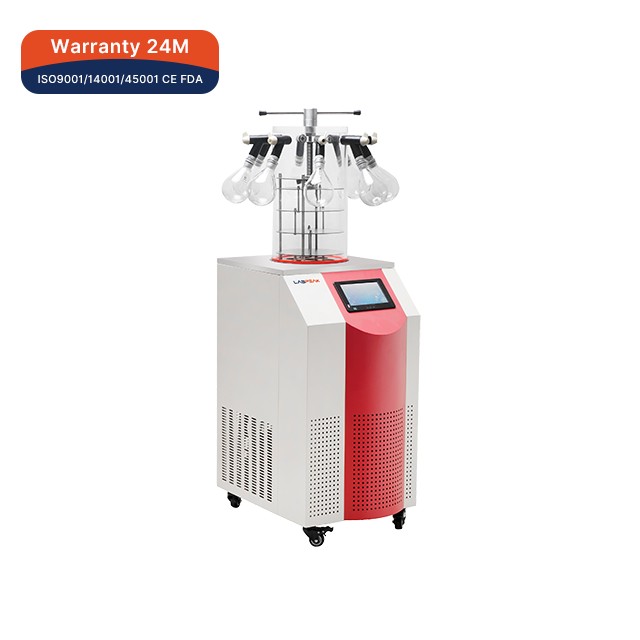

- Type [FDL-P12P]: Standard chamber with 8 port manifold

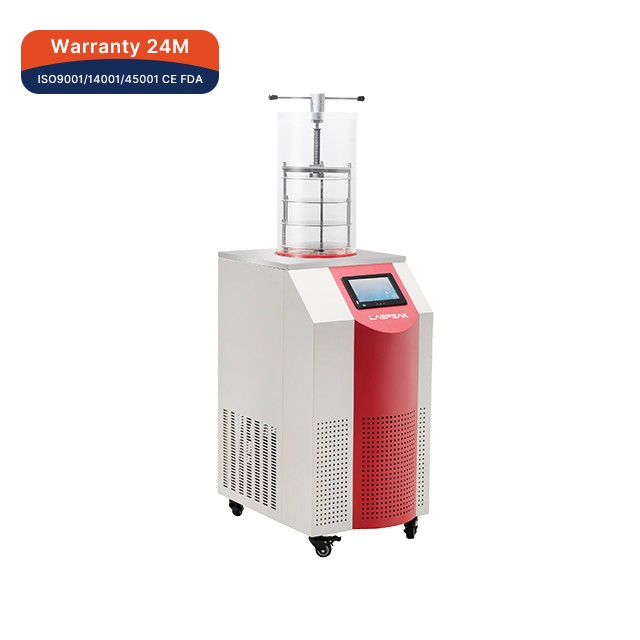

- Type [FDL-P12T]: Stoppering chamber

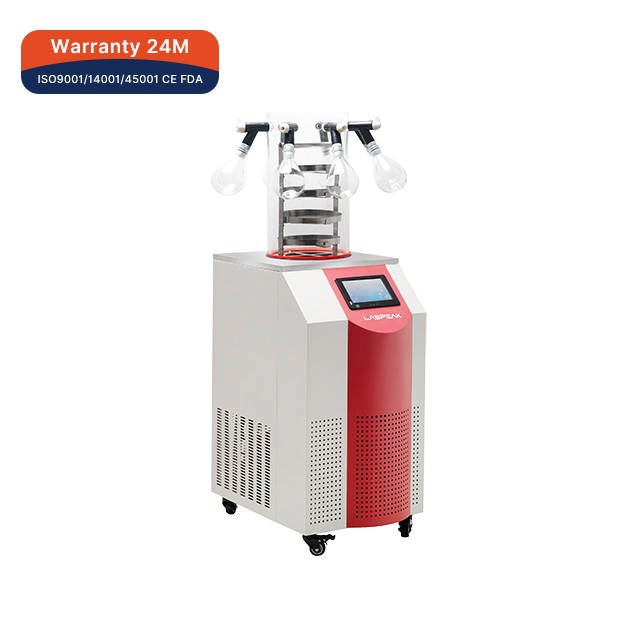

- Type [FDL-P12PT]: Stoppering chamber with 8 port manifold
- Freeze Drying Area (㎡) [FDL-P12S]: 0.12~0.18
- Freeze Drying Area (㎡) [FDL-P12P]: 0.12~0.18
- Freeze Drying Area (㎡) [FDL-P12T]: 0.09
- Freeze Drying Area (㎡) [FDL-P12PT]: 0.09
- Tray (Qty) [FDL-P12S]: 4/6(Optional)pcs
- Tray (Qty) [FDL-P12P]: 4/6(Optional)pcs
- Tray (Qty) [FDL-P12T]: 3pcs
- Tray (Qty) [FDL-P12PT]: 3pcs
- Tray Size (DiameterxH)(mm) [FDL-P12S]: Φ200×20
- Tray Size (DiameterxH)(mm) [FDL-P12P]: Φ200×20
- Tray Size (DiameterxH)(mm) [FDL-P12T]: Φ200×20
- Tray Size (DiameterxH)(mm) [FDL-P12PT]: Φ200×20
- Height Between Trays (mm) [FDL-P12S]: 76/50
- Height Between Trays (mm) [FDL-P12P]: 76/50
- Height Between Trays (mm) [FDL-P12T]: 70(average)
- Height Between Trays (mm) [FDL-P12PT]: 70(average)
- Condenser Temperature (℃) [FDL-P12S]: 0.75
- Condenser Temperature (℃) [FDL-P12P]: 0.75
- Condenser Temperature (℃) [FDL-P12T]: 0.75
- Condenser Temperature (℃) [FDL-P12PT]: 0.75
- Condenser Capacity (L) [FDL-P12S]: 9.5
- Condenser Capacity (L) [FDL-P12P]: 9.5
- Condenser Capacity (L) [FDL-P12T]: 9.5
- Condenser Capacity (L) [FDL-P12PT]: 9.5
- Condenser Size (DiameterxH)(mm) [FDL-P12S]: Φ217×250
- Condenser Size (DiameterxH)(mm) [FDL-P12P]: Φ217×250
- Condenser Size (DiameterxH)(mm) [FDL-P12T]: Φ217×250
- Condenser Size (DiameterxH)(mm) [FDL-P12PT]: Φ217×250
- Vacuum Degree (No-loading) (Pa) [FDL-P12S]: ≤5
- Vacuum Degree (No-loading) (Pa) [FDL-P12P]: ≤5
- Vacuum Degree (No-loading) (Pa) [FDL-P12T]: ≤5
- Vacuum Degree (No-loading) (Pa) [FDL-P12PT]: ≤5
- Ice Condenser Capacity (kg/24h) [FDL-P12S]: 4
- Ice Condenser Capacity (kg/24h) [FDL-P12P]: 4
- Ice Condenser Capacity (kg/24h) [FDL-P12T]: 4
- Ice Condenser Capacity (kg/24h) [FDL-P12PT]: 4
- Loading Capacity/Shelf (mL) [FDL-P12S]: 300
- Loading Capacity/Shelf (mL) [FDL-P12P]: 300
- Loading Capacity/Shelf (mL) [FDL-P12T]: 300
- Loading Capacity/Shelf (mL) [FDL-P12PT]: 300
- Total Loading Capacity (mL) [FDL-P12S]: 1200~1800
- Total Loading Capacity (mL) [FDL-P12P]: 1200~1800
- Total Loading Capacity (mL) [FDL-P12T]: 900
- Total Loading Capacity (mL) [FDL-P12PT]: 900
- Drying Chamber Size (Standard): Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm
- Total Qty. of Vial Φ22 [FDL-P12S]: 260
- Total Qty. of Vial Φ22 [FDL-P12P]: 260
- Total Qty. of Vial Φ22 [FDL-P12T]: 195
- Total Qty. of Vial Φ22 [FDL-P12PT]: 195
- Total Qty. of Vial Φ16 [FDL-P12S]: 480
- Total Qty. of Vial Φ16 [FDL-P12P]: 480
- Total Qty. of Vial Φ16 [FDL-P12T]: 360
- Total Qty. of Vial Φ16 [FDL-P12PT]: 360
- Total Qty. of Vial Φ12 [FDL-P12S]: 920
- Total Qty. of Vial Φ12 [FDL-P12P]: 920
- Total Qty. of Vial Φ12 [FDL-P12T]: 690
- Total Qty. of Vial Φ12 [FDL-P12PT]: 690
- Refrigerant: CFC-free
- Standard Accessories: Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover(for all modes)
- Standard Accessories: Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs(only for model 12P/PT)
- Optional Function & Accessories: Electric defrost function, nitrogen gas filling valve, oil mist filter (for all models)
- Optional Function & Accessories: 800mL wide-mouth flask (only for model 12P/PT)
- Consumption: 0.95kW(-60℃)/1.5kW(-80℃)
- Electricity: AC220V, 50Hz (standard); other electricity type can be customized
- External Size(WxDxH)(mm) [UNVERIFIED — 2 values, 4 models, check manually]: 480x610x905/1355 | 480x610x905/1415
- Shipping Size (WxDxH) Main Body: 730x600x1180mm
- Drying Chamber: 410x410x640mm
- Vacuum Pump: 220x580x370mm
- Gross Weight: 135 kg (-60°C)/155 kg (-80°C)
- Stopper chamber [UNVERIFIED — 2 values, 4 models, check manually]: Standard stopper with 8 port manifolds | Standard chamber with 8 manifolds
- Standard chamber [UNVERIFIED — 2 values, 4 models, check manually]: Stainless steel with 8 port manifolds | Valve and freeze drying bottle
- Lsolation valve [UNVERIFIED — 2 values, 4 models, check manually]: 24 EA drying shelf | Stainless steel drying chamber
