LABPEAKBiological Safety Cabinets & Laminar Flow

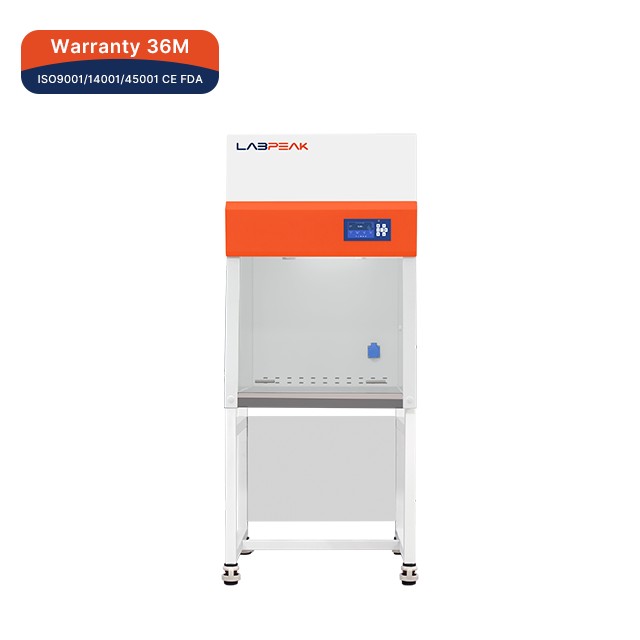

Vertical Laminar Flow Cabinet LCB-V-LP800
Laminar flow cabinets provide controlled work surfaces for applications that require a sterile work environment, ensuring that contaminants are prevented from entering through continuous filtered airflow.
Specifications
- Model
- LCB-V-LP800
- Wind Speed Range
- 0.2-0.5 m/s, speed adjustable
- Airflow Direction
- Vertical
- Internal Size (W×D×H) (mm)
- 610x590x625
Full specification sheet
- Model: LCB-V-LP800
- External Size (WxDxH)(mm): 710x680x1050 (Without Base Stand)
- External Size (WxDxH)(mm): 710x680x1680 (With Base Stand)
- Internal Size (WxDxH)(mm): 610x590x625
- Work Surface Height: 750mm
- Control System Display: Microprocessor controller with LCD display, display the operating status of each function
- Interlock: Front sliding sash interlock with fan and UV lamp
- Life Indicator: HEPA filter and UV life indicators facilitate a timely replacement plan
- Airflow System Airflow Velocity: 0.2~0.5m/s, Speed adjustable
- Air filtration System Pre-Filter: 1pcs, polyester fiber, washable
- HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Cleanliness Grade: ISO Class 5 (formerly Class 100)
- Partial air circulation: Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
- Cabinet Construction Main Body: Electro-Galvanized steel with antimicrobial powder coating
- Work Surface: 304 stainless steel, an angled front, rounded work surface front edge
- Front Window: Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
- Side window: 5 mm UV resistant tempered glass
- Electrical System UV Lamp: 8W×1
- Electrical System: With timing function from 0 to 999 minutes
- Electrical System: Interlock with front sliding sash.
- Electrical System: Emission of 253.7 nanometers for best sterilization effect.
- LED Lamp: 8W×1
- Consumption: 160W (Not include socket loading power consumption)
- Power Supply: AC220V±10%, 50/60 Hz; 110V±10%, 60Hz
- Illumination: ≥500 Lux
- Sound Emission: ≤62 dB(A)
- Standard Accessory: 1. LED Lamp×1; 2. UV Lamp×1; 3. Waterproof Socket × 1; 4. Air Velocity Sensor.
- Optional Accessory: 1. Base stand; 2. Gas Tap
- Net Weight: 80kg (Without base stand), 130kg (With base stand)
- Gross Weight: 115kg (Without base stand), 165kg (With base stand)
- Shipping Size (W×D×H)(mm): 920x855x1190
- Shipping Volume: 0.94m³
