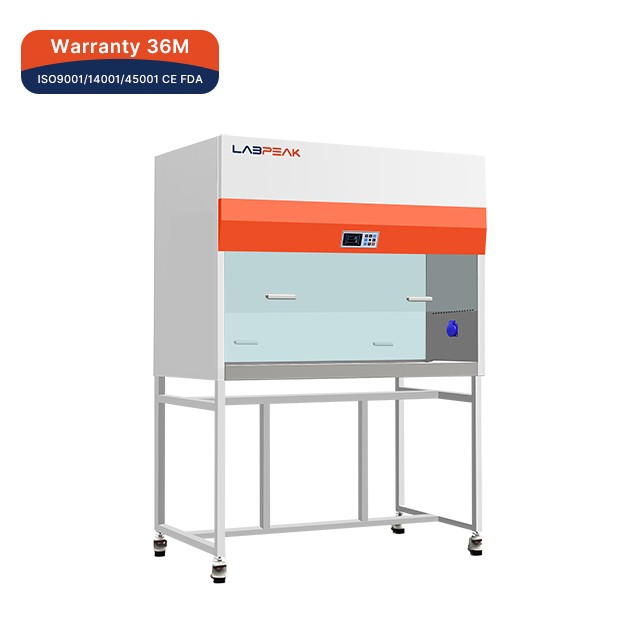

Vertical Laminar Flow Cabinet, Double Sides
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.

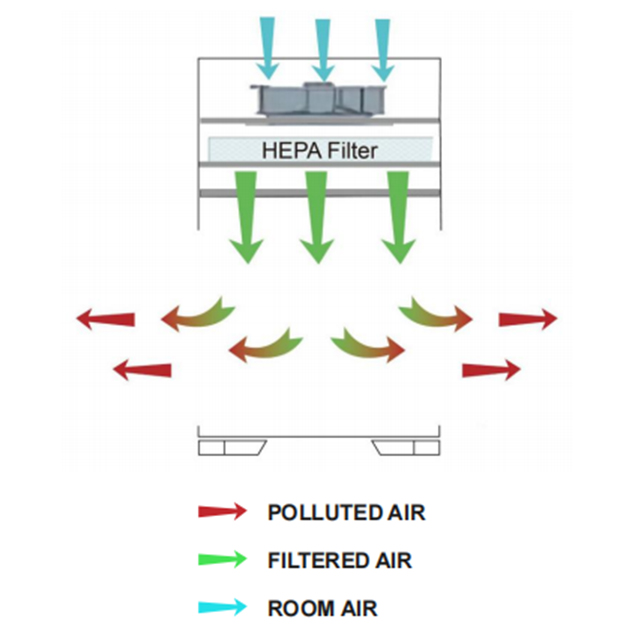

The double sided vertical laminar flow cabinet ensures sample protection by directing purified air through the working area in a vertical, unidirectional flow, exiting through the open front of the cabinet. Its double-sided design allows for more convenient operation by multiple users simultaneously
Specifications
- Models
- LCB-V-LP1100D; LCB-V-LP1300D; LCB-V-LP1600D
- Max. Opening
- 450mm (Safety height is 400mm)
- External Size
- 3 ft / 4 ft / 5 ft
- Sound Emission
- ≤65dB(A)
- Airflow Velocity
- 0.2~0.5m/s, speed adjustable
- Work Surface Height
- 750mm
Full specification sheet
- Model [LCB-V-LP1100D]: LCB-V-LP1100D
- Model [LCB-V-LP1300D]: LCB-V-LP1300D
- Model [LCB-V-LP1600D]: LCB-V-LP1600D
- External Size (WxDxH)(mm) [LCB-V-LP1100D]: 1090×755×1850
- External Size (WxDxH)(mm) [LCB-V-LP1300D]: 1360×755×1850
- External Size (WxDxH)(mm) [LCB-V-LP1600D]: 1665x755x1850
- Internal Size (WxDxH)(mm) [LCB-V-LP1100D]: 950×650×620
- Internal Size (WxDxH)(mm) [LCB-V-LP1300D]: 1220×650×620
- Internal Size (WxDxH)(mm) [LCB-V-LP1600D]: 1525x650x620
- Max.Opening: 450mm (Safety height is 400mm)
- Work Surface Height: 750mm
- Control System: Microprocessor controller with LCD display, display the operating status of each function
- Airflow System Airflow Velocity: 0.2~0.5m/s, speed adjustable
- Air filtration System Pre-Filter: 1pcs, polyester fiber, washable
- HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Cleanliness Grade: ISO Class 5 (formerly Class 100)
- Cabinet Construction Main Body: Electro-galvanized steel with antimicrobial powder coating
- Work Surface: 304 Stainless steel
- Front Window: Manual Sliding Sash: 5 mm UV Resistant tempered glass with counter-balance system and ergonomic handle
- Electrical System [UNVERIFIED — 4 values, 3 models, check manually]: UV Lamp | 20W×1 | 30W×1 | 30W×1
- Electrical System: With timing function, Interlock with front sliding sash.
- Electrical System: Emission of 253.7 nanometers for best sterilization effect.
- LED Lamp [LCB-V-LP1100D]: 6.5W×1
- LED Lamp [LCB-V-LP1300D]: 9.6W×1
- LED Lamp [LCB-V-LP1600D]: 9.6W×1
- Consumption [LCB-V-LP1100D]: 155W
- Consumption [LCB-V-LP1300D]: 285W
- Consumption [LCB-V-LP1600D]: 285W
- Consumption: Not include socket loading power consumption
- Power Supply: AC220V±10%, 50/60 Hz; 110V±10%, 60Hz
- Illumination: ≥900 Lux
- Sound Emission: ≤65dB(A)
- Standard Accessory: 1. Base Stand; 2. LED Lamp×1; 3. UV Lamp×1; 4. Waterproof Socket×2; 5. Footmaster Caster
- Optional Accessory: Air velocity sensor
- Net Weight (kg) [LCB-V-LP1100D]: 180
- Net Weight (kg) [LCB-V-LP1300D]: 220
- Net Weight (kg) [LCB-V-LP1600D]: 260
- Gross Weight (kg) [LCB-V-LP1100D]: 230
- Gross Weight (kg) [LCB-V-LP1300D]: 275
- Gross Weight (kg) [LCB-V-LP1600D]: 320
- Shipping Size (W×D×H)(mm) [LCB-V-LP1100D]: 1220×880×1395
- Shipping Size (W×D×H)(mm) [LCB-V-LP1300D]: 1490×880×1395
- Shipping Size (W×D×H)(mm) [LCB-V-LP1600D]: 1795x880x1395
- Shipping Volume (m³) [LCB-V-LP1100D]: 1.5
- Shipping Volume (m³) [LCB-V-LP1300D]: 1.8
- Shipping Volume (m³) [LCB-V-LP1600D]: 2.2
