Vertical Laminar Flow Cabinet, Touch Screen

Specifications

Model

LCB-V-LP800I; LCB-V-LP1100I; LCB-V-LP1300I; LCB-V-LP1500I; LCB-V-LP1800I

Max Opening

300 mm

Airflow Velocity

0.3-0.5m/s, speed adjustable

Work Surface Height

730 mm

Full specification sheet

• Model [LCB-V-LP800I]: LCB-V-LP800I
• Model [LCB-V-LP1100I]: LCB-V-LP1100I
• Model [LCB-V-LP1300I]: LCB-V-LP1300I
• Model [LCB-V-LP1500I]: LCB-V-LP1500I
• Model [LCB-V-LP1800I]: LCB-V-LP1800I
• External Size (W×D×H)(mm) [LCB-V-LP800I]: 800×750×1870
• External Size (W×D×H)(mm) [LCB-V-LP1100I]: 1100×750×1870
• External Size (W×D×H)(mm) [LCB-V-LP1300I]: 1300×750×1870
• External Size (W×D×H)(mm) [LCB-V-LP1500I]: 1500×750×1870
• External Size (W×D×H)(mm) [LCB-V-LP1800I]: 1800×750×1870
• Internal Size (W×D×H)(mm) [LCB-V-LP800I]: 700×660×560
• Internal Size (W×D×H)(mm) [LCB-V-LP1100I]: 1000×660×560
• Internal Size (W×D×H)(mm) [LCB-V-LP1300I]: 1200×660×560
• Internal Size (W×D×H)(mm) [LCB-V-LP1500I]: 1400×660×560
• Internal Size (W×D×H)(mm) [LCB-V-LP1800I]: 1700×660×560
• Max Opening: 300 mm
• Work Surface Height: 730 mm
• Control System Display: LCD touch screen
• Alarm: Audio and visual alarm (abnormal airflow velocity, HEPA filter failure, UV lamp failure, front window at unsafe height)
• Airflow System Airflow Velocity: 0.3-0.5m/s, speed adjustable
• Air Volume [LCB-V-LP800I]: 794 m³/h (467CFM)
• Air Volume [LCB-V-LP1100I]: 1134 m³/h (667CFM)
• Air Volume [LCB-V-LP1300I]: 1361 m³/h (801CFM)
• Air Volume [LCB-V-LP1500I]: 1588 m³/h (934CFM)
• Air Volume [LCB-V-LP1800I]: 1928 m³/h (1135CFM)
• Air filtration System Pre-Filter: 1pcs, polyester fiber, washable, filtration efficiency: G3
• HEPA Filter: 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
• Cleanliness Grade: ISO Class 5 (formerly Class 100)

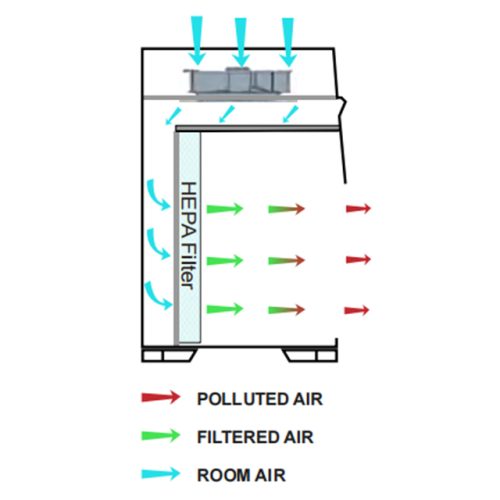

• Partial air circulation: Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
• Cabinet Construction Main Body: Electro-Galvanized steel with antimicrobial powder coating
• Work Surface: 304 Stainless Steel
• Front Window: Automatic motorized door, tempered glass, Thickness: 5mm
• Side window: 5 mm UV resistant tempered glass
• Electrical System [UNVERIFIED — 4 values, 5 models, check manually]: UV Lamp | 8W×1 (Emission of 253.7 nanometers for best sterilization effect) | 30W×1 (Emission of 253.7 nanometers for best sterilization effect) | 40W×1 (Emission of 253.7 nanometers for best sterilization effect)
• LED Lamp [UNVERIFIED — 3 values, 5 models, check manually]: 8 W×1 | 10 W×1 | 20 W×1
• Max.Consumption [UNVERIFIED — 3 values, 5 models, check manually]: 350 W | 360 W (Not include socket loading power consumption) | 370 W
• Power Supply: AC220V±10%, 50/60HZ; 110V±10%, 60Hz
• Illumination: >580 Lux
• Sound Emission: <64 dB(A)
• Standard Accessory: 1. Air Velocity Sensor × 1; 2. Pre-Filter×1; 3. HEPA Filter×1; 4. Waterproof Socket × 2; 5. 5. LED Lamp×1; 6. UV Lamp×1; 7. Base Stand.
• Optional Accessory: 1. Foot Switch; 2. Gas Tap; 3. Differential Pressure Sensor; 4. ULPA Filter; 5. Manually Adjustable Base Stand; 6. Upgraded LED Lamp
• Gross Weight (kg) [LCB-V-LP800I]: 190
• Gross Weight (kg) [LCB-V-LP1100I]: 220
• Gross Weight (kg) [LCB-V-LP1300I]: 250
• Gross Weight (kg) [LCB-V-LP1500I]: 280
• Gross Weight (kg) [LCB-V-LP1800I]: 300
• Shipping Size (W×D×H)(mm) [LCB-V-LP800I]: 950×1050×1620
• Shipping Size (W×D×H)(mm) [LCB-V-LP1100I]: 1250×1050×1620
• Shipping Size (W×D×H)(mm) [LCB-V-LP1300I]: 1450×1050×1620
• Shipping Size (W×D×H)(mm) [LCB-V-LP1500I]: 1650×1050×1620
• Shipping Size (W×D×H)(mm) [LCB-V-LP1800I]: 1950×1050×1620
• Shipping Volume (m³) [LCB-V-LP800I]: 1.7
• Shipping Volume (m³) [LCB-V-LP1100I]: 2.2
• Shipping Volume (m³) [LCB-V-LP1300I]: 2.4
• Shipping Volume (m³) [LCB-V-LP1500I]: 2.9
• Shipping Volume (m³) [LCB-V-LP1800I]: 3.4
