LABPEAKIncubators & Ovens

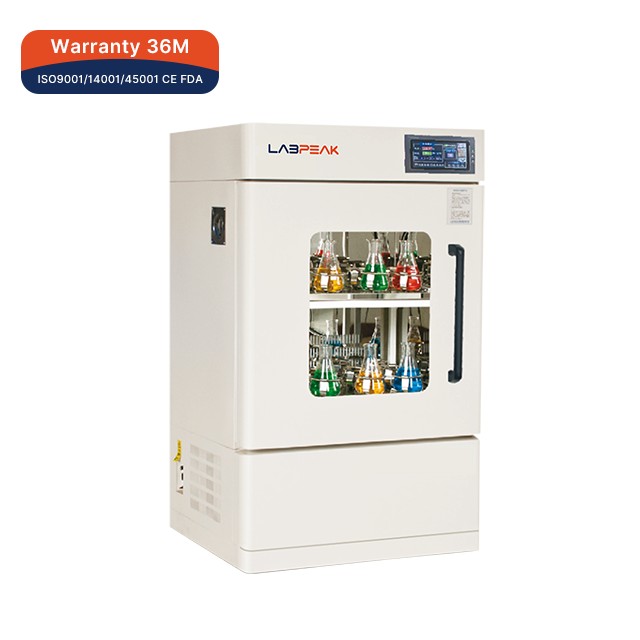

Vertical Single Door Shaking Incubator
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- ICBL-P220VS; ICBL-P220VSI; ICBL-P220VSP; ICBL-P220VSIP
- Display
- LCD display; 7-inch touch screen
- Controller
- PID
- Capacity (L)
- 220 L
- Shaking Mode
- Cyclotron oscillation
- Circulation Mode
- Forced convection
Full specification sheet
- Model [ICBL-P220VS]: ICBL-P220VS
- Model [ICBL-P220VSI]: ICBL-P220VSI
- Model [ICBL-P220VSP]: ICBL-P220VSP
- Model [ICBL-P220VSIP]: ICBL-P220VSIP
- Display LCD display: 7-inch touch screen
- Controller: PID
- Circulation Mode: Forced convection
- Shaking Mode: Cyclotron oscillation
- Capacity (L): 220L
- Temperature Range (℃) [ICBL-P220VS]: RT+5~65℃
- Temperature Range (℃) [ICBL-P220VSI]: 4~65℃
- Temperature Range (℃) [ICBL-P220VSP]: RT+5~65°C
- Temperature Range (℃) [ICBL-P220VSIP]: 4~65°C
- Temperature Accuracy (℃): ±0.1℃
- Temperature Uniformity (℃): ±0.5℃(at 37℃)
- Cyclotron Frequency Range (rpm): 20-350 (rpm)(To do static culture)
- Cyclotron Frequency Sensitivity (rpm): ±1
- Orbit Range (mm): Φ26
- Refrigerant [ICBL-P220VS]: /
- Refrigerant [ICBL-P220VSI]: Environmentally friendly refrigerant
- Refrigerant [ICBL-P220VSP]: /
- Refrigerant [ICBL-P220VSIP]: Environmentally friendly refrigerant
- Timer [UNVERIFIED — 2 values, 4 models, check manually]: 0-9999h/min (Any time, continuous duty) | 0-999.9h (Any time, continuous duty)
- Standard Capacity: Clamp flask: 250 mL× 48
- Max. Capacity: Clamp flask: 100mL×68 or 250mL×50 or 500mL×32 or 1000mL×18
- Auxiliary Function: Ultra-low speed start. Adjustable start speed. Overspeed auto-protection. Watch dog timer. Parameter storage. Encryption parameters. Electricity incoming recovery. Refrigeration unit overload protection.
- Auxiliary Function: Sound and light alarm when upper and lower over-temperature. Function of lighting (Standard) and UV disinfection (optional). Automatically stop when opening the door.
- External and Internal Material: Internal: Stainless steel
- External and Internal Material: External: Cold rolled steel electrostatic spraying exterior
- Number of Platforms: 2
- Power Supply: AC220V±10%, 50/60Hz; 110V, 60Hz
- Consumption [ICBL-P220VS]: 600W
- Consumption [ICBL-P220VSI]: 850W
- Consumption [ICBL-P220VSP]: 600W
- Consumption [ICBL-P220VSIP]: 850W
- Size(W×D×H)(mm): 700×710×1320
- Shipping Size (W×D×H)(mm): 850×830×1480
- G.W. (kg): 240
