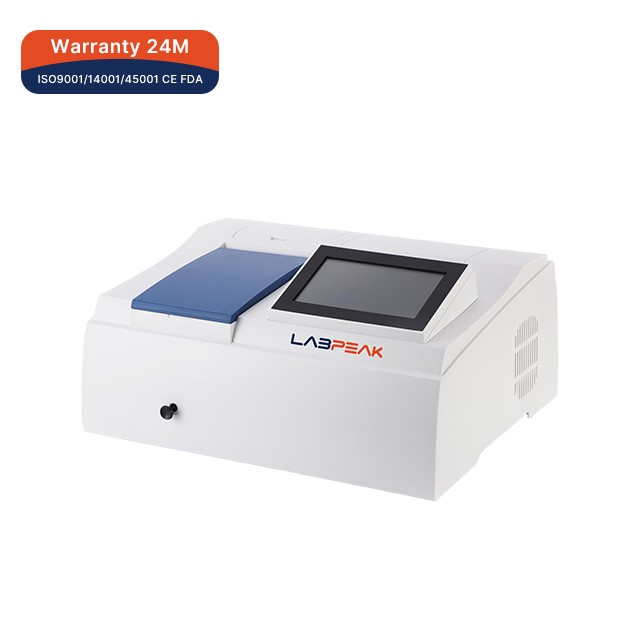

Visible Spectrophotometer, Single Beam

Specifications

Models

SPL-PV2; SPL-PV2S

Grating

1200 lines/mm

Detector

Silicon Photocell

Photometry

Single Beam

Focal Length

160 mm

Spectrum Bandwidth

2.0 nm

Full specification sheet

• Model [SPL-PV2S]: SPL-PV2S
• Model [SPL-PV2]: SPL-PV2
• Photometry: Single Beam
• Monochromator Type: Czerny-Turner
• Focal Length: 160 mm
• Grating: 1200 lines/mm
• Detector: Silicon Photocell
• Spectrum Bandwidth: 2 nm
• Wavelength Setting: 7-inch color touch-screen
• Wavelength Range: 325-1100 nm
• Wavelength Accuracy: ±1 nm
• Wavelength Repeatability: ≤0.5 nm
• Scanning Speed: Fast-Medium-Slow
• Stray Light: ≤0.1% T (at 360 nm NaNo2)
• Photometric Range: 0.0-200.0% T;
• Photometric Range: -0.301-4.000 A;
• Photometric Range: 0.000-9999 C;
• Photometric Accuracy: ±0.5% T;
• Photometric Accuracy: ±0.004 Abs (0-0.5 A);
• Photometric Accuracy: ±0.008 Abs (0.5-1 A);
• Photometric Repeatability: ≤0.2% T;
• Photometric Repeatability: 0.002 Abs (0-0.5 A);
• Photometric Repeatability: 0.004 Abs (0.5-1 A);
• Noise: 100%(T) noise≤0.2%(T);
• Noise: 0%(T) noise≤0.1%(T);
• Power: AC 220±22 V, 50±1 Hz, 100 W
• Standard Accessories: Operation manual 1pc;
• Standard Accessories: Glass cuvette 10mm 4pcs;
• Standard Accessories: Power cable 1pc;
• Standard Accessories: Fuse 2pcs;
• Standard Accessories: Cuvette holder 10mm 1pc;
• Optional Accessories: UV WIN8 station pro software;
• Optional Accessories: Cuvette holder 50; 100 mm;
• Optional Accessories: Cuvette 20; 30; 50; 100 mm;
• External Size (W×D×H): 480×370×240 mm
• Shipping Size (W×D×H): 650×525×400 mm
• N.W/G.W. (kg) [SPL-PV2S]: 11.8 / 16.3
• N.W/G.W. (kg) [SPL-PV2]: 12/16.5
