LABPEAKSpectrophotometers & Colorimeters

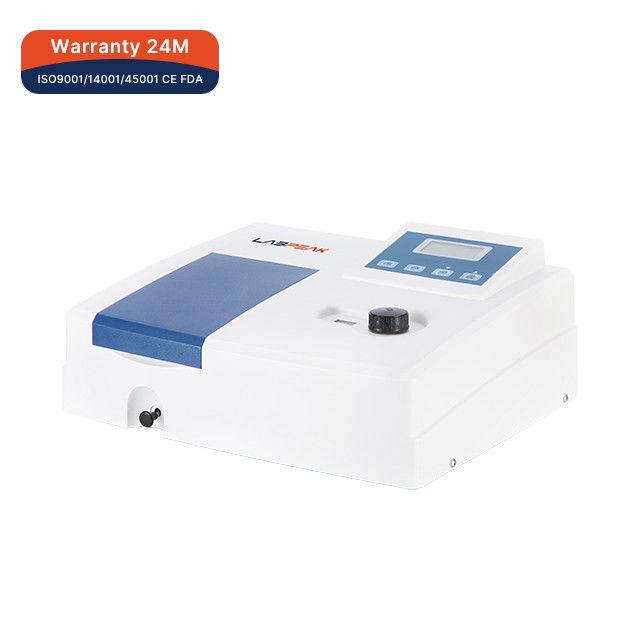

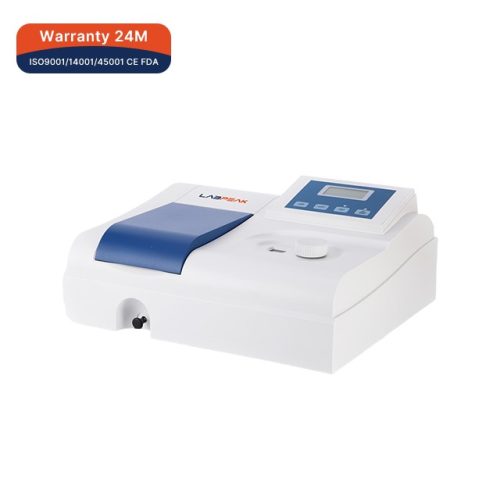

Visible Spectrophotometer, Spectrum Bandwidth 5nm
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Models
- SPL-PVG722; SPL-PVGI721; SPL-PVG721
- Wavelength Range
- 325-1000nm, 340-1000nm
- Size(W×D×H)(mm)
- 400x300x200
- Wavelength Accuracy
- ±2nm
- Photometric Accuracy
- ±0.5%T
Full specification sheet
- Model [SPL-PVG722]: SPL-PVG722
- Model [SPL-PVGI721]: SPL-PVGI721
- Model [SPL-PVG721]: SPL-PVG721
- Photometry: Single Beam
- Monochromator Type: Czerny-Turner
- Detector: Silicon Photocell
- Wavelength Setting: Manual Turn Knob
- Wavelength Range [UNVERIFIED — 2 values, 3 models, check manually]: 325-1000nm | 340-1000nm
- Wavelength Accuracy: ±2nm
- Wavelength Repeatability: ≤1nm
- Spectrum Bandwidth: 5nm
- Stray Light: ≤0.5%T (at 360nm NaNo2)
- Photometric Range: 0-100.0%T
- Photometric Range: 0-1.999A
- Photometric Range: 0-1999C
- Photometric Accuracy: ±0.5%T
- Photometric Repeatability: ≤0.2%T
- Noise: 100% (T) noise ≤0.3% (T), 0% (T) noise ≤0.2% (T)
- Drifting: ±0.5 %T/3min
- Cuvette Holder Size [SPL-PVG722]: 50mm
- Cuvette Holder Size [SPL-PVGI721]: 100mm
- Cuvette Holder Size [SPL-PVG721]: 50mm
- Power: AC220V±22V; 50Hz±1Hz, 50W
- Size(W×D×H)(mm): 400x300x200
- Shipping Size(W×D×H)(mm): 560x500x300
- N.W./G.W. (kg): 13/15
