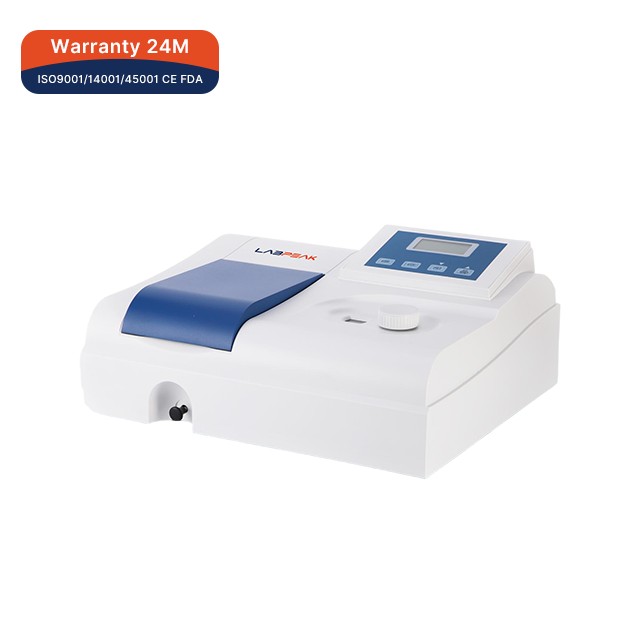

Visible Spectrophotometer, SPL-PVN721N
This visible spectrophotometer combines reliable performance with user-friendly operation. It supports both linear regression and coefficient methods for versatile concentration analysis. With a USB interface and built-in memory, it can store up to 30 calibration curves for efficient reuse. Designed
Specifications
- Model
- SPL-PVN721N
- Grating
- 1200 lines/mm
- Photometry
- Single Beam
- Focal Length
- 160 mm
- Wavelength Range
- 340-1100 nm
- Spectrum Bandwidth
- 2 nm
Full specification sheet
- Model: SPL-PVN721N
- Photometry: Single Beam
- Monochromator Type: Czerny-Turner
- Focal Length: 160 mm
- Grating: 1200 lines/mm
- Detector: Silicon Photocell
- Spectrum Bandwidth: 2 nm
- Wavelength Setting: Manual Turn Knob
- Wavelength Range: 340-1100 nm
- Wavelength Accuracy: ±2 nm
- Wavelength Repeatability: ≤1 nm
- Stray Light: ≤0.1% T (at 360 nm NaNO2 )
- Photometric Range: 0.0-100.0% T
- Photometric Range: 0.000-1.999 A
- Photometric Range: 0.000-9999 C
- Photometric Accuracy: ±0.5% T;
- Photometric Accuracy: ±0.004 Abs (0-0.5 A);
- Photometric Accuracy: ±0.008 Abs (0.5-1 A);
- Photometric Repeatability: ≤0.2% T;
- Photometric Repeatability: 0.002 Abs (0-0.5 A);
- Photometric Repeatability: 0.004 Abs (0.5-1 A);
- Noise: 100%(T) noise≤0.3%(T);
- Noise: 0%(T) noise≤0.2%(T);
- Power: AC 220±22 V, 50±1Hz, 80 W
- Standrad Accessories: Operation manual 1pc;
- Standrad Accessories: Glass cuvette 10mm 4pcs;
- Standrad Accessories: Fuse 2pcs;
- Standrad Accessories: Cuvette holder 10mm 1pc;
- Standrad Accessories: Power cable 1pc;
- Standrad Accessories: UV WIN8 Spectrum data processing software 1pc;
- Optional Accessories: Cuvette holder 50; 100 mm;
- Optional Accessories: Cuvette 20; 30; 50; 100 mm;
- External Size (W×D×H)(mm): 450×370×210
- Shipping Size (W×D×H)(mm): 555×485×285
- N.W/G.W.: 12/14 kg
