LABPEAKBiological Safety Cabinets & Laminar Flow

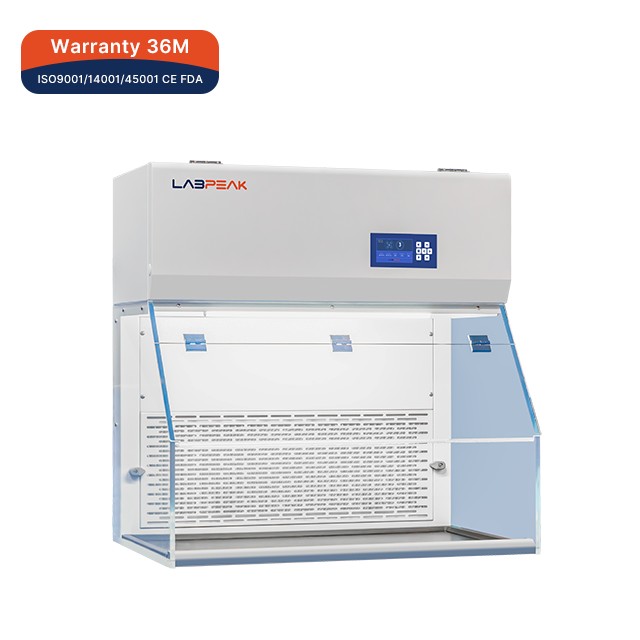

Weighing Hood, Class I Biological Safety Cabinet
This page covers multiple model variants. Specs below are attributed per model where confirmed — confirm your exact configuration before ordering.
Some spec rows on this product could not be confidently matched to a specific model — marked below as unverified. Confirm these directly before relying on them.
Specifications
- Model
- BSC-I-LPWH900; BSC-I-LPWH1300
- Display
- LCD display
- Air Volume
- 200–300 m³/h; 400–600 m³/h
- Average Air Velocity
- 0.3–0.45 m/s
Full specification sheet
- Model [BSC-I-LPWH900]: BSC-I-LPWH900
- Model [BSC-I-LPWH1300]: BSC-I-LPWH1300
- External Size (W×D×H)(mm) [BSC-I-LPWH900]: 900×620×880
- External Size (W×D×H)(mm) [BSC-I-LPWH1300]: 1300×620×880
- Internal Size (W×D×H)(mm) [BSC-I-LPWH900]: 880×520×600
- Internal Size (W×D×H)(mm) [BSC-I-LPWH1300]: 1280×520×600
- Control System [BSC-I-LPWH900]: Display
- Control System [BSC-I-LPWH1300]: Microprocessor controller with LCD display, display the operating status of each function
- Life Indicator: HEPA filter indicators facilitate a timely replacement plan
- Airflow System [BSC-I-LPWH900]: Average Air Velocity
- Airflow System [BSC-I-LPWH1300]: 0.3–0.45 m/s
- Air Volume (m³/h) [BSC-I-LPWH900]: 200–300
- Air Volume (m³/h) [BSC-I-LPWH1300]: 400–600
- Air Filtration System [UNVERIFIED — 3 values, 2 models, check manually]: HEPA Filter | 1pc H14 HEPA Filter | 2pc H14 HEPA Filter
- Cabinet Construction [BSC-I-LPWH900]: Front Panel
- Cabinet Construction [BSC-I-LPWH1300]: Electro-Galvanized steel with antimicrobial powder coating
- Front and Side Window: PMMA
- Work Surface: Solid physicochemical board, resistant to acid and alkali
- Work Surface: (Note: when use it as a balance weighing hood, please remove the work surface and put the cabinet on the Weighing table directly.)
- Electrical System [UNVERIFIED — 3 values, 2 models, check manually]: LED Lamp | 6.5 W × 1 | 9.6 W × 1
- Consumption (W) [BSC-I-LPWH900]: 45
- Consumption (W) [BSC-I-LPWH1300]: 75
- Power Supply: AC 220 V ± 10%, 50/60 Hz;
- Power Supply: AC 110 V ± 10%, 60 Hz.
- Sound Emission: ≤60 dB (A)
- Standard Accessory: Pre-filter;
- Standard Accessory: HEPA filter;
- Standard Accessory: LED lamp;
- Standard Accessory: Temperature and humidity sensor.
- Optional Accessory: Balance weighing table;
- Optional Accessory: Waste recycling device;
- Optional Accessory: Air velocity sensor;
- Optional Accessory: Filter life sensor;
- Optional Accessory: Gas concentration sensor;
- Optional Accessory: Active carbon filter.
- Net Weight (kg) [BSC-I-LPWH900]: 65
- Net Weight (kg) [BSC-I-LPWH1300]: 109
- Gross Weight (kg) [BSC-I-LPWH900]: 95
- Gross Weight (kg) [BSC-I-LPWH1300]: 150
- Shipping Size (W×D×H)(mm) [BSC-I-LPWH900]: 1030×750×1090
- Shipping Size (W×D×H)(mm) [BSC-I-LPWH1300]: 1430×750×1090
- Shipping Volume (m³) [BSC-I-LPWH900]: 0.9
- Shipping Volume (m³) [BSC-I-LPWH1300]: 1.2
